21013 - Toro 43cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) GEAR CASE ASSEMBLY 93-4073 Parts Diagram

43cm Recycler Walk-Behind Mower

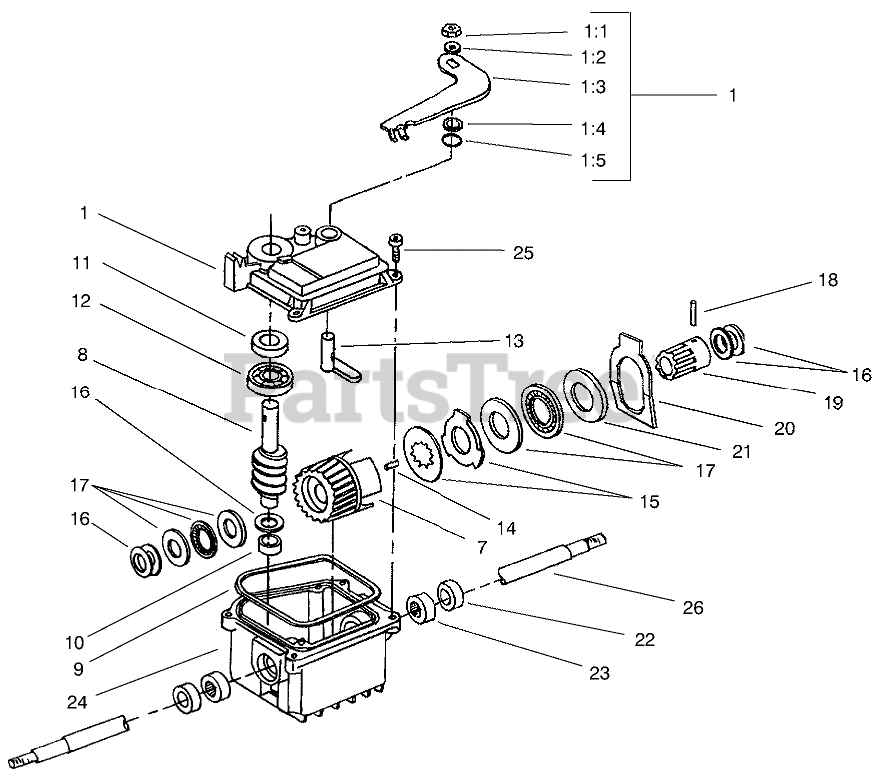

GEAR CASE ASSEMBLY 93-4073 Parts Diagram

  • Title
1

Toro 99-1735

TRANSMISSION COVER ASM.

$

$

Not available

1:1

$

$

Not available

1:2

Toro 99-1737

WASHER

$

$

Not available

1:3

Toro 99-1738

ARM-PIVOT

$

$

Not available

1:4

Toro 99-1739

WASHER

$

$

Not available

1:5

Toro 99-1740

"O" RING

$

$

Not available

7

Toro 99-1741

GEAR-WORM

$

$

Not available

8

Toro 99-1742

SHAFT WORM

$

$

Not available

9

Toro 99-1743

GASKET-TRANS. CASE

$

$

Not available

10

Toro 99-1744

BUSHING-WORM SHAFT

$

$

Not available

11

Toro 99-1745

SEAL-WORM SHAFT

$

$

Not available

12

Toro 99-1746

BEARING-WORM SHAFT

$

$

Not available

13

Toro 99-2519

ARM-PIVOT

$

$

Not available

14

Toro 99-1747

PIN-SPRING

$

$

Not available

15

Toro 99-1748

CLUTCH PLATE SET

$

$

Not available

16

Toro 99-1749

SPACER SET

$

$

Not available

17

Toro 99-2507

THRUST BEARING SET

$

$

Not available

18

Toro 99-2508

PIN-SPRING

$

$

Not available

19

Toro 99-2509

BUSHING-GEAR

$

$

Not available

20

Toro 99-2511

LEVER-CLUTCH

$

$

Not available

21

Toro 99-2512

Washer

$

$

Not available

22

Toro 99-2513

SEAL-DRIVE SHAFT

$

$

Not available

23

Toro 99-2514

BEARING-NEEDLE

$

$

Not available

24

Toro 99-2516

CASE-TRANSMISSION

$

$

Not available

25

Toro 99-2517

SCREW-COVER

$

$

Not available

26

Toro 99-2518

SHAFT-DRIVE

$

$

Not available
