21012 - Toro 43cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

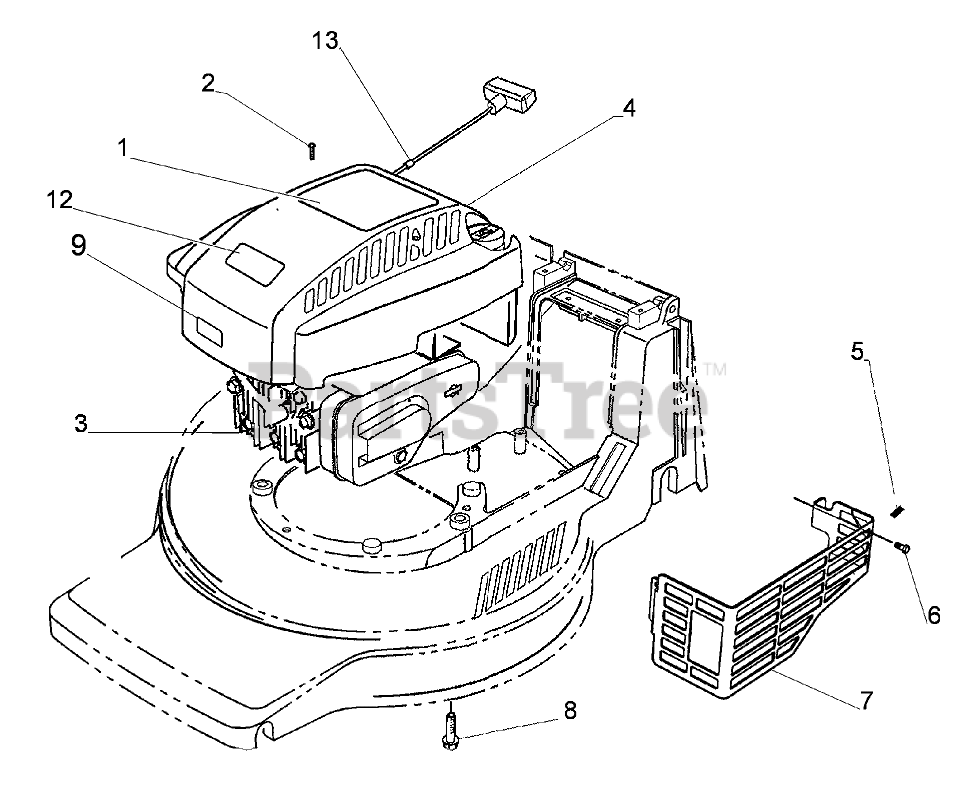

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-6838

Decal-Shroud

$

$

Currently unavailable

2

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

3

Engine Model 127802-1739-B1-A7096

$

$

Not available

4

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

7

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

12

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

13

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0
