21012 - Toro 43cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HANDLE ASSEMBLY Parts Diagram

43cm Recycler Walk-Behind Mower

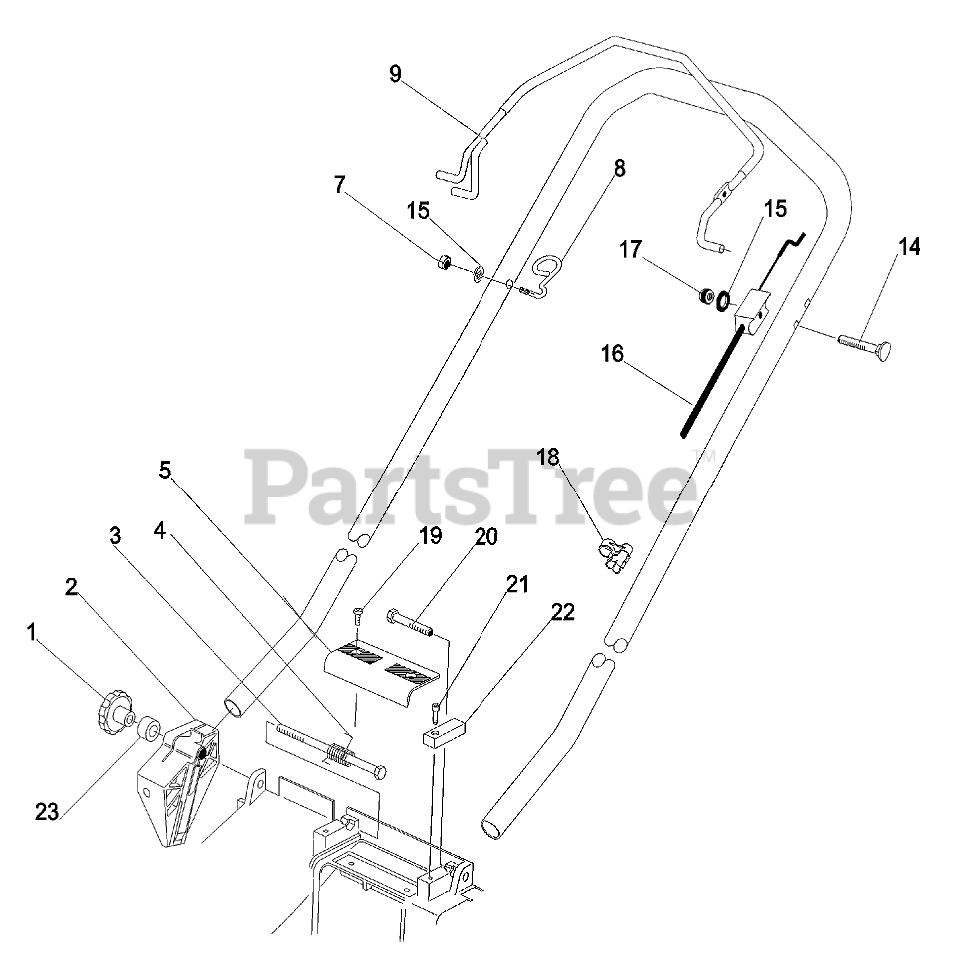

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$17.99

$

In Stock, only 2 left!

0

2

Toro 99-1710

MOUNT-HANDLE, RIGHT

$

$

Currently unavailable

Toro 99-1705

MOUNT-HANDLE, LEFT

Note: Not illustrated

$

$

Not available

3

Toro 93-4058

BOLT-LONG

$15.99

$

Usually ships in 3-6 days

0

4

Toro 93-4057

SPRING-DOOR

$

$

Not available

5

Toro 71-7860

GRIP-UPPER

$

$

Not available

6

Toro 20729

Handle

$

$

Currently unavailable

7

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

8

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, only 4 left!

0

9

Toro 98-1431

BAIL-BRAKE

$

$

Not available

14

Toro 19217

Screw
(Superseded to 95-6948)

$

$

Not available

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 99-1724

CABLE-BRAKE

$

$

Currently unavailable

17

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

18

Toro 93-4084

CLAMP-CABLE

$

$

Not available

19

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

20

Toro 93-4060

BOLT-SHORT

$

$

Not available

21

Toro 93-4094

SCREW-CAP, HINGE

$

$

Not available

22

Toro 93-4056

CAP-BOLT

$

$

Not available

23

Toro 99-1717

SPACER-MOUNT, HANDLE

$

$

Currently unavailable
