21012 - Toro 43cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 127802-1761-E1 Parts Diagram

43cm Recycler Walk-Behind Mower

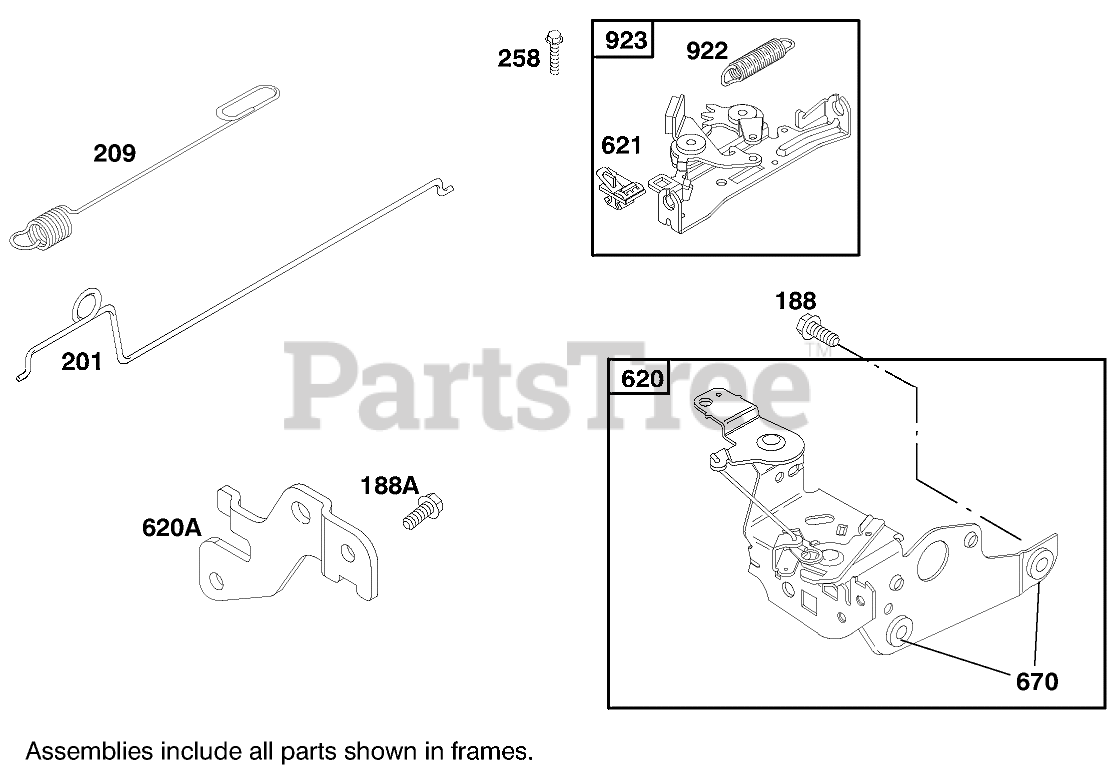

ENGINE BRIGGS & STRATTON MODEL 127802-1761-E1 Parts Diagram

  • Title

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

188A

Briggs & Stratton 94874

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

201

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263044

Governor Spring
(Superseded to 690319)

$8.49

$

In Stock, only 1 left!

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497837

Bracket-Control
(Superseded to 691436)

$33.99

$

In Stock, only 1 left!

0

620A

Briggs & Stratton 225152

"U" Bracket
(Superseded to 691223)

$14.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670

Briggs & Stratton 493823

Spacer

Note: Included in Gasket Set-Part No. 497316.

$6.49

$

In Stock, only 1 left!

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available
