21011 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower

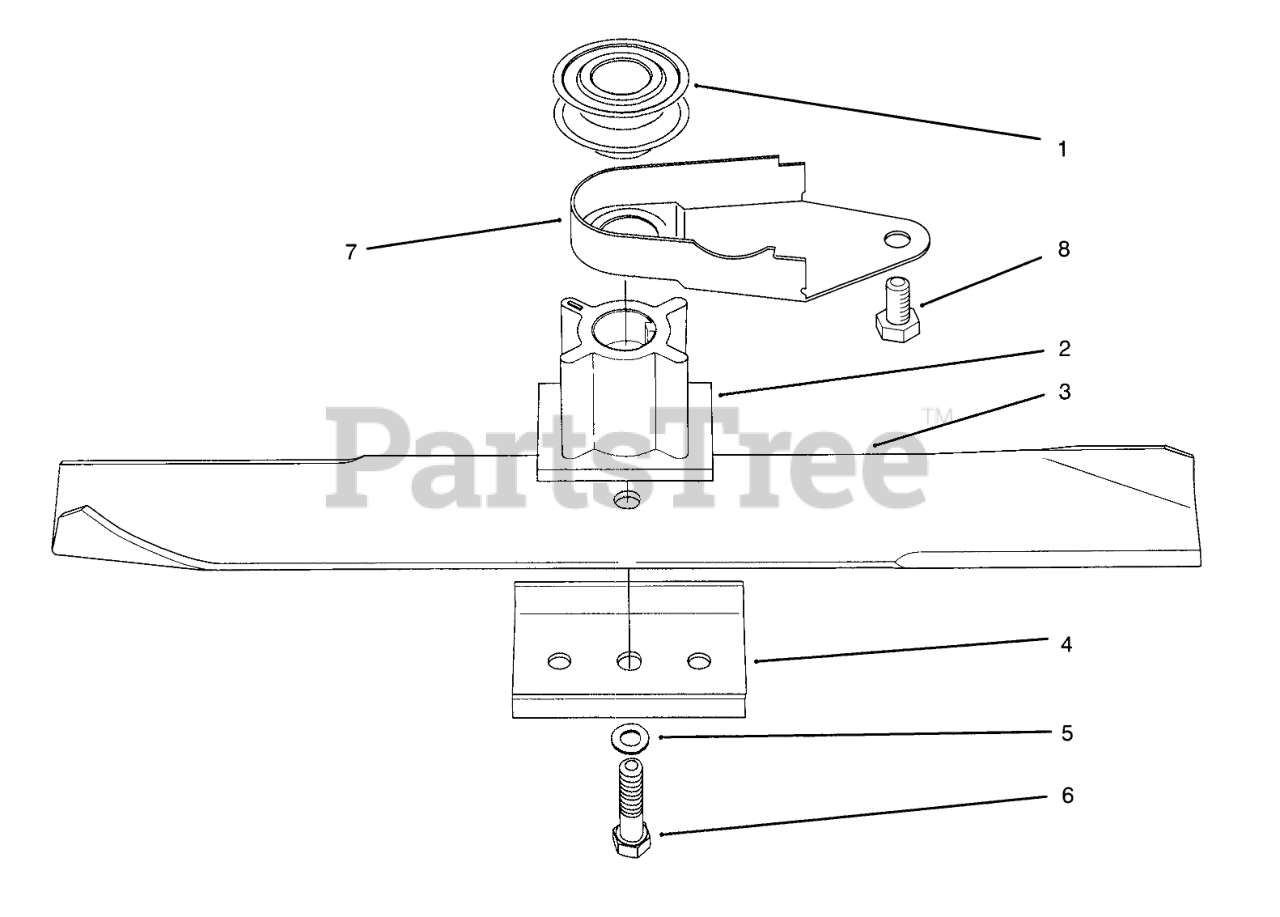

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

2

Toro 93-4091

RETAINER-BLADE

$

$

Not available

3

Toro 93-3760

Blade-43cm
(Superseded to 93-3760-03)

$

$

Not available

4

Toro 93-8731

STIFFENER - BLADE

$

$

Not available

5

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

6

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 93-8718

COVER-GUIDE, BELT

$

$

Not available

8

Toro 93-9837

SCREW-COVER, BELT

$

$

Not available
