21010 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) REAR AXLE ASSEMBLY Parts Diagram

Walk-Behind Mower

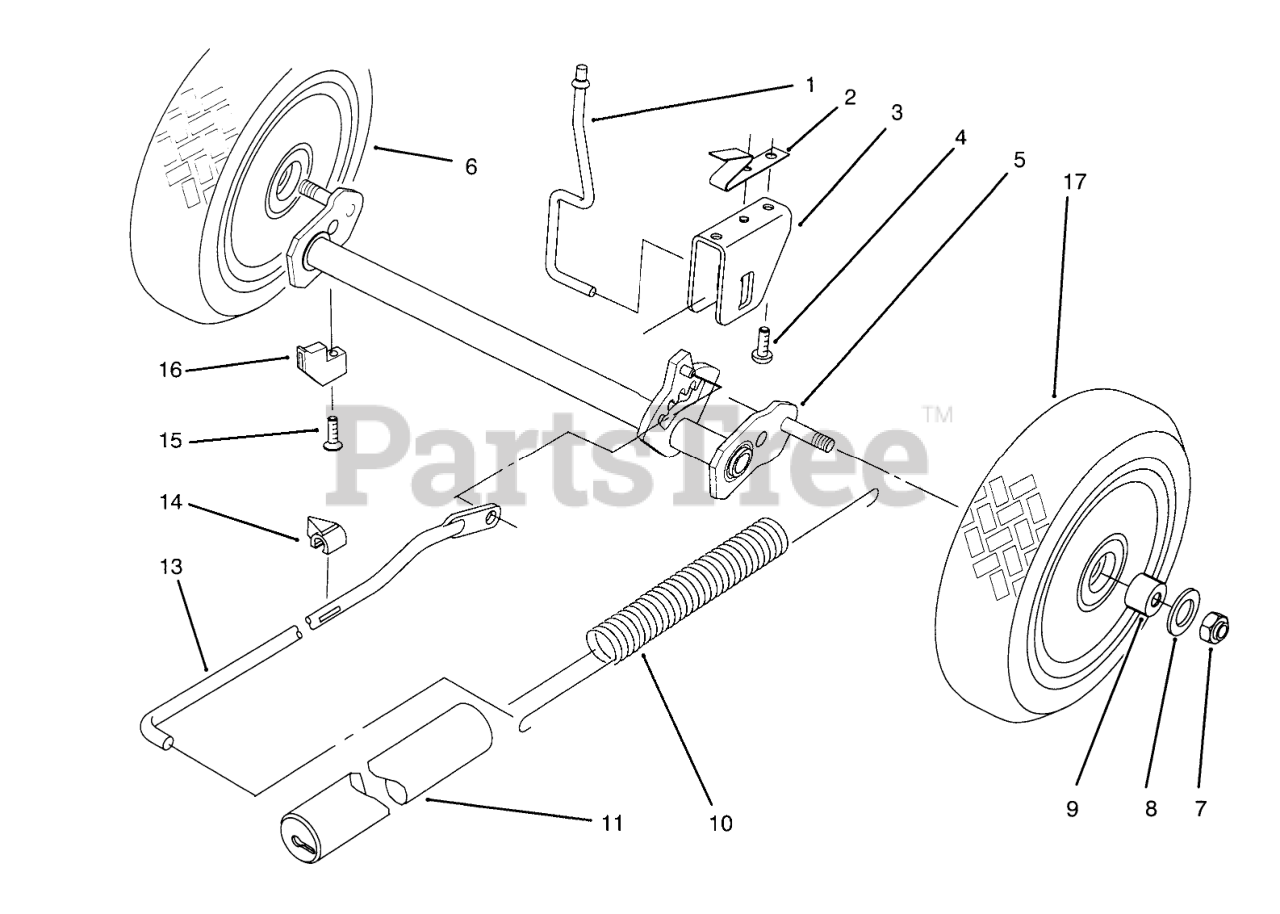

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4061

Rod-Trigger
(Superseded to 98-3232)

$

$

Not available

2

Toro 93-4062

SPRING-RETURN, TRIGGER

$6.49

$

Usually ships in 3-6 days

0

3

Toro 93-4066

SADDLE-HEIGHT OF CUT

$

$

Not available

4

Toro 93-4095

SCREW-RH

$

$

Not available

5

Toro 93-4079

AXLE-REAR

$115.99

$

Usually ships in 3-6 days

0

6

Toro 93-8492

WHEEL-REAR

$62.99

$

In Stock, only 1 left!

0

7

Toro 93-4098

NUT-HH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 93-4097

WASHER-WHEEL

$

$

Not available

9

Toro 93-7023

BUSHING

$4.49

$

Usually ships in 3-6 days

0

10

Toro 71-7740

SPRING-COUNTERBALANCE

$50.99

$

Usually ships in 3-6 days

0

11

Toro 71-8450

COVER-SPRING

$

$

Not available

13

Toro 93-4065

ROD-LINK

$

$

Not available

14

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$10.99

$

Usually ships in 3-6 days

0

15

Toro 93-3793

SCREW-RETAINER

$

$

Not available

16

Toro 93-4064

RETAINER - AXLE

$

$

Not available

17

Toro 93-9836

WHEEL-SMART, REAR

$

$

Not available
