21010 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

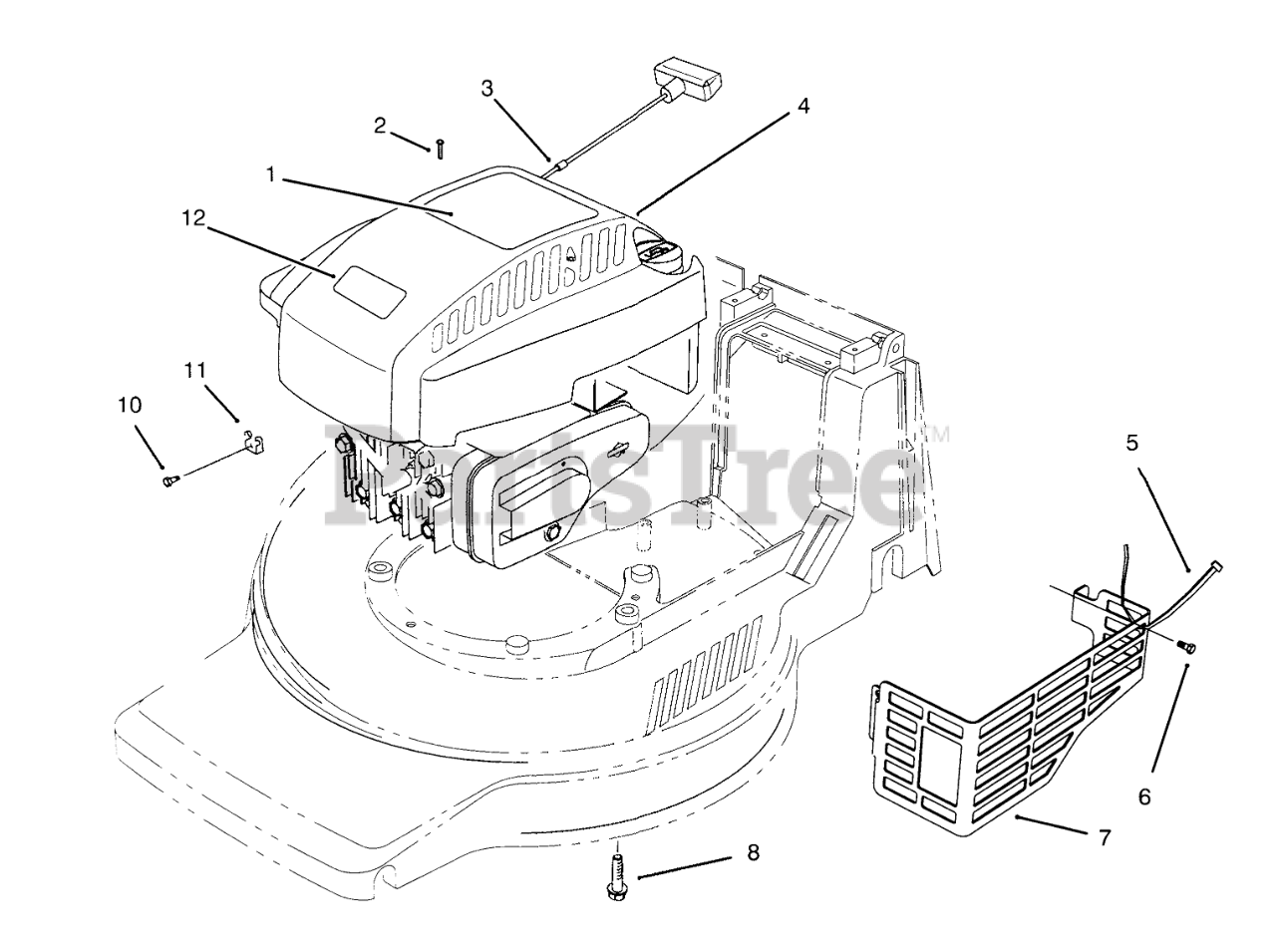

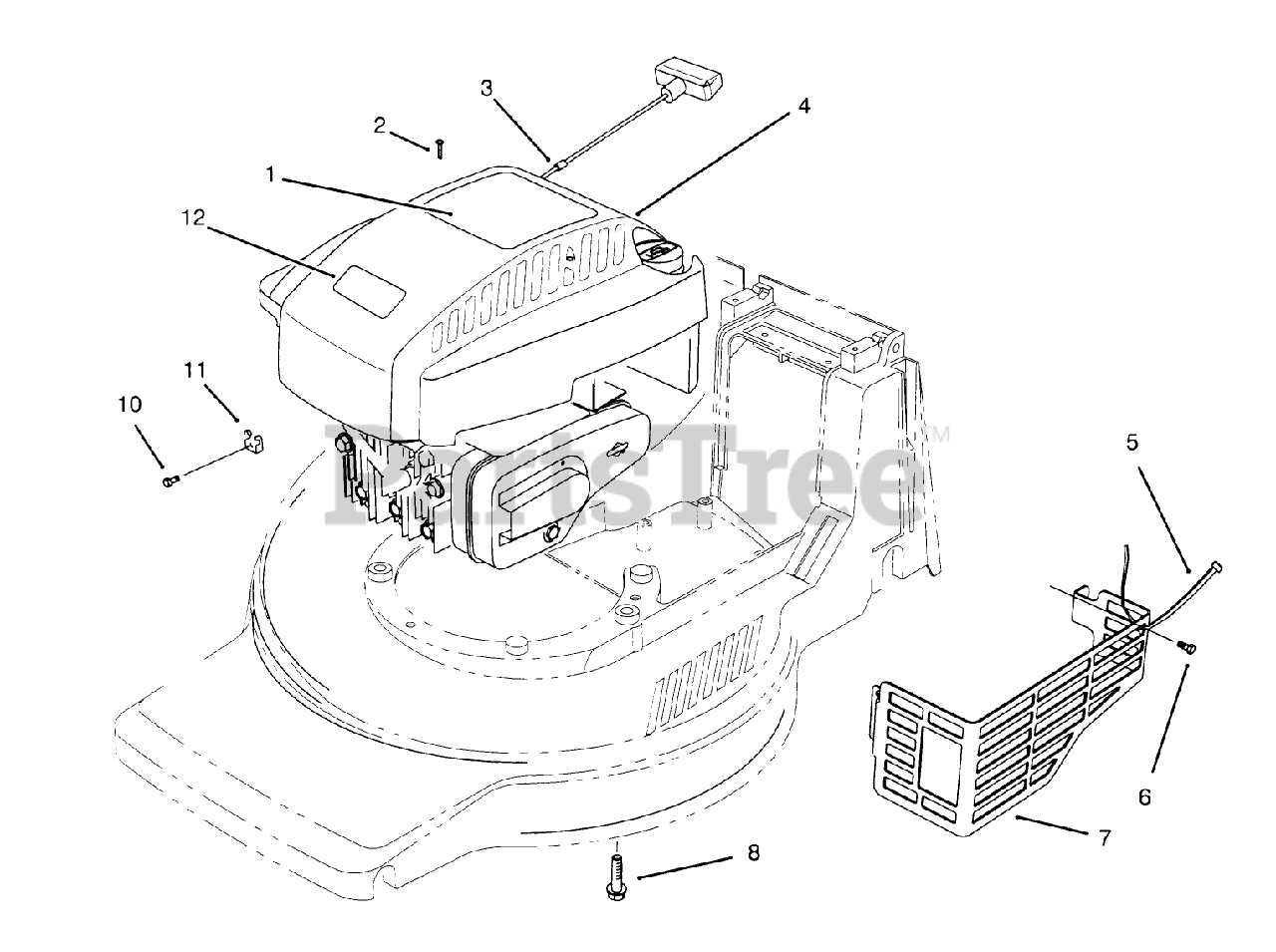

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4352

DECAL - SHROUD

$

$

Not available

2

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

3

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

4

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

7

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 93-8470

SCREW-CLAMP

$

$

Not available

11

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

12

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0
