21001 B - Toro 43cm Rear-Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HOUSING ASSEMBLY Parts Diagram

43cm Rear-Bagging Walk-Behind Mower

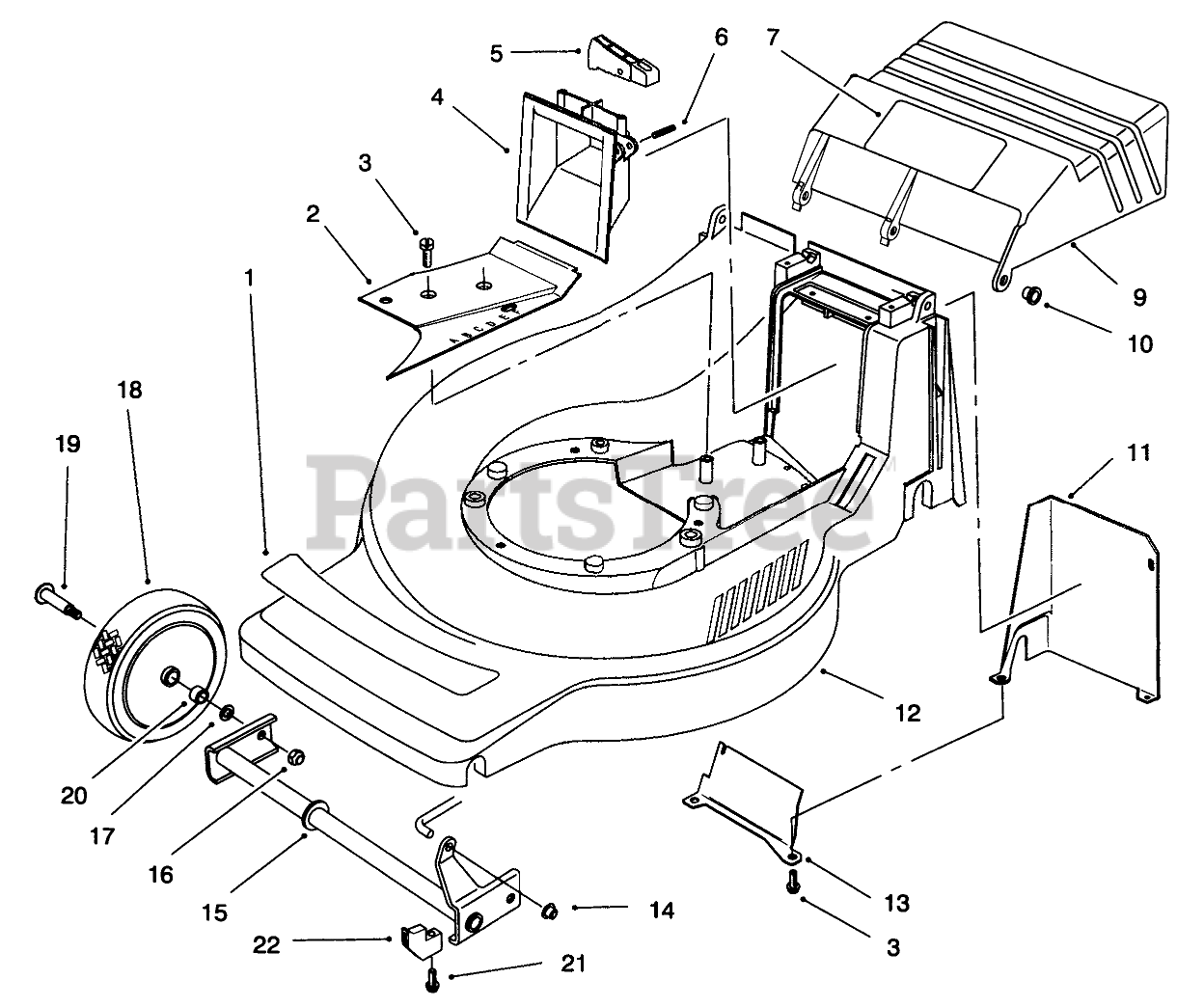

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7025

DECAL - DECK

Note: Obtain from Toro Europe N.V.

$

$

Not available

2

Toro 93-3782

COVER - BELT

Note: Obtain from Toro Europe N.V.

$

$

Not available

3

Toro 93-4095

SCREW-RH

$

$

Not available

4

Toro 71-7870

GRIP - LOWER

$

$

Not available

5

Toro 71-7930

TRIGGER - HOC

$

$

Not available

6

Toro 3284-5

PIN-SPIRAL

$

$

Not available

7

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

Note: Obtain from Toro Europe N.V.

$18.99

$

Usually ships in 3-6 days

0

9

Toro 93-4055

Door-Discharge
(Superseded to 99-1700)

Note: Obtain from Toro Europe N.V.

$

$

Not available

10

Toro 93-3794

BUSHING-DOOR

Note: Obtain from Toro Europe N.V.

$

$

Not available

11

Toro 93-3781

COVER - SHIELD
(Superseded to 98-1429)

Note: Obtain from Toro Europe N.V.

$

$

Not available

12

Toro 93-4053

HOUSING - 43 CM

Note: Obtain from Toro Europe N.V.

$

$

Not available

13

Toro 93-4110

BAFFLE-BAGGER, REAR

Note: Obtain from Toro Europe N.V.

$

$

Not available

14

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

15

Toro 93-4080

AXLE-FRONT

Note: Obtain from Toro Europe N.V.

$87.99

$

Usually ships in 3-6 days

0

16

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

17

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

18

Toro 93-4081

WHEEL-FRONT

Note: Obtain from Toro Europe N.V.

$

$

Not available

19

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

20

Toro 93-7024

BUSHING

Note: Obtain from Toro Europe N.V.

$4.49

$

Usually ships in 3-6 days

0

21

Toro 93-3793

SCREW-RETAINER

Note: Obtain from Toro Europe N.V.

$

$

Not available

22

Toro 93-4064

RETAINER - AXLE

Note: Obtain from Toro Europe N.V.

$

$

Not available
