21001 B - Toro 43cm Rear-Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) BLADE ASSEMBLY Parts Diagram

43cm Rear-Bagging Walk-Behind Mower

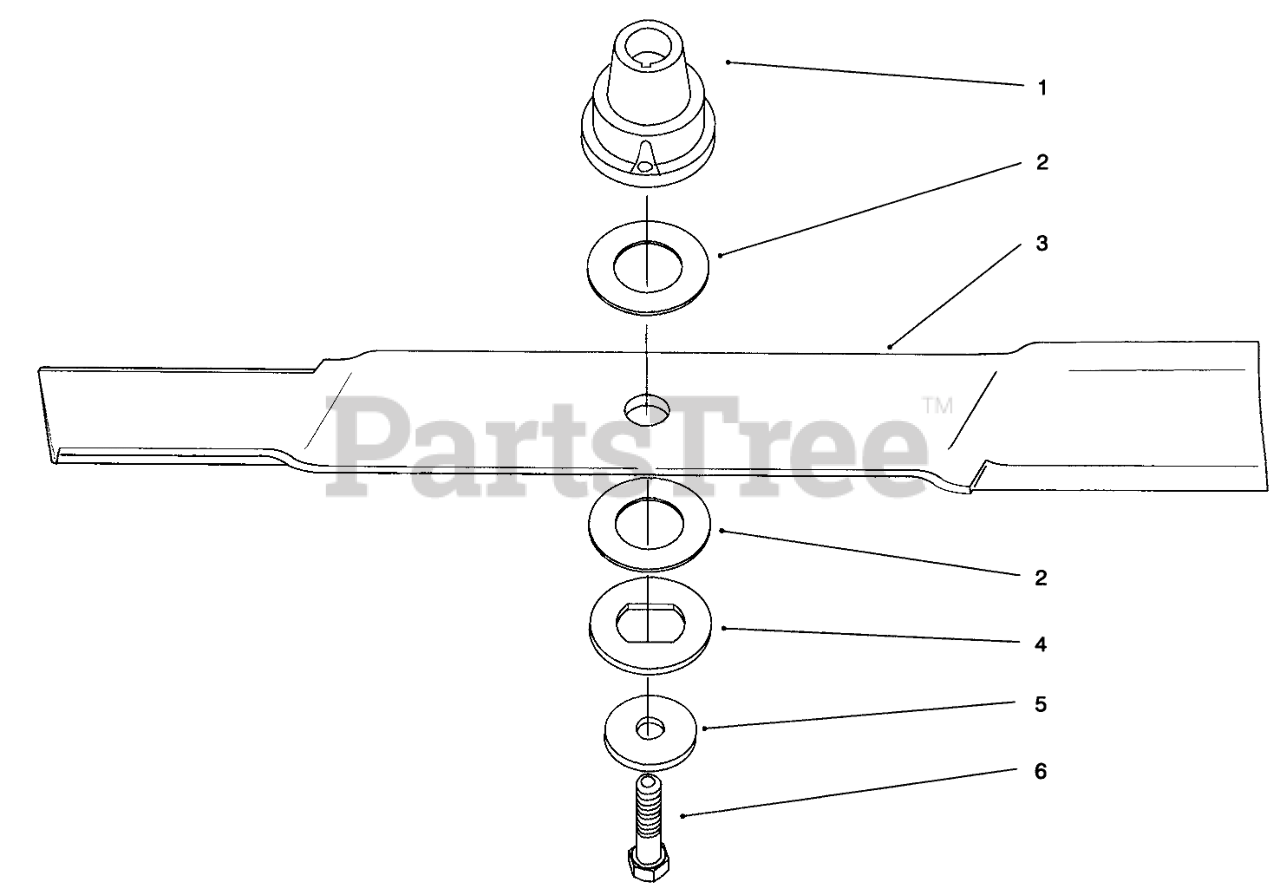

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7017

RETAINER - BLADE

Note: Obtain from Toro Europe N.V.

$

$

Not available

2

Toro 93-7016

WASHER - FRICTION

Note: Obtain from Toro Europe N.V.

$

$

Not available

3

Toro 93-4101

BLADE - 43 CM

Note: Obtain from Toro Europe N.V.

$

$

Not available

4

Toro 93-7014

WASHER - PRESSURE
(Superseded to 3257-5)

Note: Obtain from Toro Europe N.V.

$5.99

$

In Stock, only 1 left!

0

5

Toro 93-7015

WASHER - SPRING

Note: Obtain from Toro Europe N.V.

$

$

Not available

6

Toro 26-0670

SCREW-BLADE

$

$

Not available
