21000 BC - Toro 43cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODEL 12E802-0653-01 Parts Diagram

43cm Recycler Walk-Behind Mower

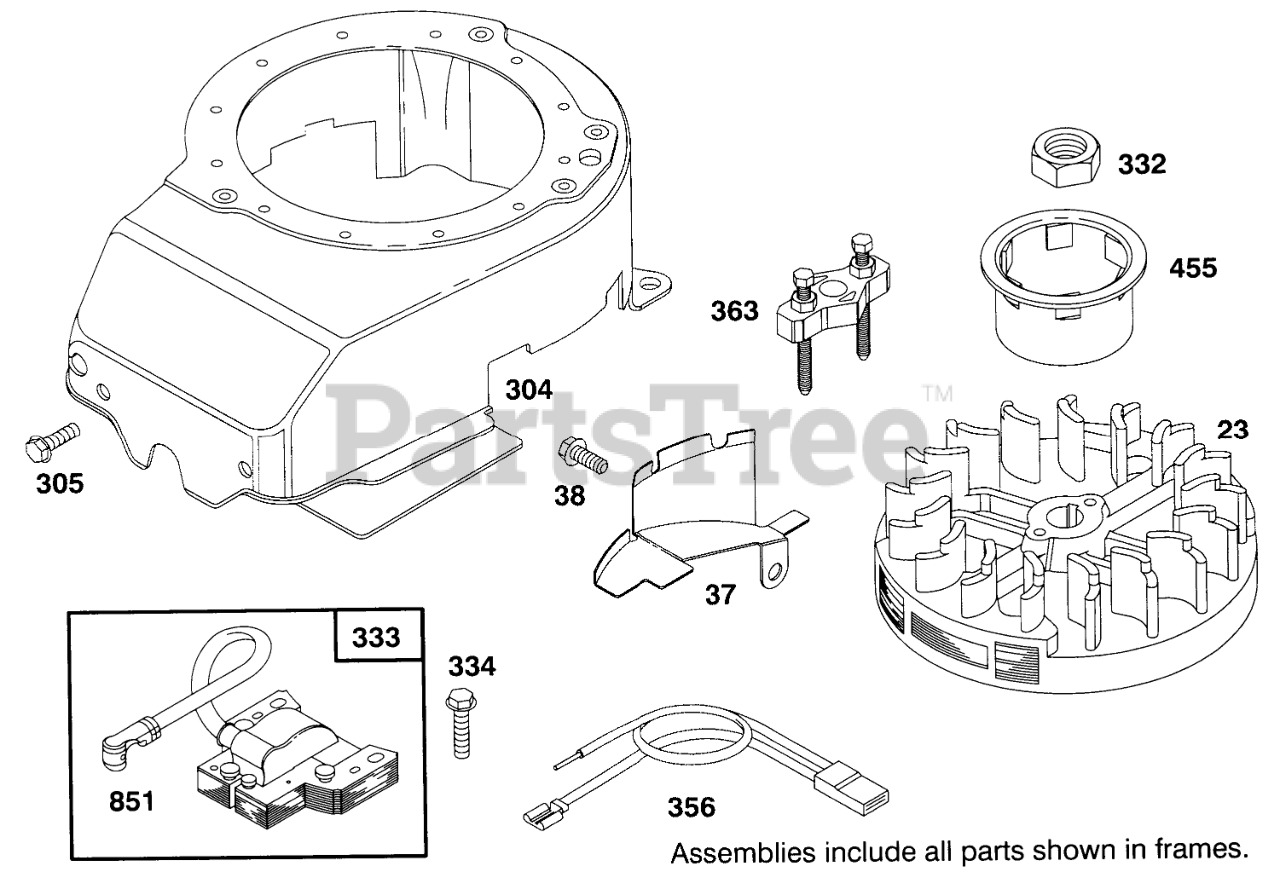

ENGINE BRIGGS & STRATTON MODEL 12E802-0653-01 Parts Diagram

  • Title
23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 94608

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 3 left!

0

305

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

$9.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
