2100 (UT-26027) - Green Machine String Trimmer Stringhead & Accessories Parts Diagram

String Trimmer

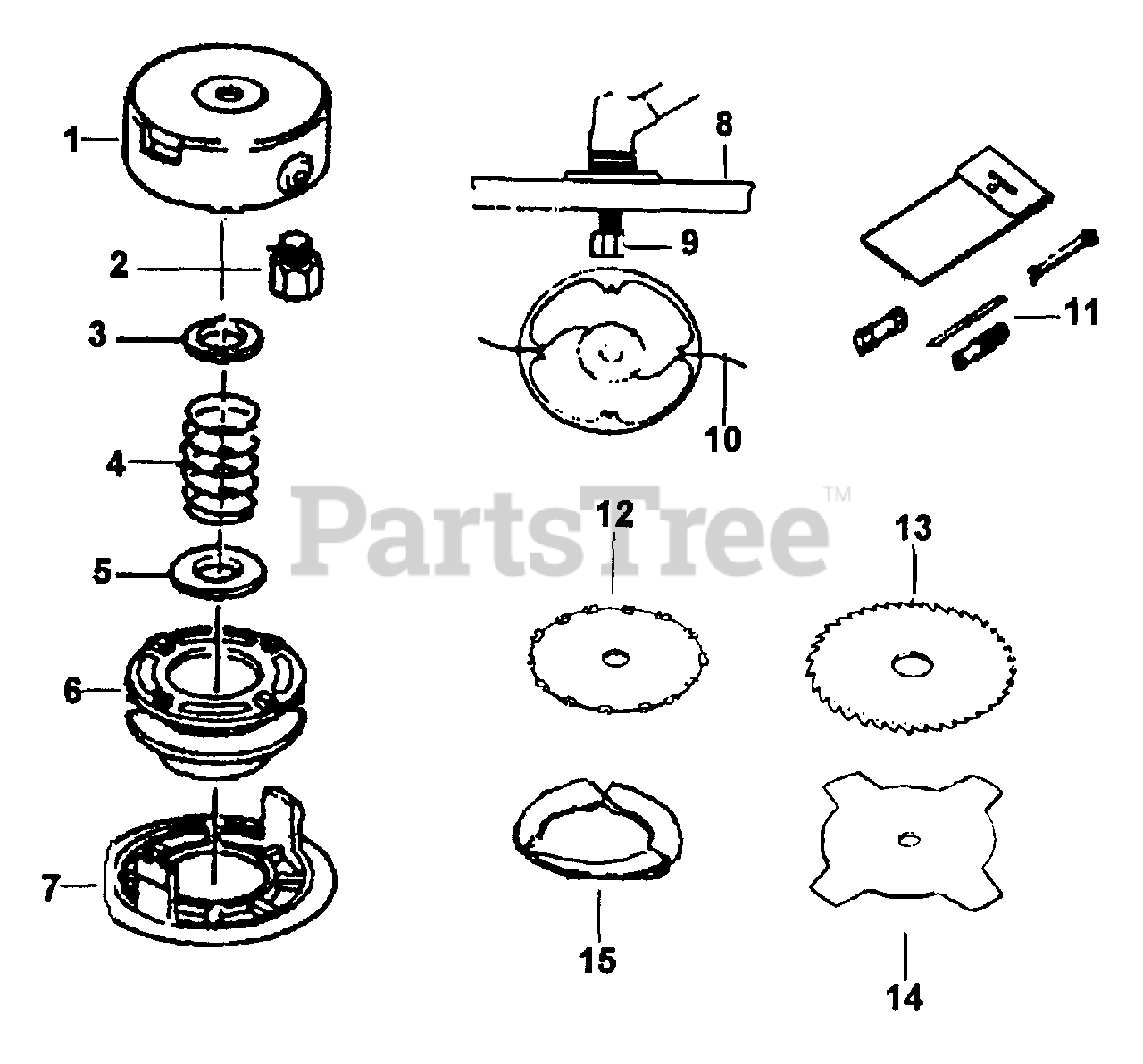

Stringhead & Accessories Parts Diagram

  • Title

Homelite DG07796

4" TFC String Head Assembly

$

$

Not available

1

Homelite GM180302

String Head Body

$

$

Not available

2

Homelite GM226701

Arbor Bolt

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

3

Homelite GM166903

Spring Plate

$

$

Not available

4

Homelite GM167901

Spring
(Superseded to UP06740)

$5.49

$

Usually ships in 3-7 days

0

5

Homelite GM166903

Spring Plate

$

$

Not available

6

Homelite GM185206

Spool
(Superseded to DG07811A)

$

$

Not available

7

Homelite GM185205

Cap

$

$

Not available

8

Homelite DG07799

Fixed Line Head Assy

Note: (Opt.)

$

$

Currently unavailable

9

Homelite GM325205

Arbor Bolt

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Currently unavailable

10

Homelite DG07809

Green Line .105 X 20 ft.

$

$

Not available

11

Homelite GM280603

Tool Kit

$

$

Currently unavailable

12

Homelite DG07817

8" XRTBlade

Note: (Opt.)

$

$

Currently unavailable

13

Homelite DG07815

8" Saw Blade

Note: (Opt.)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite DG07813

8" Quad Blade

Note: (Opt.)

$

$

Currently unavailable

15

Homelite GM94110

Blade Cover

Note: (Opt.)

$

$

Not available
