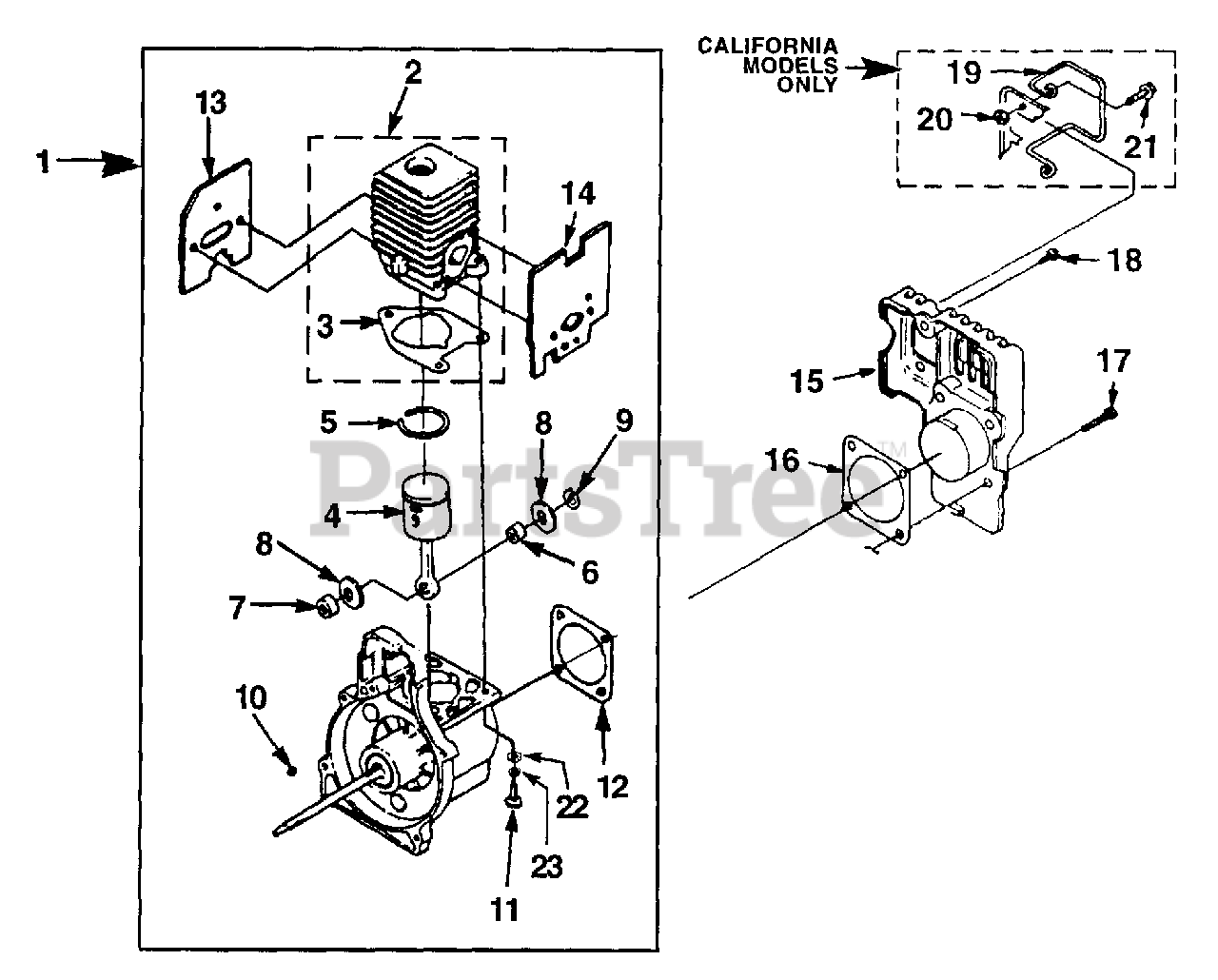

2100 (UT-26027) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP08658

Short Block
(Superseded to PS06216)

$4.49

$

In Stock, Qty 20+

0

2

Homelite UP07146

Cylinder & Gasket
(Superseded to UP07146A)

$

$

Not available

3

Homelite 04388B

Cylinder Gasket
(Superseded to 985259001)

$

$

Not available

4

Homelite A06291B

Piston & Rod
(Superseded to UP03037)

$106.99

$

In Stock, only 1 left!

0

5

Homelite 04933

Piston Ring

$

$

Not available

6

Homelite 02461

Needle Bearing

$

$

Not available

7

Homelite 04860

Spacer

$

$

Not available

8

Homelite 00118

Thrust Washer

$

$

Not available

9

Homelite 03796

Retaining Ring

$

$

Not available

10

Homelite 69250

Woodruff Key

$

$

Not available

11

Homelite 880841

Screw, Sems (12-24 x 3/4")
(Superseded to UP04345)

Note: Torque Specs: 65-75 In/Lbs; 7.3-8.5 Nm

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 08661

Crankcase Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

13

Homelite 08846

Muffler Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

14

Homelite 08840

Heat Dam Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

15

Homelite A00858

Crankcase Cover

$16.99

$

Usually ships in 3-7 days

0

16

Homelite 08661

Crankcase Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

17

Homelite 880811

Screw - Taptite (10-24 x .910)

Note: Torque Specs: 55-60 In/Lbs; 6.2-6.8 Nm

$

$

Not available

18

Homelite 82541

Screw - Plastite (10 x 1/2")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

In Stock, only 3 left!

0

19

Homelite A00254A

Wire Guard Kit

$

$

Not available

20

Homelite 81208

Nut (10-24)'

$

$

Not available

21

Homelite 88049

Screw - Sems Hex Hd. (10-24 x 1/2")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

22

Homelite 84115

Washer, Flat
(Superseded to 588512)

$3.99

$

Usually ships in 3-7 days

0

23

Homelite 83056

Washer, Lock

$

$

Not available
