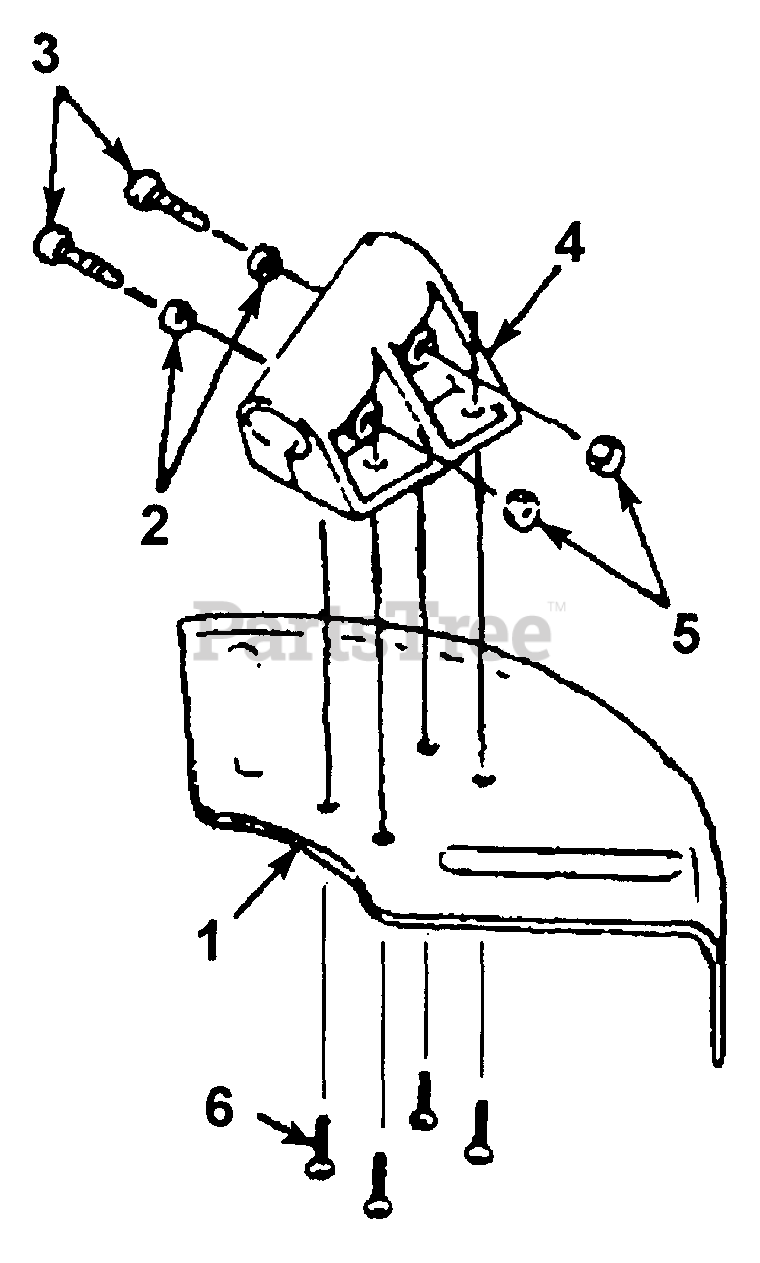

2100 (UT-26027) - Green Machine String Trimmer Deflector Parts Diagram

String Trimmer

Deflector Parts Diagram

  • Title

Homelite GM24700A

Blade Guard Assembly

$

$

Not available

1

Homelite GM247001

Blade Guard
(Superseded to GM24700A)

$

$

Not available

2

Homelite GM040002

Washer

$

$

Not available

3

Homelite GM011417

Screw

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

4

Homelite GM245201

Bracket, Guard

$

$

Not available

5

Homelite GM051012

Nut

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Currently unavailable

6

Homelite GM011423

Screw, Self Tapping
(Superseded to UP06817)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available
