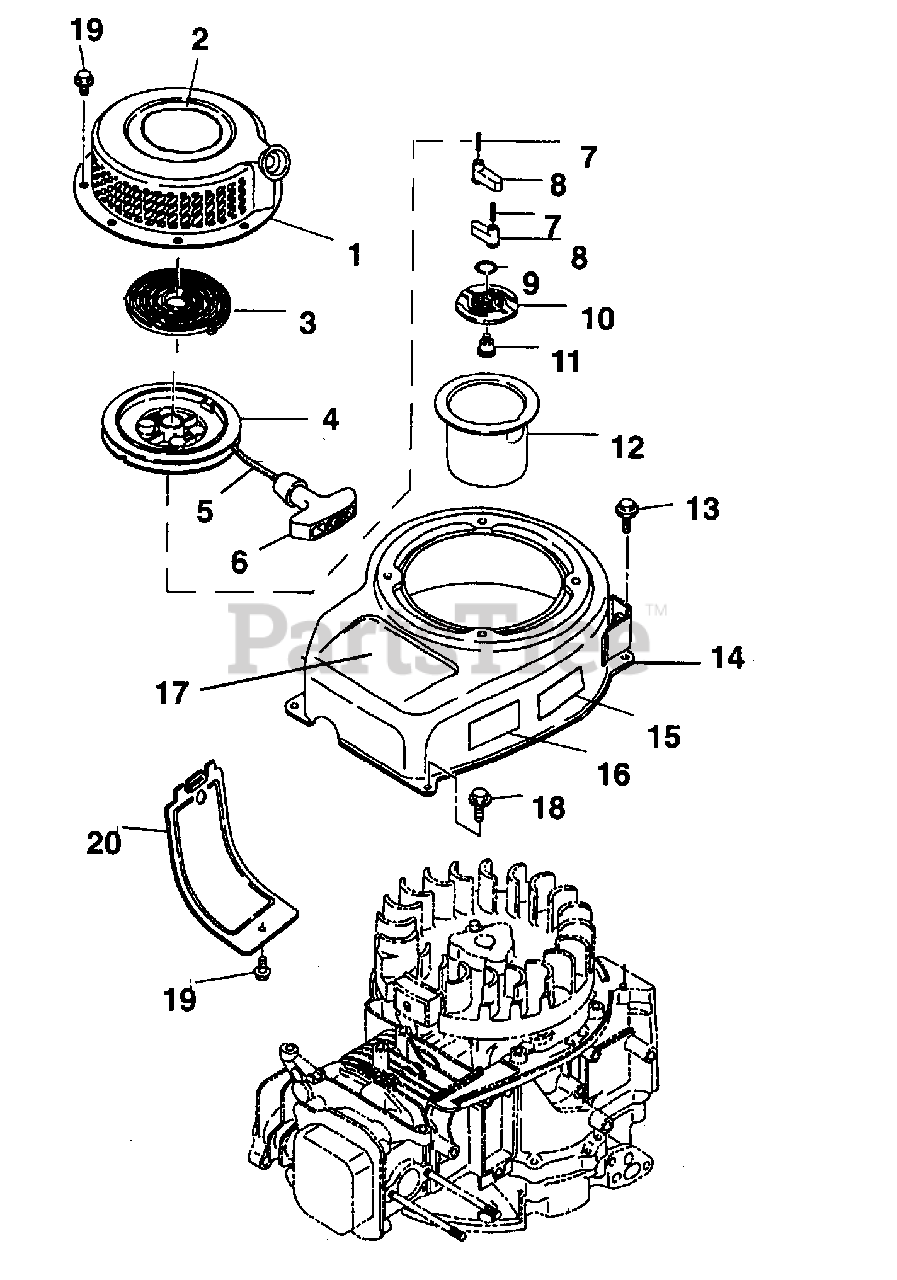

2100 SP (UT-26501) - Green Machine Walk-Behind Mower Cooling, Starting Parts Diagram

Walk-Behind Mower

Cooling, Starting Parts Diagram

  • Title

1

Homelite A0827402

RECOIL STARTER Compl

$

$

Not available

2

Homelite GS00021A

DECAL

$

$

Not available

3

Homelite 0827405

SPRING, Spiral

$

$

Not available

4

Homelite 0827403

REEL

$

$

Currently unavailable

5

Homelite 0827410

ROPE, Starter

$

$

Currently unavailable

6

Homelite 0827411

KNOB, Starter

$

$

Currently unavailable

7

Homelite 0827407

SPRING, Return

$

$

Currently unavailable

8

Homelite 0827404

RATCHET

$

$

Currently unavailable

9

Homelite 0827406

SPRING, Friction

$

$

Not available

10

Homelite 0827408

GUIDE, Ratchet

$

$

Not available

11

Homelite 0827409

SCREW, Set

Note: Torque Specs: 34.8 In/Lbs; 3.9 Nm

$

$

Not available

12

Homelite 0827412

PULLEY, Starter

$

$

Not available

13

Homelite 0827414

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

14

Homelite A0827401

BLOWER HOUSING

$168.99

$

Usually ships in 3-7 days

0

15

Homelite 0827417

LABEL, Warning

$

$

Not available

16

Homelite 0827418

LABEL, Emission Control

$

$

Not available

17

Homelite GS00020A

DECAL

$

$

Currently unavailable

18

Homelite 0827237

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

19

Homelite 0827416

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

20

Homelite 0827413

BAFFLE, Cylinder

$

$

Currently unavailable
