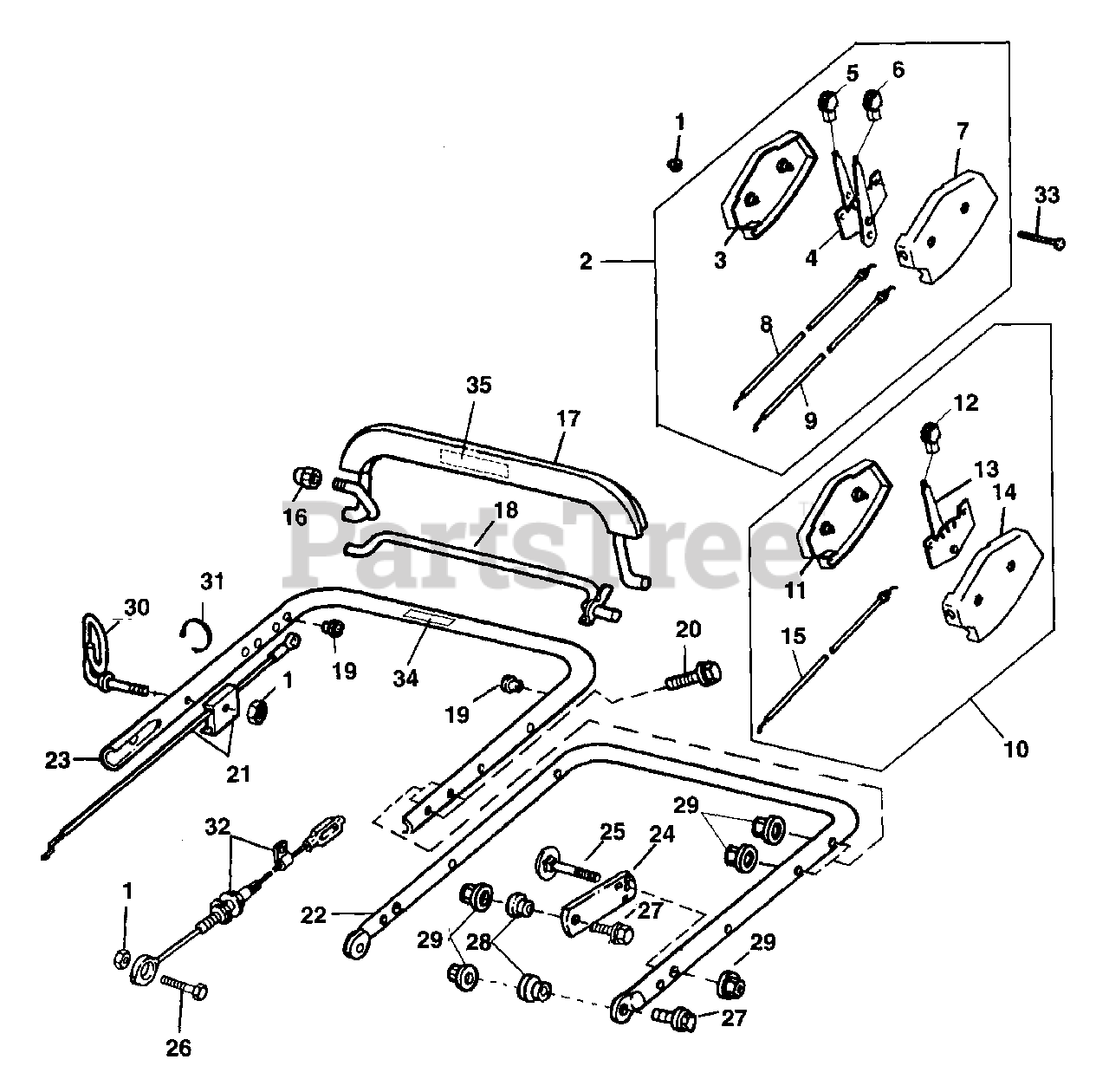

2100 SP (UT-26501) - Green Machine Walk-Behind Mower Controls & Handles Parts Diagram

Walk-Behind Mower

Controls & Handles Parts Diagram

  • Title

1

Homelite 14M7165

NUT, Lock

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

2

Homelite GS00016A

THROTTLE CONTROL & SHIFT

$

$

Currently unavailable

3

Homelite GS00018A

CASE, Throttle RH

Note: (2100SP)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite AM116064

LEVER, Throttle

Note: (2100SP)

$

$

Not available

5

Homelite M92755

KNOB, Throttle

$

$

Not available

6

Homelite M92756

KNOB, Shift

Note: (2100SP)

$

$

Not available

7

Homelite M112702

CASE, Shift LH

Note: (2100SP)

$

$

Not available

8

Homelite GS00017A

CABLE, Throttle

$

$

Not available

9

Homelite AM107139

CABLE, Shift

Note: (2100SP)

$

$

Currently unavailable

10

Homelite GS00024A

THROTTLE CONTROL

$

$

Currently unavailable

11

Homelite M112559

CASE, RH

Note: (2100P)

$

$

Currently unavailable

12

Homelite M92755

KNOB, Throttle

$

$

Not available

13

Homelite AM116063

LEVER, Throttle/Shift

Note: (2100P)

$

$

Not available

14

Homelite GS00025A

CASE, Throttle LH

Note: (2100P)

$

$

Not available

15

Homelite GS00017A

CABLE, Throttle

$

$

Not available

16

Homelite 14M7226

NUT

$

$

Currently unavailable

17

Homelite AM115449

BAIL LEVER, OPC

$

$

Not available

18

Homelite AM119486

BAIL LEVER, Traction

Note: (2100SP)

$

$

Not available

19

Homelite M112115

BUSHING, Anti-Rattle

$

$

Not available

20

Homelite 19M7798

BOLT, Upper Handle

Note: Torque Specs: 90-105 In/Lbs; 10.3-12.0 Nm

$

$

Not available

21

Homelite GS00093A

CABLE, OPC

$

$

Not available

22

Homelite M110957

HANDLE, Lower

$

$

Not available

23

Homelite M110958

HANDLE, Upper

$

$

Not available

24

Homelite M110965

BRACKET, Handle Adjust

$

$

Currently unavailable

25

Homelite 03M7188

BOLT, Carriage

$

$

Currently unavailable

26

Homelite M115046

BOLT, Shoulder

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

27

Homelite M112804

BOLT, Lower Handle

Note: Torque Specs: 90-105 In/Lbs; 10.3-12.0 Nm

$

$

Not available

28

Homelite M113093

SPACER, Lower Handle

$

$

Not available

29

Homelite 14M7396

NUT, Lock

Note: Torque Specs: 90-105 In/Lbs; 10.3-12.0 Nm

$

$

Not available

30

Homelite M123491

BRACKET, Recoil Rope

$

$

Not available

31

Homelite E72902

TIE STRAP
(Superseded to UP05918)

$

$

Not available

32

Homelite AM117363

CABLE, Traction

Note: (2100SP)

$

$

Currently unavailable

33

Homelite 21M7425

SCREW

Note: (2100SP); Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

Homelite 21M7424

SCREW

Note: (2100P); Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

34

Homelite M114211

LABEL, Caution

$

$

Not available

35

UNKNOWN

$

$

Not available
