2100 P (UT-26500) - Green Machine Walk-Behind Mower Lubricant Parts Diagram

Walk-Behind Mower

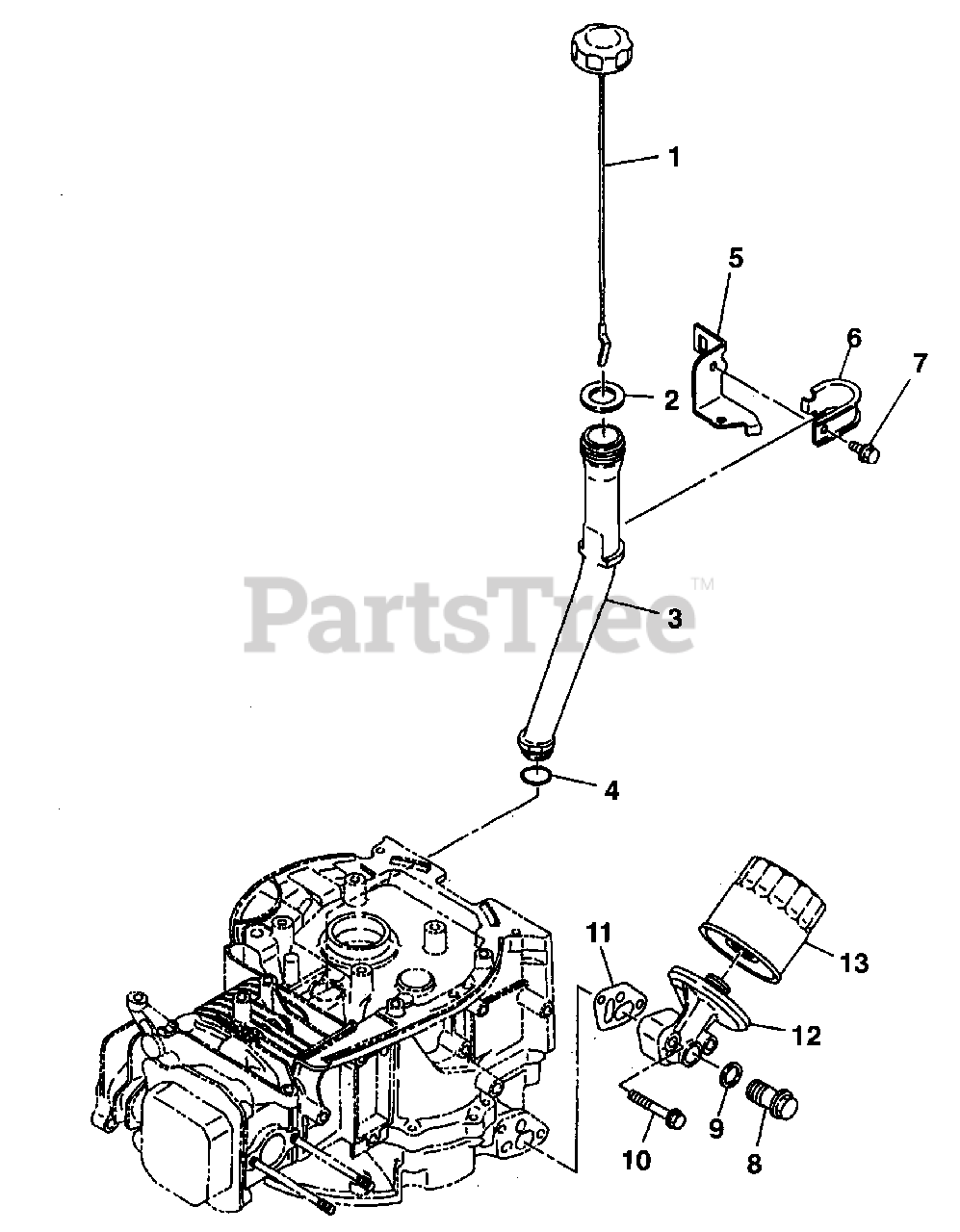

Lubricant Parts Diagram

  • Title

1

Homelite 0827508

GAUGE, Oil

$47.99

$

Usually ships in 3-7 days

0

2

Homelite 0827507

GASKET

$

$

Not available

3

Homelite 0827503

OIL FILLER

$

$

Currently unavailable

4

Homelite 0827504

O-RING

$

$

Not available

5

Homelite 0827505

BRACKET, Oil filler

$

$

Not available

6

Homelite 0827506

CLAMP, Oil filler

$

$

Currently unavailable

7

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

8

Homelite 0827512

PLUG, Oil Drain

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

9

Homelite 0827513

GASKET

$

$

Currently unavailable

10

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

11

Homelite 0827510

GASKET, Oil Filter Brkt

$

$

Not available

12

Homelite 0827509

BRACKET, Oil Filter

$

$

Currently unavailable

13

Homelite 0827511

FILTER, Oil

$

$

Not available
