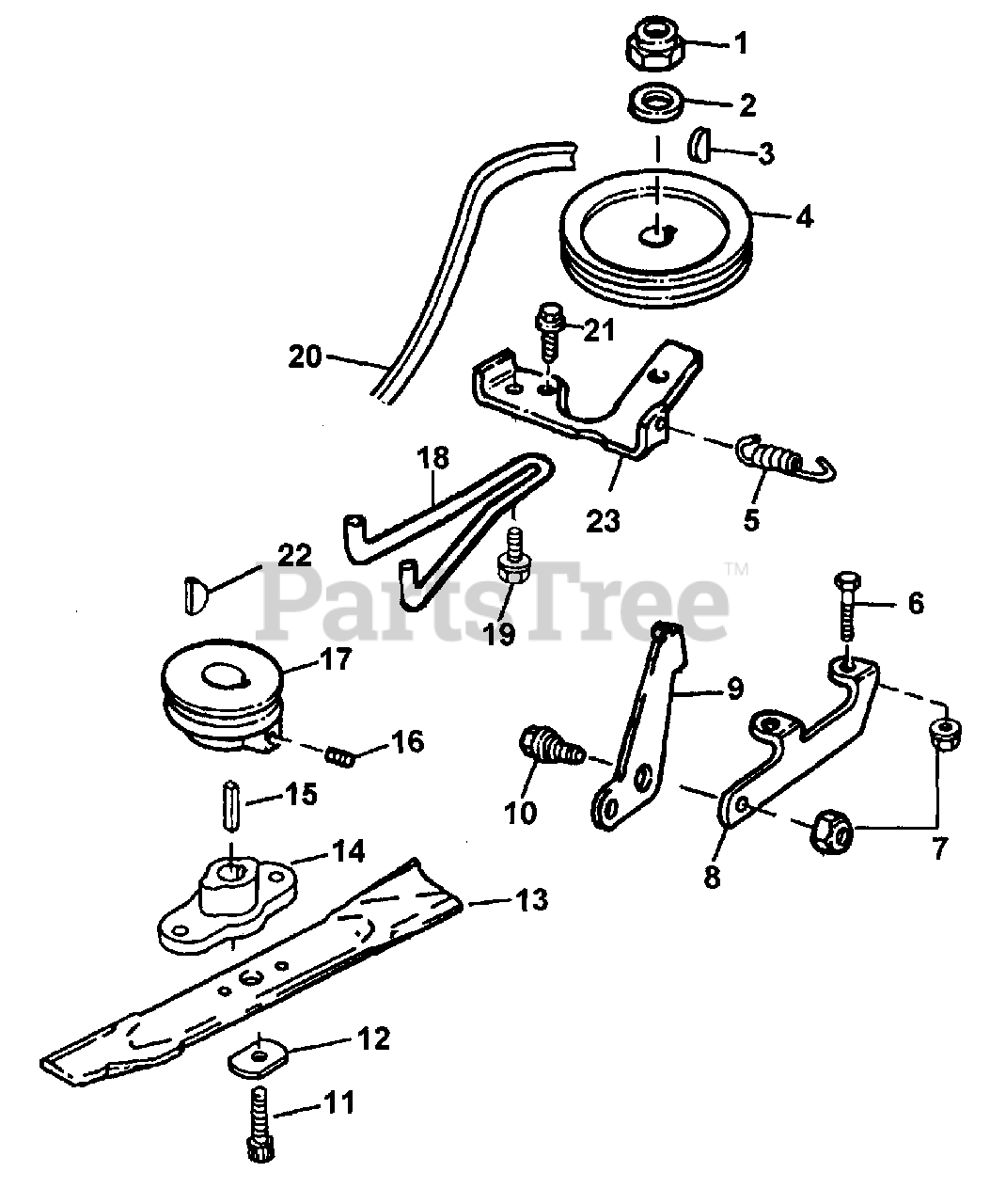

2100 P (UT-26500) - Green Machine Walk-Behind Mower Drive System & Blade Parts Diagram

Walk-Behind Mower

Drive System & Blade Parts Diagram

  • Title

1

Homelite M85516

NUT

Note: (2100SP); Torque Specs: 300 In/Lbs; 25 Nm

$

$

Not available

2

Homelite 24M7028

WASHER

Note: (2100SP)

$

$

Currently unavailable

3

Homelite 26H70

KEY

Note: (2100SP)

$

$

Not available

4

Homelite AM107567

PULLEY, Gearbox

Note: (2100SP)

$

$

Not available

5

Homelite M92029

SPRING

Note: (2100SP)

$

$

Not available

6

Homelite 19M7933

SCREW

Note: (2100SP); Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

7

Homelite 14M7165

NUT, Lock

Note: (2100SP); Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

8

Homelite M77990

ARM

Note: (2100SP)

$

$

Currently unavailable

9

Homelite M115630

LEVER

Note: (2100SP)

$

$

Currently unavailable

10

Homelite M92004

BOLT, Shoulder

Note: (2100SP); Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Not available

11

Homelite 19H2959

BOLT, Blade

Note: Torque Specs: 47 In/Lbs; 41.0 Nm

$

$

Not available

12

Homelite M111784

WASHER, Blade

$

$

Not available

13

Homelite A08625

BLADE

$29.99

$

Usually ships in 3-7 days

0

14

Homelite M114679

ADAPTER, Blade

$

$

Not available

15

Homelite M114270

KEY, Square

$

$

Not available

16

Homelite 22H898

SCREW, Set

Note: (2100SP); Torque Specs: 44 In/Lbs; 50 Nm

$

$

Not available

17

Homelite M113895

PULLEY, Crankshaft

Note: (2100SP)

$

$

Not available

18

Homelite M118328

GUIDE, Belt

Note: (2100SP)

$

$

Not available

19

Homelite 37M7131

BOLT

Note: (2100SP); Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Not available

20

Homelite M77167

BELT, Drive

Note: (2100SP)

$

$

Not available

21

Homelite 37M7092

SCREW

Note: (2100SP); Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

22

Homelite 26H10

KEY, Woodruff

Note: (2100SP)

$

$

Not available

23

Homelite M77175

GUIDE, Rear Belt

Note: (2100SP)

$

$

Currently unavailable
