2100 P (UT-26500) - Green Machine Walk-Behind Mower Brake Parts Diagram

Walk-Behind Mower

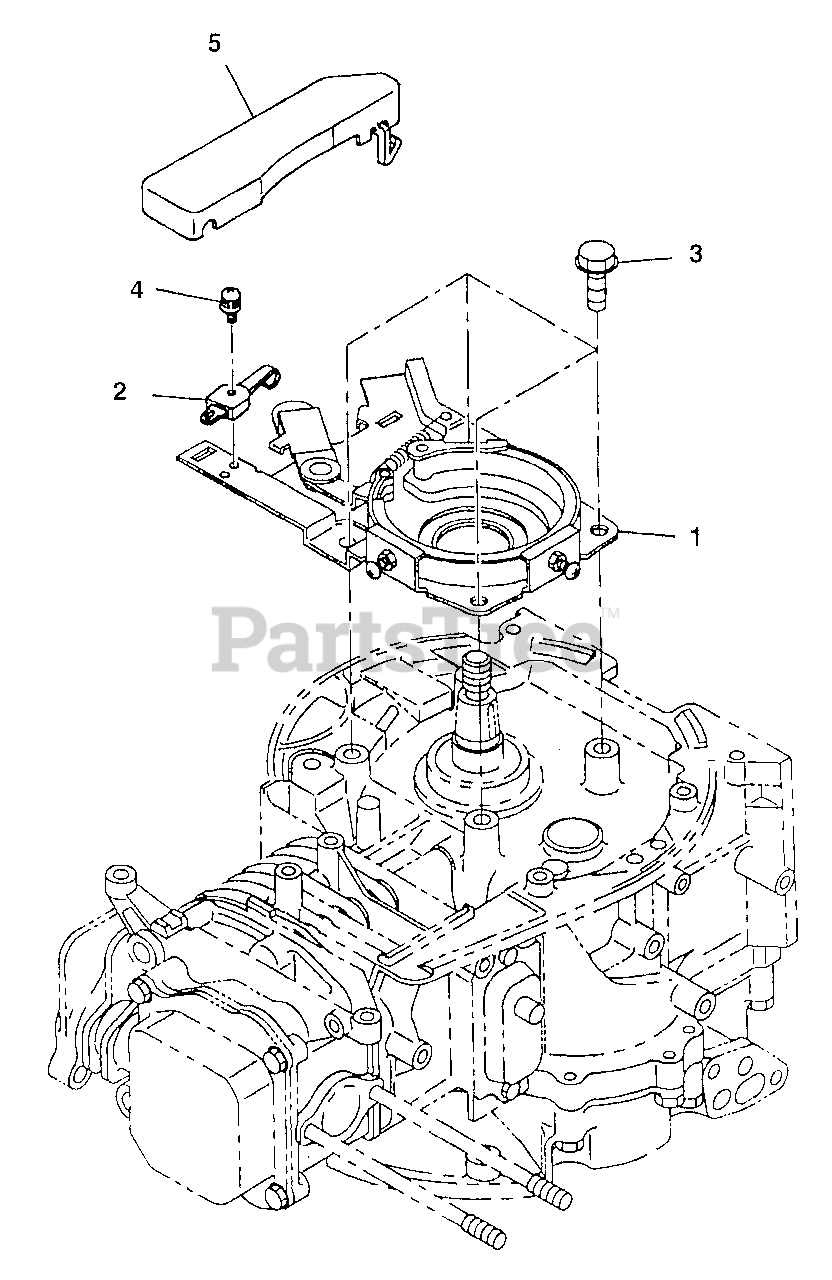

Brake Parts Diagram

  • Title

1

Homelite 0827701

BRAKE

$

$

Not available

2

Homelite 0827702

SWITCH, Stop

$

$

Not available

3

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

4

Homelite 0827704

SCREW AND WASHER

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

5

Homelite 0827705

COVER, Stop Switch

$

$

Not available
