2100 - Husqvarna Chainsaw (1984-04) Starter Assembly Parts Diagram

Chainsaw

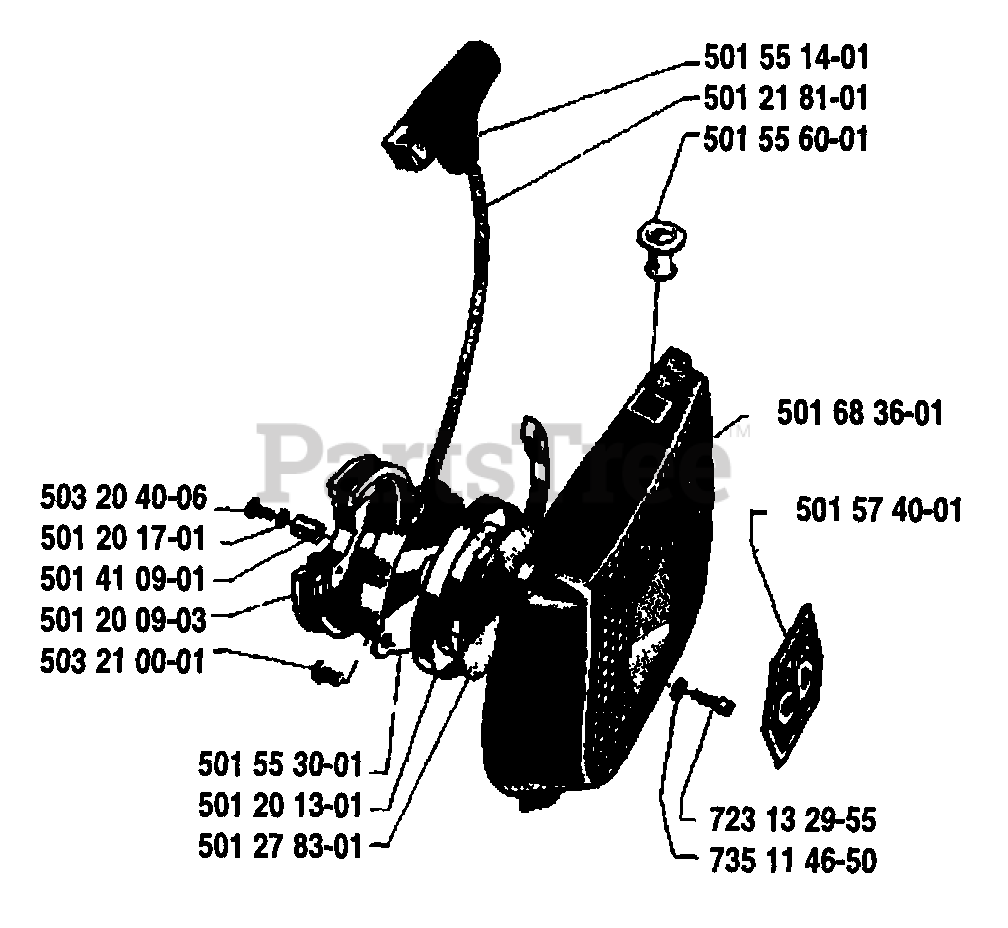

Starter Assembly Parts Diagram

  • Title

501551401

Husqvarna 501551401

STARTING HANDLE
(Superseded to 503543901)

$11.99

$

In Stock, only 4 left!

0

501218101

Husqvarna 501218101

STARTER ROPE

$

$

Not available

501556001

Husqvarna 501556001

SLEEVE

$

$

Not available

503204006

Husqvarna 503204006

Screw, Fs 5X12

$

$

Not available

501201701

Husqvarna 501201701

REPL BY 503 23 41-01
(Superseded to 503234101)

$

$

Not available

501410901

Husqvarna 501410901

BUSHING

$

$

Not available

501200903

Husqvarna 501200903

PULLEY

$

$

Not available

503210001

Husqvarna 503210001

SCREW 3X7

$

$

Not available

501553001

Husqvarna 501553001

GUARD RING

$

$

Not available

501201301

Husqvarna 501201301

RECOIL SPRING

$

$

Not available

501278301

Husqvarna 501278301

DAMPING DISC

$

$

Not available

501683601

Husqvarna 501683601

STARTER HOUSING
(Superseded to 501683602)

$

$

Not available

501574001

Husqvarna 501574001

$

$

Currently unavailable

723132955

Husqvarna 723132955

SCREW MCS 5X16
(Superseded to 503203216)

$6.49

$

Usually ships in 3-10 days

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0
