2100 (31AS2T5F711) - Troy-Bilt Squall 21" Snow Thrower (2014) 270-JU-12 Starter & Flywheel Parts Diagram

Squall 21" Snow Thrower

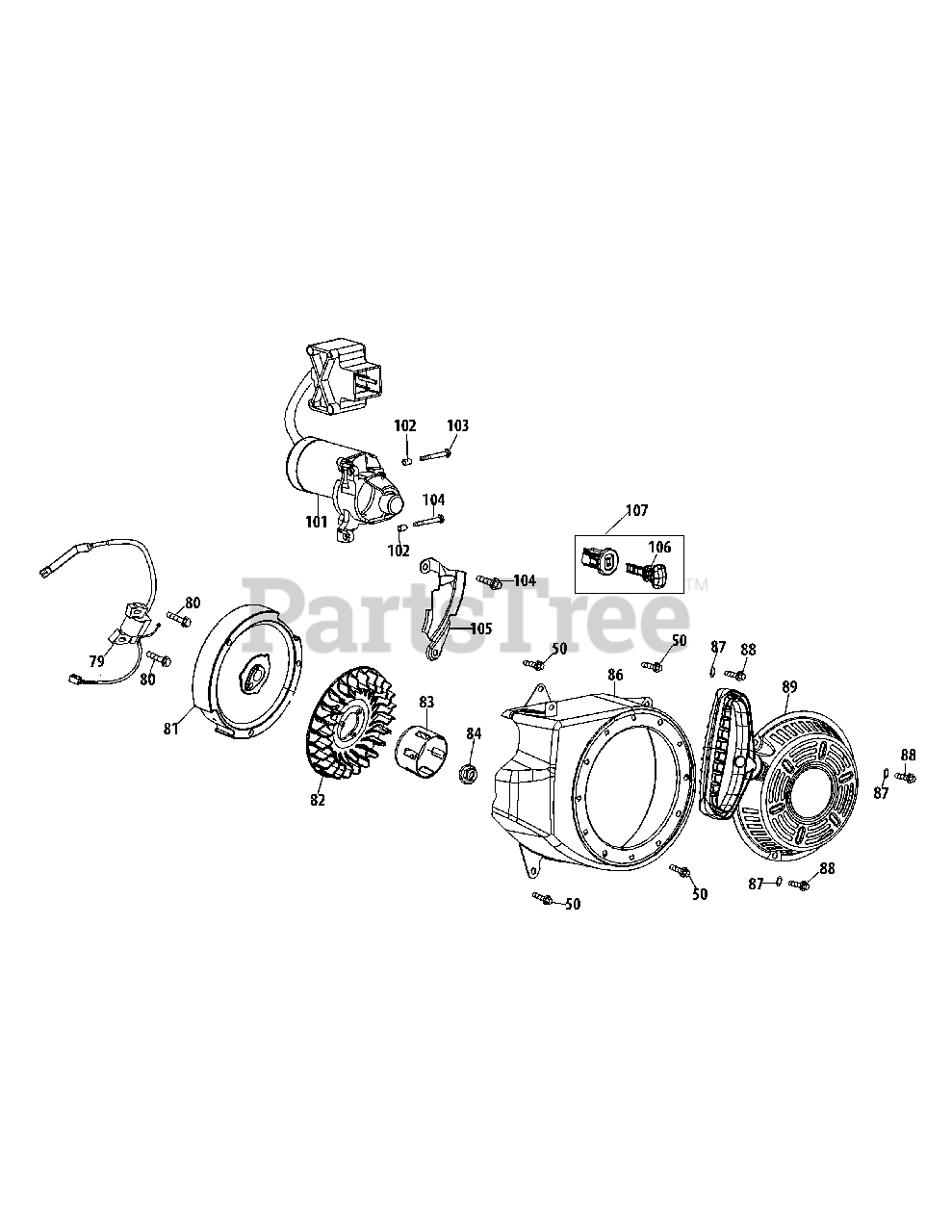

270-JU-12 Starter & Flywheel Parts Diagram

  • Title

50

Troy-Bilt 710-04915

Bolt:M6X12 Zinc

$4.49

$

In Stock, Qty 20+

0

79

Troy-Bilt 951-12013

Ignition Coil

$110.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 710-04919

Flange Bolt M6X25

$4.49

$

Usually ships in 3-6 days

0

81

Troy-Bilt 951-12416

Flywheel
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 712-04209

Nut M14
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

86

Troy-Bilt 951-12644

Fan Cover Complete

$60.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 710-04974

Flange Bolt

$6.99

$

In Stock, only 3 left!

0

89

Troy-Bilt 951-14152

Recoil Starter Assembly

$94.99

$

In Stock, Qty 5

0

101

Troy-Bilt 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

102

Troy-Bilt 715-04088

Dowel Pin 8X8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

103

Troy-Bilt 710-05182

Starter Bolt

$4.49

$

In Stock, only 1 left!

0

104

Troy-Bilt 710-04915

Bolt:M6X12 Zinc

$4.49

$

In Stock, Qty 20+

0

105

Troy-Bilt 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

106

Troy-Bilt 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 951-10637

Switch Assembly

$14.99

$

In Stock, Qty 8

0

Troy-Bilt 951-05102

120V Plug Kit

Note: (not shown)

$88.99

$

Usually ships in 3-6 days

0
