2100 (31AS2T5F711) - Troy-Bilt Squall 21" Snow Thrower (2014) 270-JU-12 Carburetor Parts Diagram

Squall 21" Snow Thrower

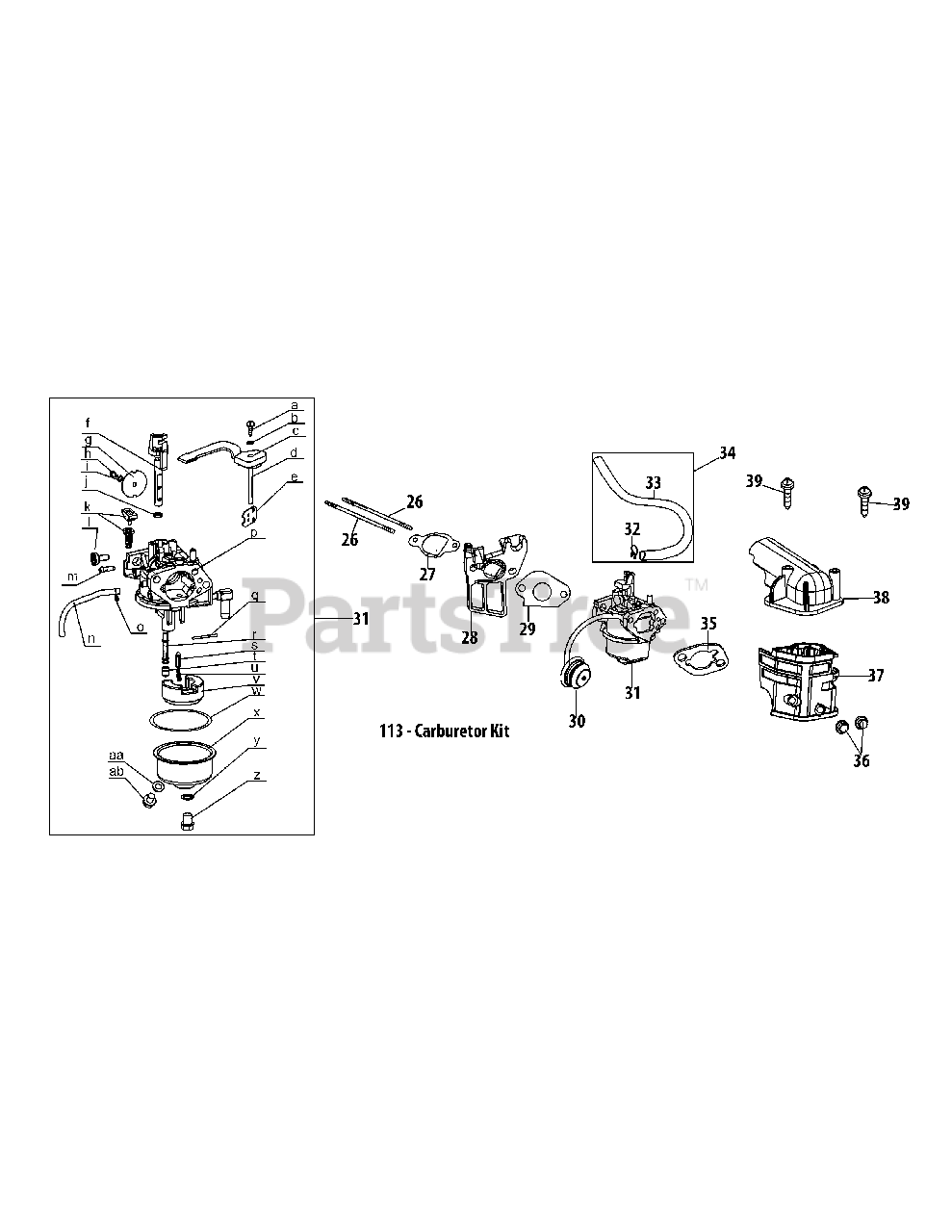

270-JU-12 Carburetor Parts Diagram

  • Title

26

Troy-Bilt 710-05101

Carburetor Stud Bolt

$4.49

$

In Stock, only 4 left!

0

27

Troy-Bilt 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

29

Troy-Bilt 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 951-14028A

Carb Assembly

$100.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 951-11700

Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 951-12613

Fuel Line Hose

$12.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 951-12012

Fuel Line Kit

$29.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 712-04213

Bolt

$6.99

$

In Stock, only 4 left!

0

37

Troy-Bilt 951-10962

Intake Heater Box Base

$24.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 951-10961

Intake Heater Box

$16.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 710-05275

Self Tapping Bolt

$3.99

$

In Stock, Qty 11

0

113

Troy-Bilt 951-12788A

Carburetor Kit

Note: (Incl. t,r,k,v,s,u,q,w,y,aa)

$54.99

$

In Stock, Qty 7

0

a

Troy-Bilt 710-05468

Choke Control Lever Screw

$3.99

$

Usually ships in 3-6 days

0

b

Troy-Bilt 736-04598

Washer

$3.99

$

Usually ships in 3-6 days

0

c

Troy-Bilt 951-12515

Choke Control Lever
(Superseded to 951-12811)

$11.99

$

In Stock, only 1 left!

0

d

Troy-Bilt n/a

Choke Shaft

$

$

Currently unavailable

e

Troy-Bilt n/a

Choke Plate

$

$

Currently unavailable

f

Troy-Bilt n/a

Throttle Shaft

$

$

Currently unavailable

g

Troy-Bilt n/a

Throttle Plate

$

$

Currently unavailable

h

Troy-Bilt 710-05469

Fuel Shutoff Lever Screw

$4.49

$

Usually ships in 3-6 days

0

i

Troy-Bilt 736-04638

Choke Control Lever Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

j

Troy-Bilt n/a

Throttle Plate Gasket

$

$

Currently unavailable

k

Troy-Bilt n/a

Idle Jet Assembly

$

$

Currently unavailable

l

Troy-Bilt n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

m

Troy-Bilt n/a

Primer Pipe

$

$

Currently unavailable

n

Troy-Bilt 951-12019

Primer Hose
(Superseded to 951-12019A)

$7.49

$

In Stock, only 2 left!

0

o

Troy-Bilt 951-11906

Primer Hose Clamp

$3.99

$

In Stock, Qty 5

0

p

Troy-Bilt n/a

Carburetor Body

$

$

Currently unavailable

q

Troy-Bilt n/a

Float Pin

$

$

Currently unavailable

r

Troy-Bilt n/a

Emulsion Tube

$

$

Currently unavailable

s

MTD 951-12875

Float Needle Valve

$

$

Not available

t

Troy-Bilt n/a

Main Jet

$

$

Currently unavailable

u

Troy-Bilt n/a

Needle Valve Spring

$

$

Currently unavailable

v

Troy-Bilt n/a

Float

$

$

Currently unavailable

w

Troy-Bilt 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

x

Troy-Bilt n/a

Fuel Bowl

$

$

Currently unavailable

y

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

z

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

aa

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

ab

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0
