2100 (31AS2T5F711) - Troy-Bilt Squall 21" Snow Thrower (2013) Shroud, Chute, & Handle Parts Diagram

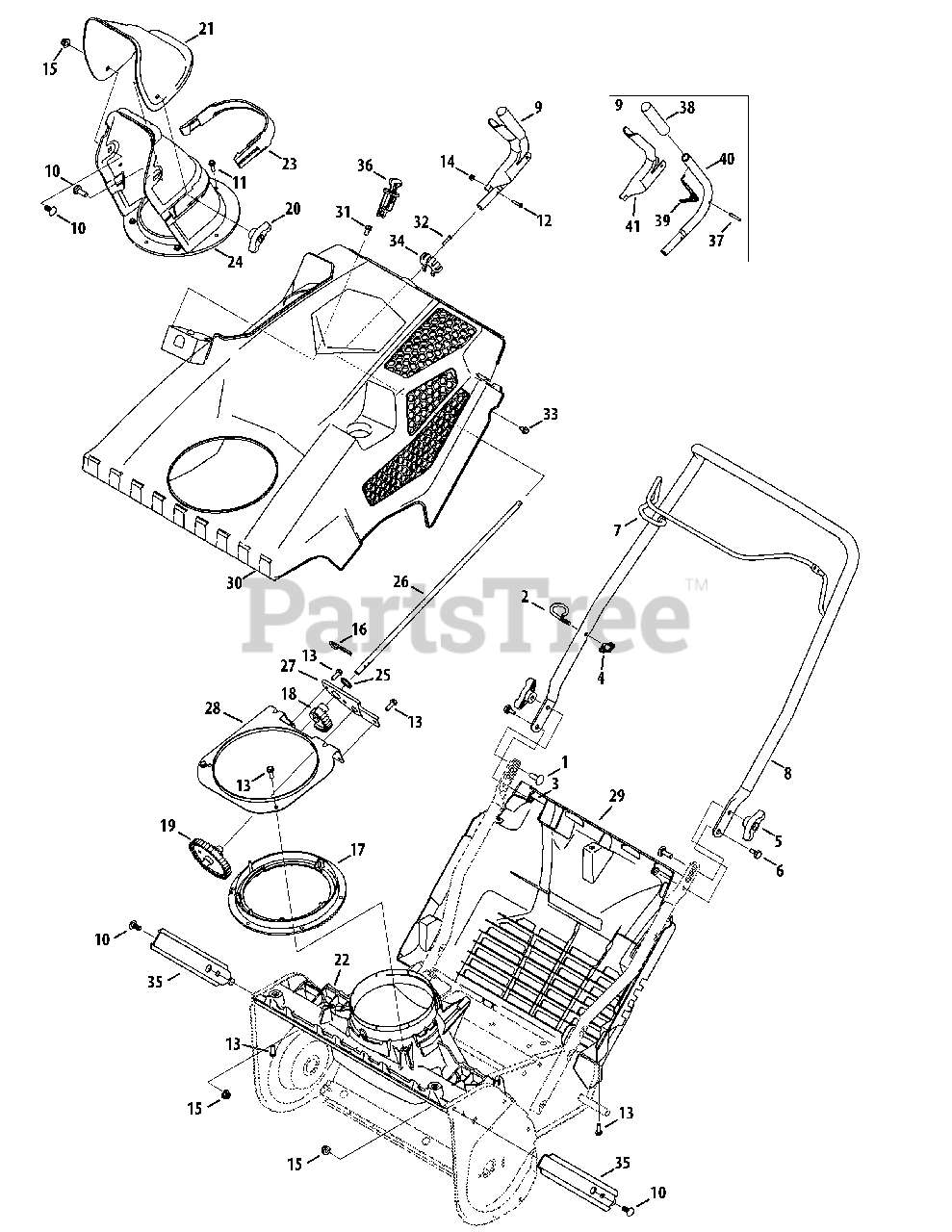

Squall 21" Snow Thrower

Shroud, Chute, & Handle Parts Diagram

  • Title

1

Troy-Bilt 710-04998

Carriage Bolt, 5/16-18 x 1.00

$5.99

$

In Stock, Qty 5

0

2

Troy-Bilt 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 11

0

3

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 720-0279

Knob Handle

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04122

Wing Knob

$6.99

$

In Stock, Qty 12

0

6

Troy-Bilt 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 15

0

7

Troy-Bilt 747-05327C-0637

Auger Bail

$16.99

$

In Stock, Qty 17

0

8

Troy-Bilt 749-04703B-0637

Upper Handle
(Superseded to 749-04703D-0637)

$46.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 984-04388

Chute Control Assembly

$43.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-05179A

Screw, #8-32 x .875

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

16

Troy-Bilt 714-04003

Cotter Pin

$8.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 917-04844B

Bevel Gear, 95T

$35.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 717-04940

Spur Gear, 35T

$13.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 717-04941

Bevel Gear, 40T/11T

$19.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 12

0

21

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

22

Troy-Bilt 931-07626B

Chute Adapter

$42.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-07708

Chute Plug

$13.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-04161

Flat Washer, .75 x 1.00 x .06

$6.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 747-05299A

Chute Rod

$15.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 790-00416

Gear Mounting Plate

$5.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 790-00471

Gear Retainer Bracket

$21.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 731-07725

Bottom Cover
(Superseded to 731-07725B)

$56.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 753-06905

Top Cover
(Superseded to 753-06905C)

$97.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-04326

Hex Washer Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 710-0599

Hex Screw, 1/4-14 x .500

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 790-00459

Index Bracket

$11.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 790-00441-0637

Drift Cutter

$8.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, Qty 8

0

36

Troy-Bilt 951-10630

Ignition Key

Note: (not shown)

$6.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 915-0249

Roll Pin

$6.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 720-04172

Grip

$4.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 732-04864A

Torsion Spring

$6.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 749-04827-0637

Chute Rotation Tube

$

$

Not available

41

Troy-Bilt 790-00473-0637

Chute Rotation Bracket

$33.99

$

Usually ships in 3-6 days

0
