2100 (31AS2T5F711) - Troy-Bilt Squall 21" Snow Thrower (2011) Drive System & Auger Assembly Parts Diagram

Squall 21" Snow Thrower

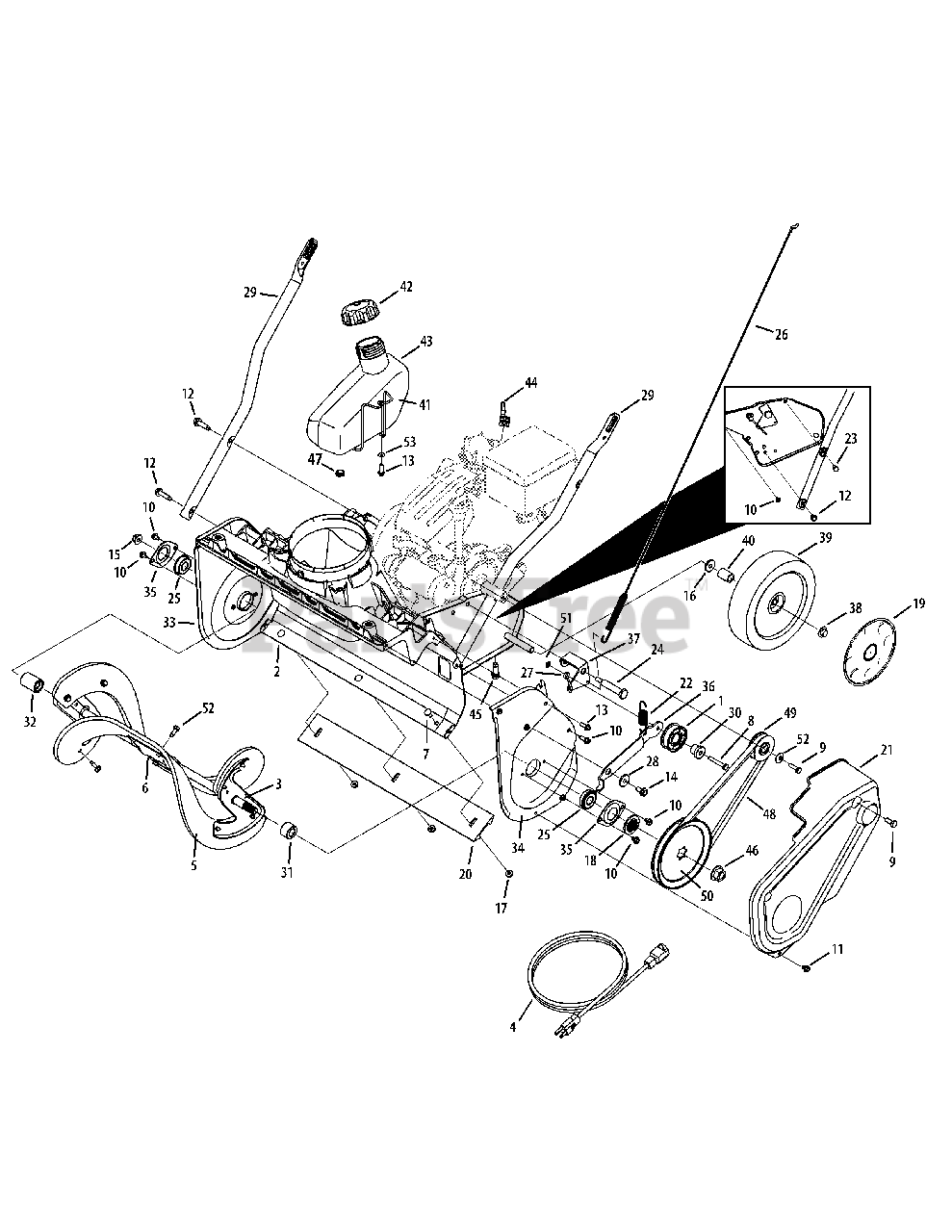

Drive System & Auger Assembly Parts Diagram

  • Title

1

Troy-Bilt 684-04168

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-04398-0638

Frame
(Superseded to 753-11131A)

$138.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 984-04393

Auger Assembly Complete

$230.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 684-04394-0637

Auger Assembly Axle

Note: Not shown, w/o paddles and center auger bracket

$50.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 929-0071A

3-Prong Extension Cord
(Superseded to 929-0071B)

Note: Squall 2100

$21.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-06469

Rubber Auger Replacement Kit

Note: (Inc. 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 790-00427

Center Auger Bracket

Variations

Troy-Bilt 790-00427-0637

Auger Center Bracket - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0642

Hex Washer Screw 1/4-20 x.750

Note: (replaces 710-05058 in this application) (4 bolts needed for Center Auger Bracket)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0778

Hex Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

13

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

14

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 936-0192

Flat Washer, .535 x .930 x .090

Note: Squall 2100

$4.49

$

In Stock, Qty 18

0

17

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 718-04836

Pulley Hub

$4.49

$

In Stock, Qty 5

0

19

Troy-Bilt 731-07197

Hubcap

Note: Squall 210

$8.49

$

In Stock, only 2 left!

0

20

Troy-Bilt 731-08171

Shave Plate

$18.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 731-07737A

Belt Cover

$28.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 732-04748

Extension Spring, .70 x 3.035

$4.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-05183

Hex Screw, 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 738-04456

Shoulder Bolt, 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

25

Troy-Bilt 741-04517

Ball Bearing, .500 x 40mm x 12mm

$8.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 946-04701

Clutch Cable

$23.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 747-05360A

Drive Cable Wire Support

$3.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 749-04810-0637

Lower Handle

$12.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 750-04758

LH Auger Spacer

$6.49

$

In Stock, Qty 9

0

32

Troy-Bilt 750-05393

RH Auger Spacer

$5.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 790-00444-0638

RH Auger Plate

$45.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 790-00445-0638

LH Auger Plate

$45.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 790-00457-0638

Bearing Cup

$13.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 790-00461-0637

Idler Bracket

$4.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 790-00426

Cable Idler Bracket

Variations

Troy-Bilt 790-00426-0637

Clutch Cable Bracket - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 734-04033

Wheel, 8 x 2 (Gray)
(Superseded to 753-08091)

Note: Squall 2100

$46.99

$

In Stock, Qty 13

0

39

Troy-Bilt 634-04607

Wheel, 7 x 2 (Black)

Note: Squall 210

$25.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 750-05417

Sleeve Spacer, .525 x .78 x 1.00

Note: Squall 2100

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 750-04432

Spacer, .525 x .775 x .835

Note: Squall 210

$4.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 747-05513

Gas Tank Wire Support

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 751-10487A

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 751-11648

Fuel Tank
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 731-07664

Choke Extension Lever

Note: Squall 2100

$4.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 710-0654A

Hex Washer Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 3 left!

0

46

Troy-Bilt 912-0702

Flange Nut, 7/16-20

$18.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

48

Troy-Bilt 954-04050

Belt, .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 956-0416B

Pulley Half, .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

50

Troy-Bilt 756-04443

Pulley, 1/2 x 6.00

$23.99

$

In Stock, only 4 left!

0

51

Troy-Bilt 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

52

Troy-Bilt 710-05058

Hex Washer Screw, 1/4-14 x .750

$3.99

$

In Stock, Qty 8

0

52

Troy-Bilt 736-0371

Thrust Washer, .343 x .880 x .062

Note: Not shown

$4.49

$

In Stock, only 3 left!

0

53

Troy-Bilt 736-3092

Washer, .265 x 1.00 x .030

$3.99

$

In Stock, Qty 9

0
