2100 (31AS2T5F711) - Troy-Bilt Squall 21" Snow Thrower (2011) 270-JU Starter & Flywheel Parts Diagram

Squall 21" Snow Thrower

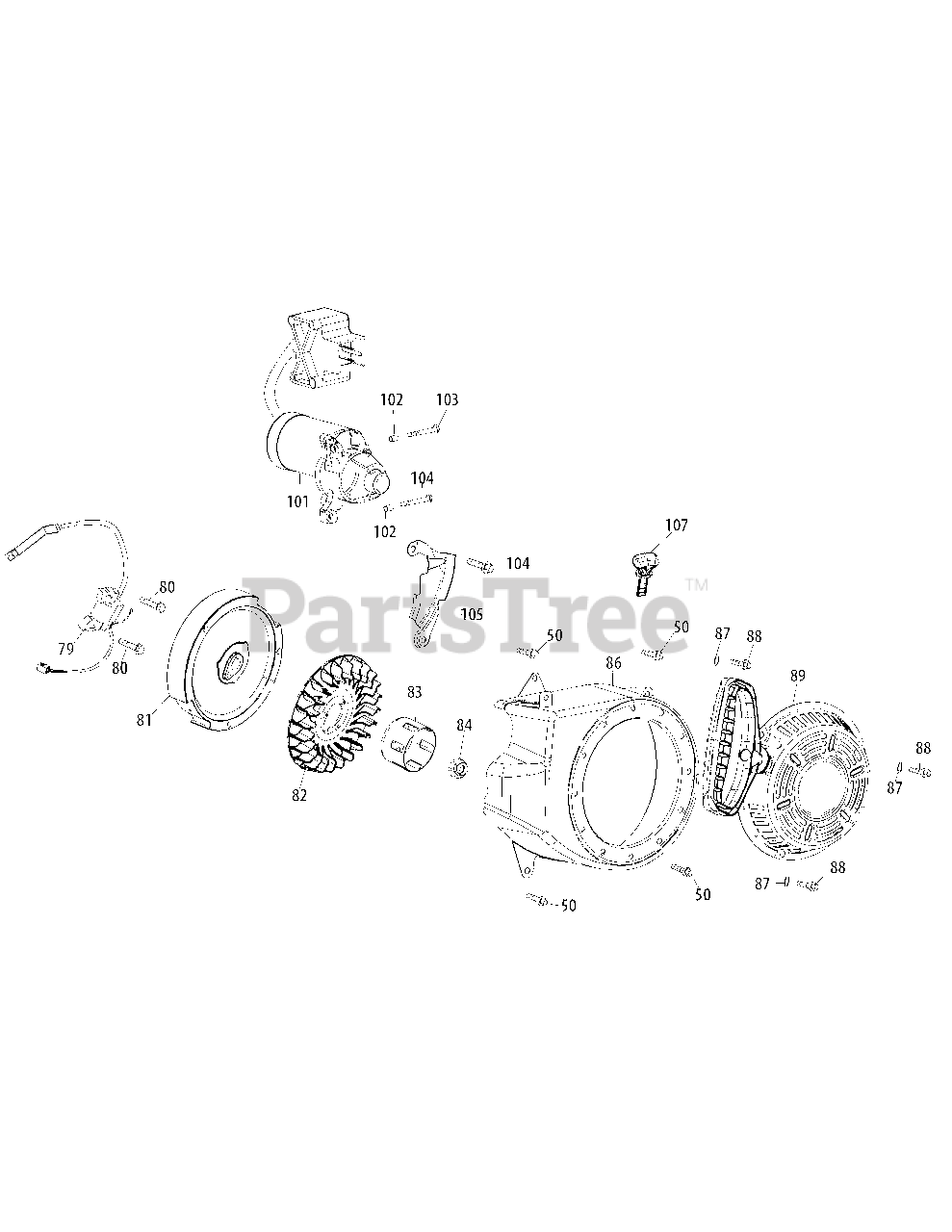

270-JU Starter & Flywheel Parts Diagram

  • Title
50

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

79

Troy-Bilt 951-12013

Ignition Coil Assembly

$110.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

81

Troy-Bilt 951-12416

Flywheel
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-10909

Fan, Cooling
(Superseded to 951-10934)

$23.99

$

In Stock, only 2 left!

0

83

Troy-Bilt 951-10911

Pulley, Starter

$17.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 712-04209

Nut, Special, M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

86

Troy-Bilt 751-12644

Blower Housing
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 710-04974

Bolt M6×10

$6.99

$

In Stock, only 3 left!

0

89

Troy-Bilt 951-12015

Recoil Starter
(Superseded to 951-14152)

$94.99

$

In Stock, Qty 5

0

89

Troy-Bilt 731-05696

Recoil Starter Handle

$16.99

$

In Stock, only 1 left!

0

101

Troy-Bilt 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

102

Troy-Bilt 715-04088

Dowel Pin 8×8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

103

Troy-Bilt 710-05182

Bolt M6×32

$4.49

$

In Stock, only 1 left!

0

104

Troy-Bilt 710-04979

Bolt M6×18

$3.99

$

Usually ships in 3-6 days

0

105

Troy-Bilt 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

107

Troy-Bilt 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

107

Troy-Bilt 951-10637

Key Switch

$14.99

$

In Stock, only 1 left!

0
