2100 (31AM2P5B711) - Troy-Bilt Squall 21" Snow Thrower (2009) Drive & Auger Assembly Parts Diagram

Squall 21" Snow Thrower

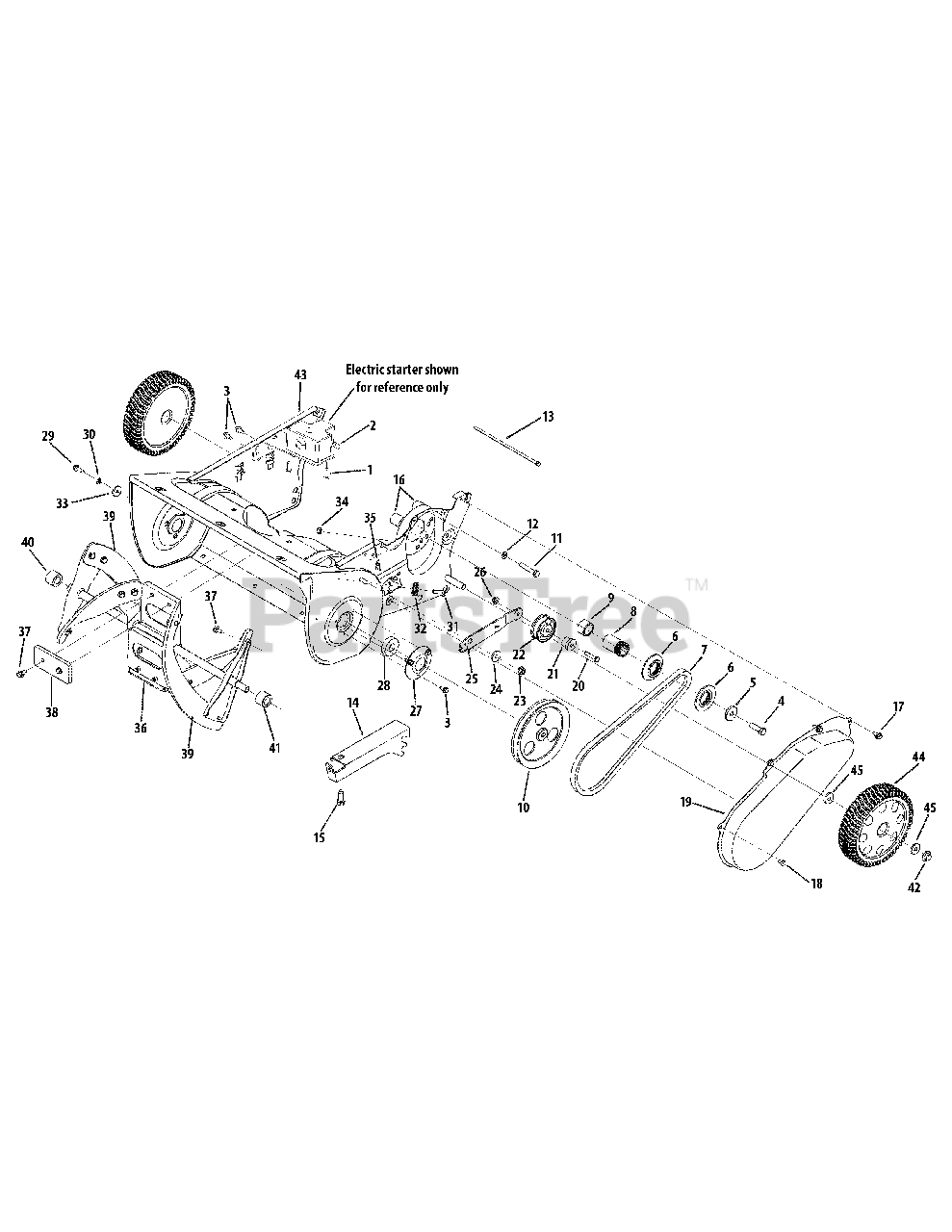

Drive & Auger Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04373A

Hex Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

2

Troy-Bilt 790-00335-0637

Electric Starter Support Bracket

$

$

Not available

3

Troy-Bilt 710-0599

Hex Screw, 1/4-14 x .500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1810

Hex Screw, 3/8-24 x 1.75

$26.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 736-0247

Flat Washer, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 12

0

6

Troy-Bilt 756-04353

Pulley Half, 4L-V x 2.30 OD

$7.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 954-04204

V-Belt

$23.99

$

In Stock, Qty 7

0

8

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 750-05084

Spacer, .88 ID x 1.18 OD x .74 Lg.

$

$

Not available

10

Troy-Bilt 756-04232

V-Type Pulley, 1/2 x 35.7

$60.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 710-0409

Hex Screw, 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 790-00334-0637

Engine Support Bracket

$

$

Not available

15

Troy-Bilt 710-0654A

Hex Washer Screw, 3.8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 750-04297B

Spacer, .875 x .320 x 1.027

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-0896

Hex Washer Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

19

Troy-Bilt 790-00045C-0638

Belt Cover
(Superseded to 790-00045C-0637)

$57.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

21

Troy-Bilt 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 684-04168

Pulley Assembly, 1.917 OD

$38.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 790-00238A-0637

Idler Bracket w/ Brake

$10.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 790-00249-0637

Bearing Cup

$18.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 741-04188A

Ball Bearing, 1.25 x 37 x 12.6301

$12.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 710-0642

Hex Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt 738-0924A

Shoulder Screw, .340 x .335 x 1/4-28

$6.99

$

In Stock, Qty 5

0

32

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

33

Troy-Bilt 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 712-0896

Hex Lock Nut, 1/4-28

$4.99

$

In Stock, Qty 6

0

35

Troy-Bilt 932-0357A

Extension Spring, .33 OD x 1.12
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

36

Troy-Bilt 684-04252-0637

Auger Assembly, 21 inch

$180.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 710-0896

Hex Screw, 1.4-14 x .625

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 735-04033

Rubber Pad

$8.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 735-04032

Spiral Crescent

$18.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 750-04758

RH Spacer

$6.49

$

In Stock, Qty 8

0

41

Troy-Bilt 750-04757

LH Spacer

$8.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 726-0299

Push Cap, 1/2 inch

$8.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 684-04314-0638

Auger Housing

$169.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 734-04033

Wheel, 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 9

0

45

Troy-Bilt 936-0326

Flat Washer, .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

Troy-Bilt 729-04035

Amp Connector

Note: Not Shown

$

$

Not available
