210 SS (86227) - Snapper String Trimmer 210SS Gear Head, Bump Head And Clutch Case Parts Diagram

String Trimmer

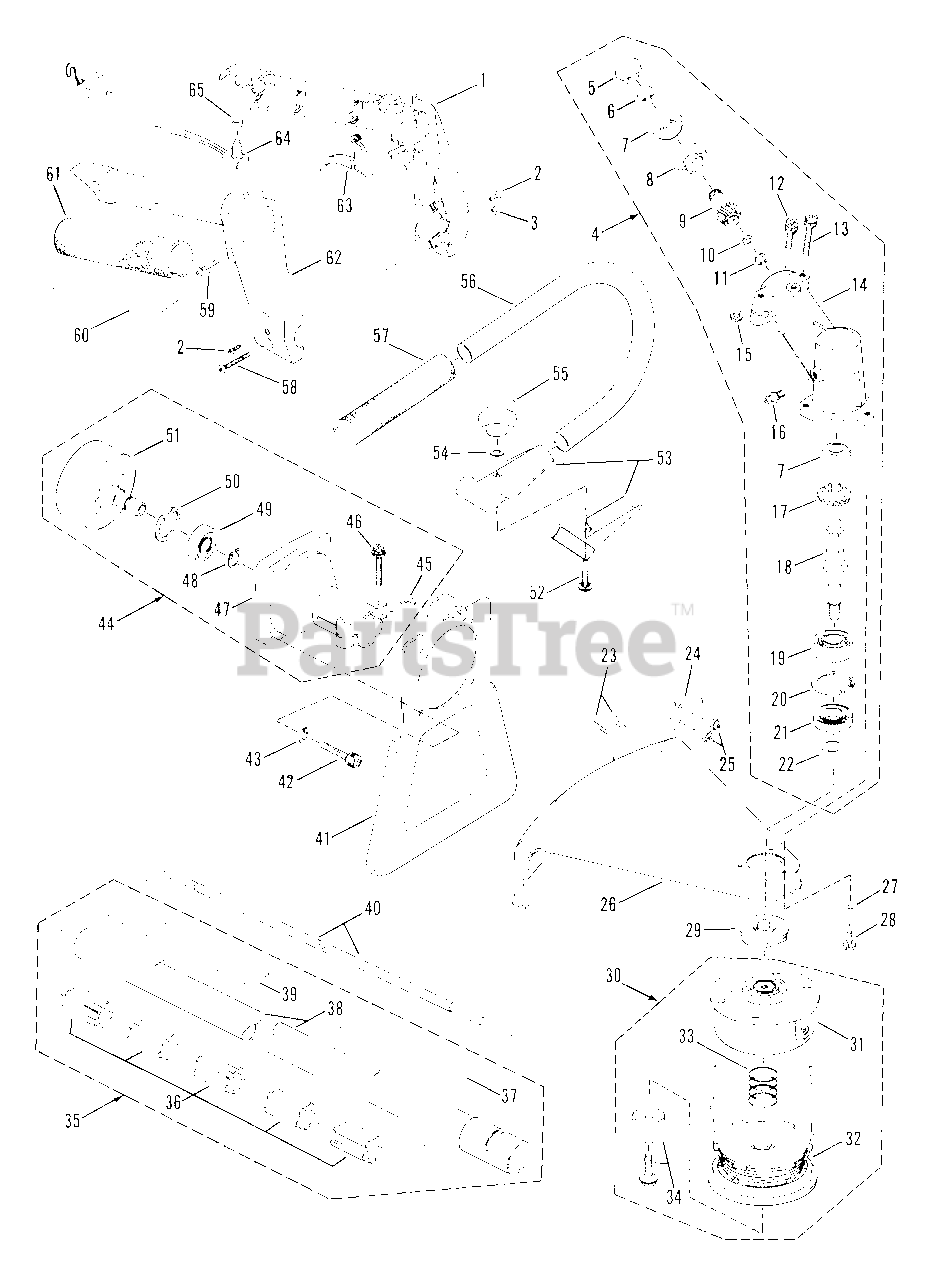

210SS Gear Head, Bump Head And Clutch Case Parts Diagram

  • Title

1

Snapper 7019761

HANDLE, Left Half

$

$

Not available

2

Snapper 7090900

SCREW, TORX, #6 x 5/16"

$

$

Not available

3

Snapper 7090885

LOCKNUT, #10-32

$

$

Not available

4

Snapper 7043005

GEAR HEAD ASSM'Y

Note: (Includes items 5 thru 22)

$

$

Not available

5

Snapper 7043026

SNAP RING, 26mm

$

$

Currently unavailable

6

Snapper 7043027

SNAP RING, 10mm

$

$

Currently unavailable

7

Snapper 7043914

BEARING

$

$

Not available

8

Snapper 7043025

BEARING

$

$

Currently unavailable

9

Snapper 7043021

BEVEL PINION

$

$

Currently unavailable

10

Snapper 7043031

WASHER, Flat

$

$

Currently unavailable

11

Snapper 7043030

SNAP RING, 10mm

$

$

Currently unavailable

12

Snapper 7043029

BOLT, M5 x 12mm Hex Hd.

$

$

Currently unavailable

13

Snapper 7043028

BOLT, M5 x 25mm Hex Hd.

$

$

Currently unavailable

14

Snapper 7043019

GEAR CASE

$

$

Not available

15

Snapper 7043032

SHIM

$

$

Currently unavailable

16

Snapper 7043937

FITTING, Lube

$

$

Not available

17

Snapper 7043022

BEVEL GEAR

$

$

Currently unavailable

18

Snapper 7043020

SPLINE SHAFT

$

$

Currently unavailable

19

Snapper 7043913

BEARING

$

$

Not available

20

Snapper 7043917

SNAP RING, 35mm

$

$

Not available

21

Snapper 7043912

SEAL, Oil

$

$

Not available

22

Snapper 7043023

SPLINE SLEEVE

$

$

Currently unavailable

23

Snapper 90916

SCREW, #10-32 x 5/8"

$

$

Currently unavailable

24

Snapper 32443

CUTTER,Line

$

$

Currently unavailable

25

Snapper 7090885

LOCKNUT, #10-32

$

$

Not available

26

Snapper 7016007

SHIELD

$14.99

$

Usually ships in 2-12 days

0

27

Snapper 7015240

SPACER

$

$

Not available

28

Snapper 7043014

BOLT, M5 x 16mm

$

$

Not available

29

Snapper 7015683

HOLDER

Note: Was 43007

$

$

Currently unavailable

30

Snapper 68037

BUMP HEAD ASSM'Y.

Note: (Includes items 31 thru 34)

$

$

Currently unavailable

31

Snapper 7042073

HUB

$

$

Currently unavailable

32

Snapper 7068050

SPOOL & LINE

$

$

Currently unavailable

33

Snapper 7042074

SPRING
(Superseded to 7042074YP)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7068049

KNOB & BOLT
(Superseded to 7068049YP)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 7057446

ASSEMBLY, Tubing & Bushings

Note: (Includes items 36 thru 39)

$

$

Currently unavailable

36

Snapper 7015517

BEARING ASSM'Y.

$2.49

$

Usually ships in 2-12 days

0

37

Snapper 7015169

DECAL-WARNING (Eye Protection)

$

$

Currently unavailable

38

Snapper 7057461

TUBE-DECAL ASSM'Y.

Note: (Includes items 37 & 39)

$

$

Currently unavailable

39

Snapper 7015083

DECAL-SNAPPER

$

$

Not available

40

Snapper 7015467

SHAFT, Main (55.12"x.25", .2" square ends x 1")

$

$

Currently unavailable

41

Snapper 7036175

STAND, Engine
(Superseded to 7036175YP)

$29.99

$

Usually ships in 2-12 days

0

42

Snapper 7043930

SCREW, M6 x 25mm Socket

$

$

Currently unavailable

43

Snapper 7090052

LOCKWASHER
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

44

Snapper 7043074

CLUTCH CASE ASSM'Y.

Note: (Includes items 45 thru 51)

$

$

Currently unavailable

45

Snapper 7043078

WASHER, Shim

$

$

Currently unavailable

46

Snapper 7043077

BOLT, M5 x 25mm Hex Hd., W/Washers

$

$

Currently unavailable

47

Snapper 7043075

CASE, Clutch

$

$

Currently unavailable

48

Snapper 7043919

SNAP RING, 12mm

$

$

Not available

49

Snapper 7043915

BEARING

$

$

Currently unavailable

50

Snapper 7043918

SNAP RING, 28mm

$

$

Not available

51

Snapper 7043076

DRUM, Clutch

$

$

Currently unavailable

52

Snapper 7090861

SCREW, 5/16C x 1 3/4"

$

$

Not available

53

Snapper 7051554

CLAMP, Half

$

$

Currently unavailable

54

Snapper 7090188

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

55

Snapper 7015087

KNOB

$

$

Currently unavailable

56

Snapper 7036137

HANDLE, "J"

$

$

Currently unavailable

57

Snapper 7015070

GRIP, "J"

$

$

Currently unavailable

58

Snapper 7090901

SCREW, #10-32 x 7/8"

$

$

Not available

59

Snapper 7090902

SCREW, #10-16 x 3/4"

$

$

Not available

60

Snapper 7015134

STRIP, Adhesive

$

$

Not available

61

Snapper 7015091

GRIP, Handle

$

$

Currently unavailable

62

Snapper 7017003

HANDLE, Right Half

Note: Was 19760

$

$

Not available

63

Snapper 7018854

TRIGGER

Note: Was 18726

$3.49

$

Usually ships in 2-12 days

0

64

Snapper 7018890

SWITCH

Note: Was 18827 (Now 18890 + 15620)

$

$

Not available

65

Snapper 15132

CAP, Switch

$

$

Currently unavailable
