210 SS (86227) - Snapper String Trimmer 210SS Fuel Tank, Filter, Primer Pump And Clutch Parts Diagram

String Trimmer

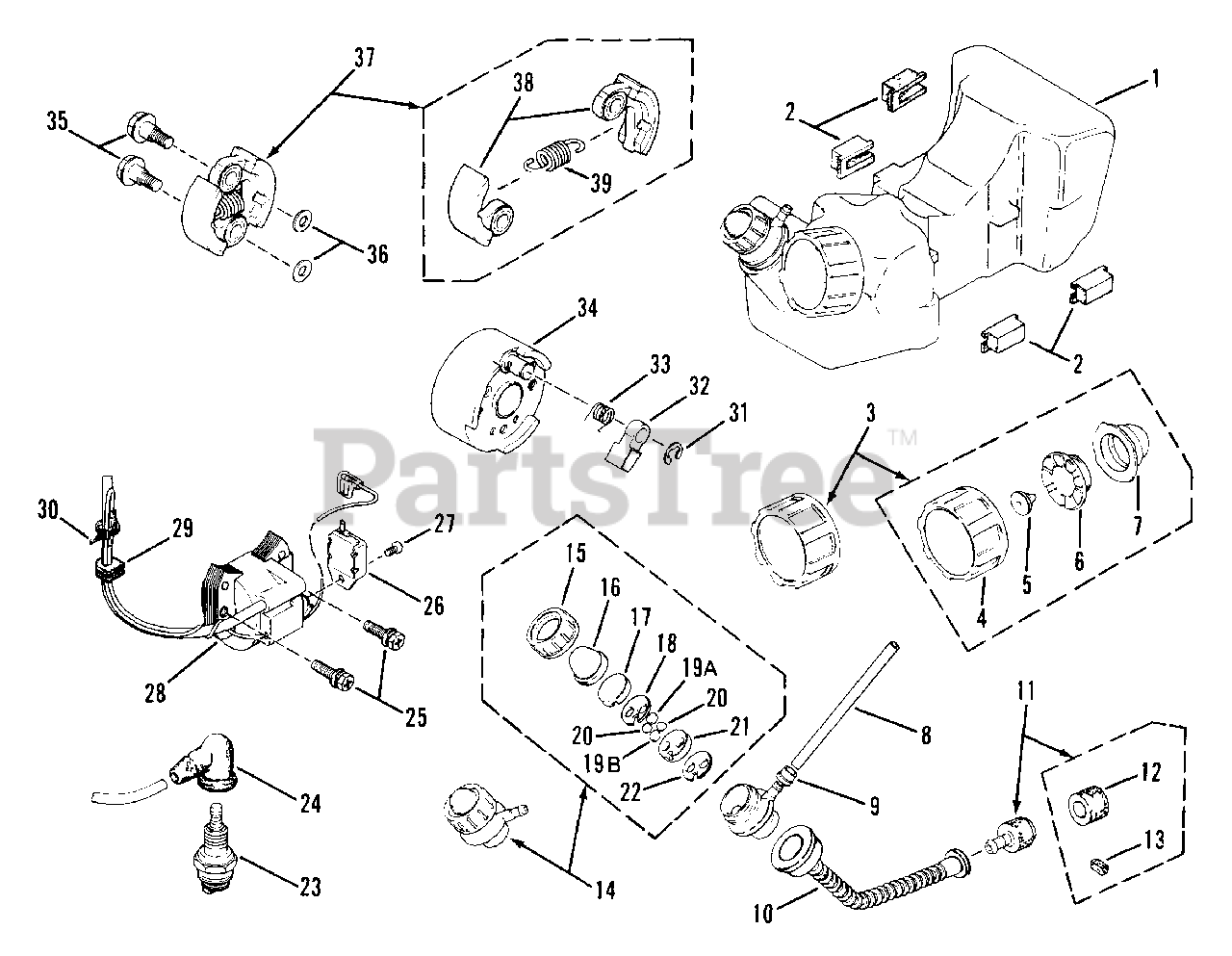

210SS Fuel Tank, Filter, Primer Pump And Clutch Parts Diagram

  • Title
1

Snapper 7044414

TANK ASSM'Y., Fuel

Note: (Includes items 3, 8 thru 11 & 14)

$

$

Not available

2

Snapper 7044382

PAD, Fuel Tank

$

$

Not available

3

Snapper 7044150

CAP ASSM'Y.

Note: (Includes items 4 thru 7)

$

$

Not available

4

Snapper 7044150

CAP FUEL

Note: Was 44149

$

$

Not available

5

Snapper 7044133

VALVE, Breather

$

$

Not available

6

$

$

Currently unavailable

7

Snapper 7044150

GASKET

Note: Was 44135

$

$

Not available

8

Snapper 7044381

TUBE, Fuel
(Superseded to 7044381YP)

$2.49

$

Usually ships in 2-12 days

0

9

Snapper 7044127

CLIP, Fuel Tube

$

$

Not available

10

Snapper 7044238

HOSE, Fuel

$

$

Not available

11

Snapper 7044125

FILTER ASSM'Y., Fuel

Note: (Includes items 12 & 13)

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

Snapper 7044129

PRIMER PUMP ASSM'Y.

Note: (Includes items 15 thru 22)

$

$

Not available

15

Snapper 7044090

CAP, Pump

$

$

Not available

16

Snapper 7044118

CAP, Rubber

$

$

Not available

17

Snapper 7044119

SEAT, Valve B

$

$

Not available

18

$

$

Not available

19A

$

$

Not available

19B

$

$

Not available

20

$

$

Not available

21

Snapper 7044123

SEAT, Valve A

$

$

Not available

22

$

$

Not available

23

SPARK PLUG (Champion CJ8)

$

$

Not available

24

Snapper 7044031

BOOT, Spark Plug

$

$

Currently unavailable

25

Snapper 7044306

BOLT/WASHER

$

$

Currently unavailable

26

Snapper 7044391

UNIT, Transistor
(Superseded to 7044391YP)

$67.99

$

Usually ships in 2-12 days

0

27

$

$

Currently unavailable

28

Snapper 7044394

COIL, Ignition
(Superseded to 7044394YP)

$85.99

$

Usually ships in 2-12 days

0

29

Snapper 7044393

GROMMET

$

$

Currently unavailable

30

Snapper 7012080

BAND
(Superseded to 7012080SM)

Note: Was 44046

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7044389

SNAP RING

$

$

Currently unavailable

32

Snapper 7044388

RATCHET
(Superseded to 7044388YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7044387

SPRING, Ratchet

$

$

Not available

34

$

$

Currently unavailable

35

Snapper 7044368

BOLT, Clutch

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Snapper 7044369

CLUTCH ASSM'Y.

Note: (Includes items 38 & 39)

$

$

Not available

38

Snapper 7044366

SHOE, Clutch

$

$

Not available

39

$

$

Currently unavailable
