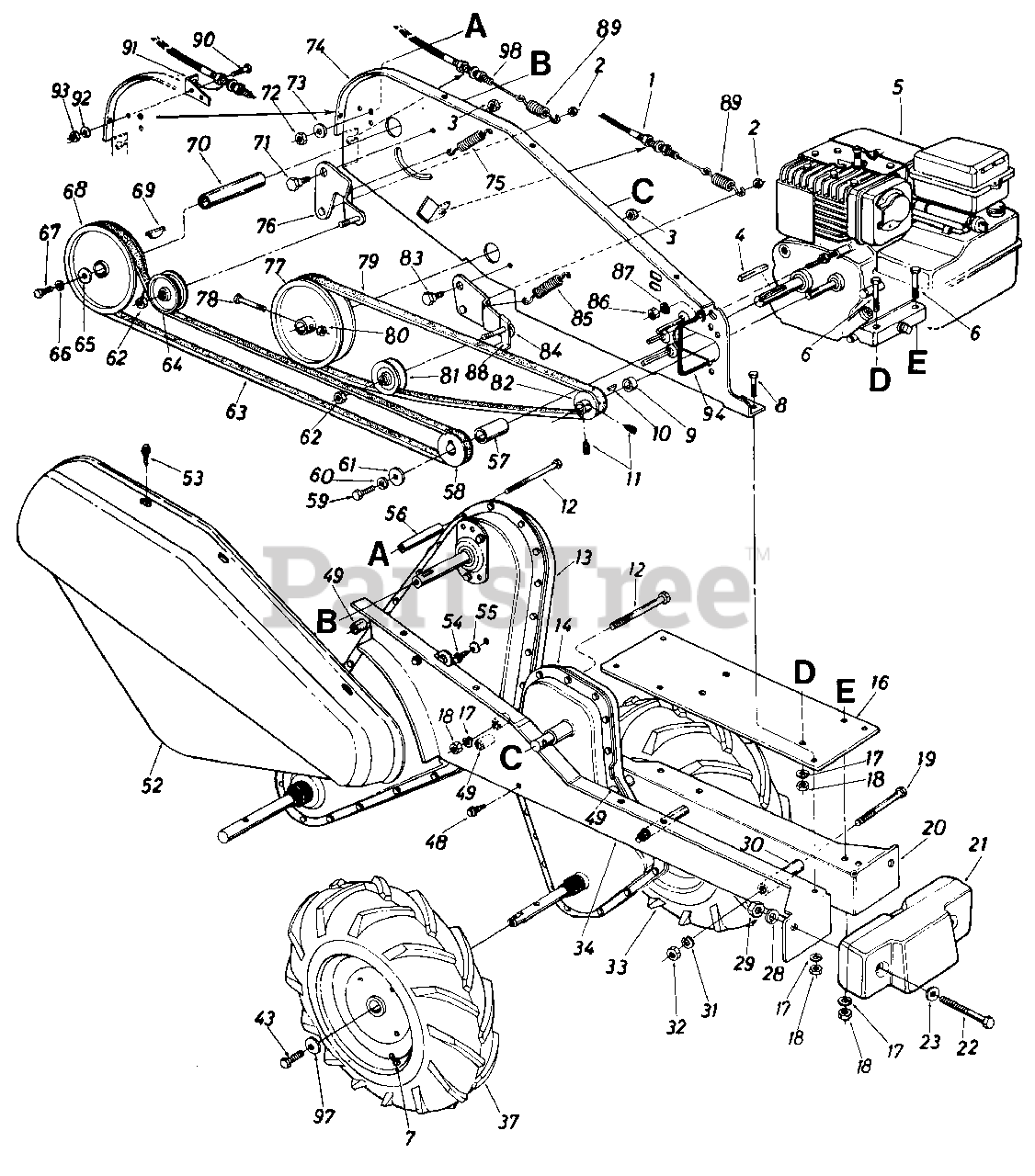

210-405-206 - MTD Tiller (1990) (Mid States Distributor) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 746-0484

Clutch Control Cable
(Superseded to 946-0484)

Note: (Wheels)

$66.99

$

In Stock, Qty 10

0

2

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

MTD 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

4

MTD 714-0122

Sq. Key 3/16" Dia. x .75

$3.99

$

In Stock, Qty 20+

0

5

Engine

$

$

Not available

6

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

MTD 711-0494

Spacer .51" I.D. x 3/4" O.D. x .39" Lg.

$

$

Not available

10

MTD 714-0131

Hi-Pro Key #5 Woodruff

$

$

Not available

11

MTD 710-0938

Set Scr. 1/4-28 x .25" Lg.

$

$

Not available

12

MTD 710-0189

Hex Bolt 5/16-18 x 3.0" Lg.

$6.49

$

In Stock, Qty 5

0

13

MTD 14981

Chain Case Ass'y. Comp. Tines

Variations

MTD 14981-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 14963

Chain Case Ass'y. Comp. Wheels

$

$

Currently unavailable

16

MTD 14973

Engine Mounting Plate

Variations

MTD 14973-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0830

Hex Bolt 3/8-24 x 3.0" Lg.

$

$

Not available

20

MTD 14975

Frame Rail L.H.

Variations

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 723-0340

Counter Weight

$

$

Not available

22

MTD 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.

$16.99

$

Usually ships in 3-6 days

0

23

MTD 736-0326

Fl-Wash. 1/2" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

28

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

29

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

30

MTD 750-0579

Spacer 3/8" I.D. x 5/8" O.D. x 2.18" Lg.

$

$

Currently unavailable

31

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

MTD 734-1377

Comp. Wheel Ass'y. L.H.

$

$

Not available

MTD 734-1376

Rim Ass'y.

$

$

Currently unavailable

MTD 734-1154

Tire Only
(Superseded to 734-1154-0901)

Variations

MTD 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)

$

$

Not available

MTD 734-1154-0902

TIRE-13X5.0-6 - Dico (0902)

$

$

Not available

$

$

34

MTD 14974

Frame Rail R.H.

Variations

MTD 14974-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 734-1378

Comp. Wheel Ass'y. R.H.

$

$

Currently unavailable

MTD 734-1376

Rim Ass'y.

$

$

Currently unavailable

MTD 734-1154

Tire Only
(Superseded to 734-1154-0901)

Variations

MTD 734-1154-0901

TIRE-13X5.0-6 - Carlisle (0901)

$

$

Not available

MTD 734-1154-0902

TIRE-13X5.0-6 - Dico (0902)

$

$

Not available

$

$

43

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

48

MTD 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

49

MTD 750-0470

Spacer 5/16" I.D. x 16 Ga. x.96" Lg.

$6.99

$

Usually ships in 3-6 days

0

52

MTD 14980A

Belt Cover

Variations

MTD 14980A-0498

No Longer Available COVER-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14980A-0637

No Longer Available COVER-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 14980A-0638

No Longer Available COVER-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14980A-0662

No Longer Available COVER-BELT - OYSTER GRAY (0662)

$

$

Not available

MTD 14980A-0665

No Longer Available COVER-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

53

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0653

Hex Wash. S-Tap Scr. 1/4-20 x 3/8" Lg.

$4.49

$

In Stock, Qty 8

0

55

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

56

MTD 750-0219

Spacer 3/8" I.D. x 1/2" O.D. x 2.0" Lg.

$

$

Currently unavailable

57

MTD 750-0442

Spacer 3/4" I.D. x 1.12" O.D. x 1.56" Lg.

$

$

Not available

58

MTD 756-0396

1/2" "V"-4L Pulley 3/4n I.D. x 2.59" O.D.

$

$

Not available

59

MTD 710-0117

Hex Bolt 5/16-24 x 1.0" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

MTD 736-0343

Fl-Wash. 5/16" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

62

MTD 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

63

MTD 754-0195A

"V"-Belt
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

64

MTD 756-0405

Fl-ldler Pulley 3.75" O.D. x 3/8" 1.D.

$71.99

$

Usually ships in 3-6 days

0

65

MTD 736-0176

Fl-Wash. .25" I.D. x .93" O.D. x .120

$4.99

$

In Stock, only 4 left!

0

66

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

67

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

68

MTD 756-0389A

Split Pulley 6" Dia. x 5/8" I.D.

$

$

Not available

69

MTD 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

70

MTD 750-0472

Spacer

$

$

Not available

71

MTD 738-0183

Shld. Bolt 1/2" Dia. x .210n Lg.
(Superseded to 938-0183)

$

$

Not available

72

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

MTD 14991

Side Plate Ass'y.

$

$

Not available

75

MTD 732-0445

Ext. Spring .50" O.D. x 1.55

$8.99

$

In Stock, only 2 left!

0

76

MTD 14971

Idler Bracket Ass'y. Tines

$

$

Currently unavailable

77

MTD 756-0387A

Pulley 6" Dia. x 5/8" I.D.

$

$

Currently unavailable

78

MTD 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.

$

$

Not available

79

MTD 754-0109

"V"-Belt
(Superseded to 954-0109)

$42.99

$

In Stock, Qty 6

0

80

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

81

MTD 756-0166

"V"-ldler Pulley 2-518n O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

82

MTD 756-0386A

1/2" "V"-Pulley 21/4' O.D. x .50" I.D.

$

$

Not available

83

MTD 738-0147

Shld. Bolt 1/2" Dia. x .160" Lg.

$

$

Not available

84

MTD 14969

Idler Bracket Ass'y Wheels

$

$

Not available

85

MTD 732-0445

Ext. Spring .50" O.D. x 1.55" Lg.

$8.99

$

In Stock, only 2 left!

0

86

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

87

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

88

MTD 15399

Belt Keeper Ass'y.

$

$

Not available

89

MTD 732-0387

Ext. Spring

$

$

Not available

90

MTD 710-0118

Hex Bolt 5/16-18 x .75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

91

MTD 15093C

Clutch Cable Brkt.

$

$

Not available

92

MTD 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

93

MTD 712-0267

Hex Nut 5/16-18 Thd .
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

94

MTD 747-0507

Belt Keeper

$

$

Currently unavailable

97

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

98

MTD 746-0535

Clutch Control Cable
(Superseded to 946-0535)

Note: (Tines)

$69.99

$

In Stock, Qty 10

0
