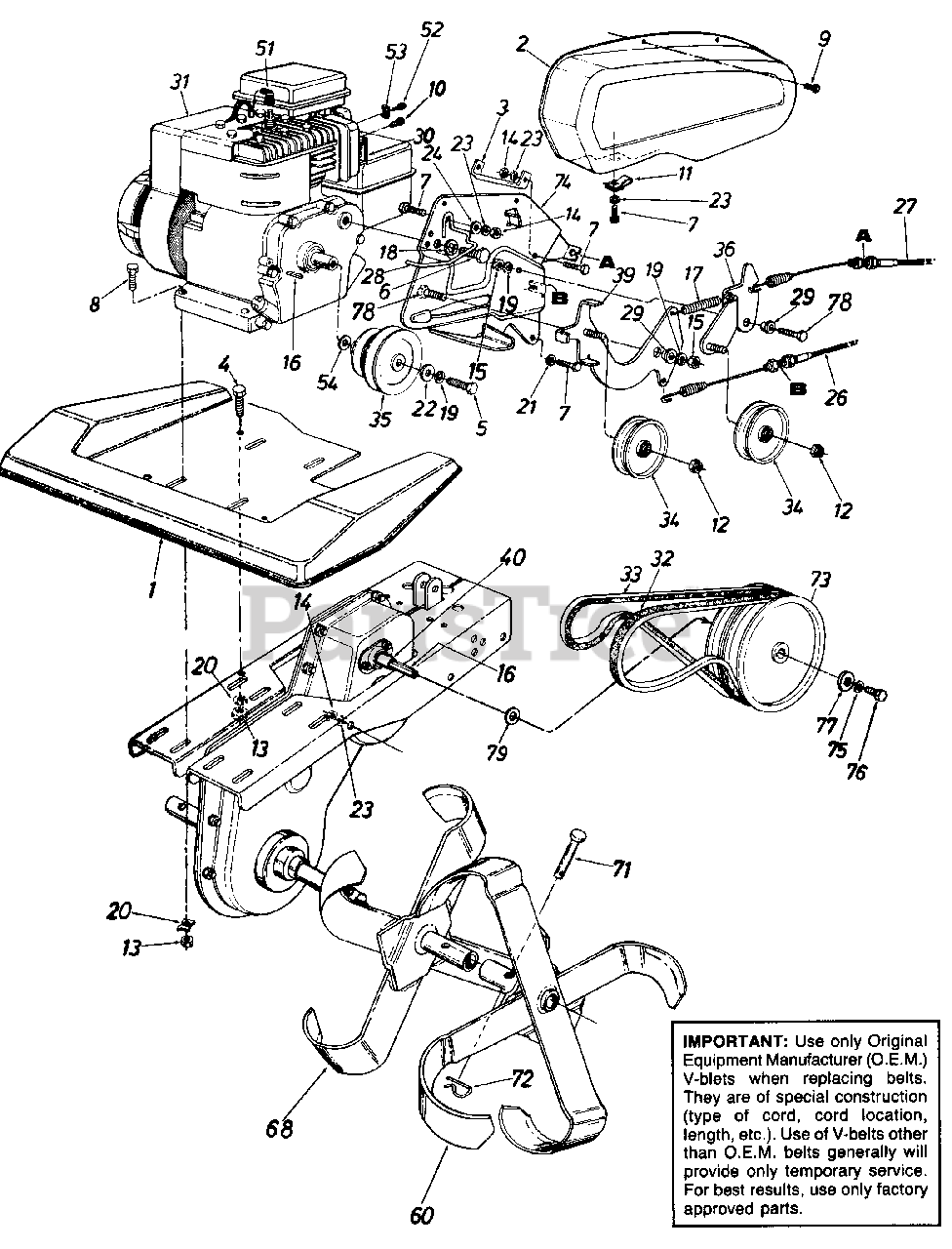

210-381-205 - Garden King Tiller (1990) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 04598

Tine Shield

Variations

MTD 04598-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 04598-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 06796

Belt Guard

Variations

MTD 06796-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 06801

Support Brkt.

$

$

Currently unavailable

4

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

6

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

7

MTD 710-0252

Hex Bolt 1/4-20 x .85" Lg.*
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/420 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0783

Hex Wash. Hd. Slotted Scr. #8-32 x .38"

$

$

Not available

11

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

12

MTD 712-0262

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

MTD 714-0133

Sq. Key 3/16 x 1.5" Lg.

$4.99

$

In Stock, Qty 12

0

17

MTD 732-0209

Extension Spring 2.03 Lg.
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

18

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

21

MTD 736-0175

Spr. Wash. .265" I.D. x .562" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

22

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D. x 1.27"

$4.49

$

Usually ships in 3-6 days

0

23

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

MTD 736-0463

Fl-Wash. .25 I.D. x .62 O.D.

$4.49

$

In Stock, Qty 12

0

26

MTD 746-0622B

Clutch Control Cable

Note: (Reverse)

$

$

Not available

27

MTD 746-0621B

Clutch Control Cable
(Superseded to 946-0621B)

Note: (Forward)

$

$

Not available

28

MTD 747-0181

Belt Guard Rod

$

$

Currently unavailable

29

MTD 738-0372

Shld. Spacer .380 I.D.
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

30

MTD 751-0233

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

31

Engine

$

$

Not available

32

MTD 754-0154

V-Belt
(Superseded to 954-0154)

Note: (Forward)

$38.99

$

In Stock, only 2 left!

0

33

MTD 754-0201

V-Belt
(Superseded to 954-0201)

Note: (Reverse)

$35.99

$

In Stock, only 1 left!

0

34

MTD 756-0225

Fl-ldler w/Flanges 3.12 O.D. x .75

$

$

Not available

35

MTD 756-0261

Engine Pulley

$

$

Currently unavailable

36

MTD 784-0267

Idler Brkt. Ass'y.

Variations

MTD 784-0267-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 784-0251

Reverse Idler Brkt. Ass'y.

$

$

Not available

40

MTD 750-0229

Spacer .635 I.D.
(Superseded to 950-0229)

$

$

Not available

51

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

52

MTD 710-0899A

Hex Sems Scr. #10-32 x .62" Lg.

$6.99

$

Usually ships in 3-6 days

0

53

MTD 751-0360A

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

54

MTD 736-0315

Fl-Wash. .75" I.D. x 1.5 O.D. x .12n

$6.99

$

In Stock, Qty 6

0

60

MTD 784-0093

Outer Tine Ass y. Comp. L.H.

Variations

MTD 784-0093-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0094

Outer Tine Ass'y. Comp. R.H.
(Superseded to 784-0094-0637)

Note: (Not Shown)

Variations

MTD 784-0094-0637

Outer Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

68

MTD 784-0091

Inner Tine Ass'y. L.H.

Variations

MTD 784-0091-0637

Inner Tine Ass'y. Comp. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0092

Inner Tine Ass'y. R.H.

Note: (Not Shown)

Variations

MTD 784-0092-0637

Inner Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 1545-029B

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

72

MTD 714-0149B

Intern. Cotter Pin

$4.49

$

In Stock, Qty 18

0

73

MTD 756-0262

Transmission Pulley 6" Dia.

$

$

Currently unavailable

74

MTD 784-0269

Clutch Mtg. Plate

$

$

Not available

75

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

76

MTD 710-0643

Patch Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

77

MTD 736-0231

Fl-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

78

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. 0 0 (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

79

MTD 736-0187

Fl-Wash. .635" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0
