210-320-000 - MTD Tiller (1990) Parts02 Parts Diagram

Tiller

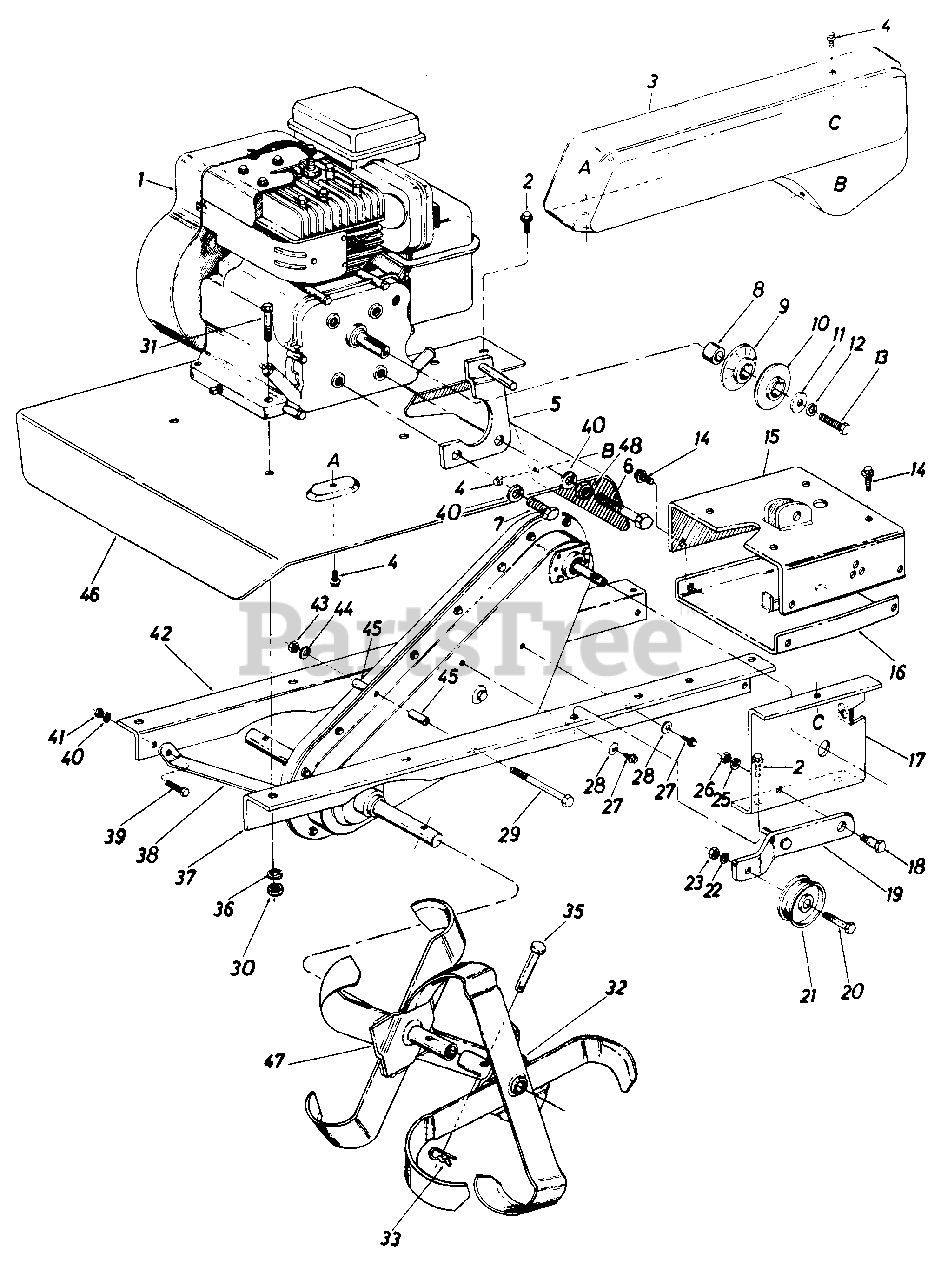

Parts02 Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

3

MTD 04958

480 Belt Cover

$

$

Not available

4

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 784-0114

Belt Keeper Brkt. Ass'y.

$

$

Currently unavailable

6

MTD 710-0593

Hex Bolt 5/16-24 x 2.25 Lg. (Grade 5)

$

$

Not available

7

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg. (Grade 5)

$4.49

$

In Stock, only 1 left!

0

8

MTD 750-0345

Spacer

$

$

Not available

9

MTD 748-0282

Pulley Half

$

$

Not available

10

MTD 748-0282

Pulley Half

$

$

Not available

11

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.25n O.D. x .100

$4.49

$

In Stock, only 3 left!

0

12

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0152

Hex Scr. 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

14

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

15

MTD 04950

Handle Mounting Brkt. Ass'y.

$

$

Not available

16

MTD 04943

U-Channel Brkt. Ass'y.

$

$

Currently unavailable

17

MTD 04934

Idler Mounting Brkt.

$

$

Not available

18

MTD 738-0322

Shld. Bolt
(Superseded to 738-0322A)

$6.99

$

In Stock, only 2 left!

0

19

MTD 784-0027

Idler Brkt. Ass'y.

$

$

Currently unavailable

20

MTD 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, only 1 left!

0

21

MTD 756-0137

Idler Pulley

$

$

Not available

22

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0342

Hex Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0342

Hex Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

27

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0270

Belleville Washer. .26 I.D. x .75 O.D. x .060

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-0189

Hex Scr. 5/16-18 x 3.0" Lg.

$6.49

$

In Stock, Qty 5

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

32

See Tine Chart

$

$

Not available

33

7140149B

Hairpin Cotter

$

$

Not available

35

MTD 1545-029

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

36

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 04949B

Frame Rail L.H.

$

$

Not available

38

MTD 04933

Front Brace Brkt.

$

$

Currently unavailable

39

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

42

MTD 04948B

Frame Rail R.H.

$

$

Not available

43

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

46

MTD 04941

480 Tine Shield

$

$

Not available

47

See Tine Chart

$

$

Not available

MTD 784-0092

Inner Tine Ass'y. Comp. R.H.

Variations

MTD 784-0092-0637

Inner Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0094

Outer Tine Ass'y. Comp. R.H.
(Superseded to 784-0094-0637)

Variations

MTD 784-0094-0637

Outer Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0091

Inner Tine Ass"y. Comp. L.H.

Variations

MTD 784-0091-0637

Inner Tine Ass'y. Comp. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0093

Outer Tine Ass'y. Comp. L.H.

Variations

MTD 784-0093-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0
