210 (190-210-100) - Cub Cadet Triple Rear Bagger att Discharge Chute Parts Diagram

Triple Rear Bagger

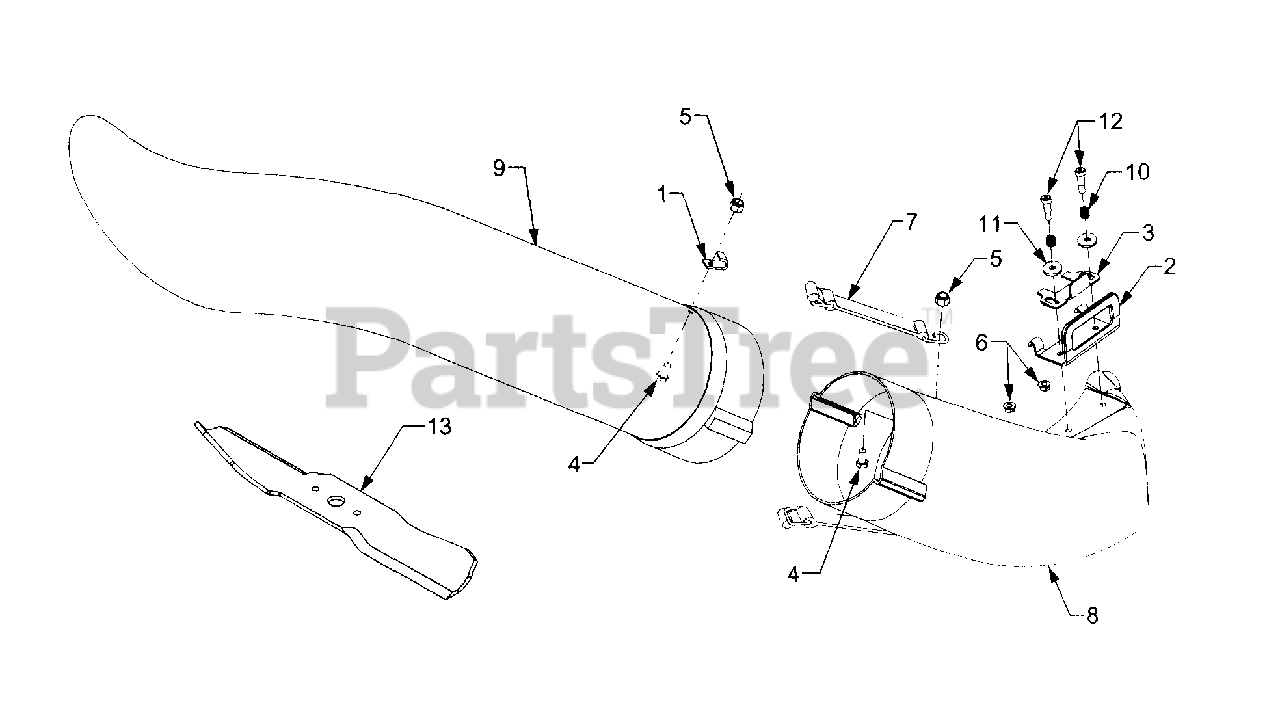

Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 703-3538

Bracket, Chute

$73.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-3604

Latch, Chute

$29.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 723-0383

Strap Assembly, Retainer
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

Cub Cadet 732-0695

Wire Hook, Eyelet

$3.49

$

In Stock, only 2 left!

0

Cub Cadet 732-0696

Wire Hook, Rectangular

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-3319

Chute, Discharge
(Superseded to 731-3319B)

$

$

Not available

9

Cub Cadet 731-3331

Tube, Chute
(Superseded to 731-3331A)

$121.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-0334

Spring, Compression, .5 x .5 Lg.

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0247

Washer, Flat, 3/8 x 1.25

$9.49

$

In Stock, Qty 14

0

12

Cub Cadet 738-3174

Screw, Shoulder 3/8 x .625: 5/16-18

$16.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 759-3949

Blade, High Lift
(Superseded to 742P3038)

$30.99

$

Usually ships in 3-6 days

0
