210 (190-210-100) - Cub Cadet Triple Rear Bagger att Bag, Frame And Support Parts Diagram

Triple Rear Bagger

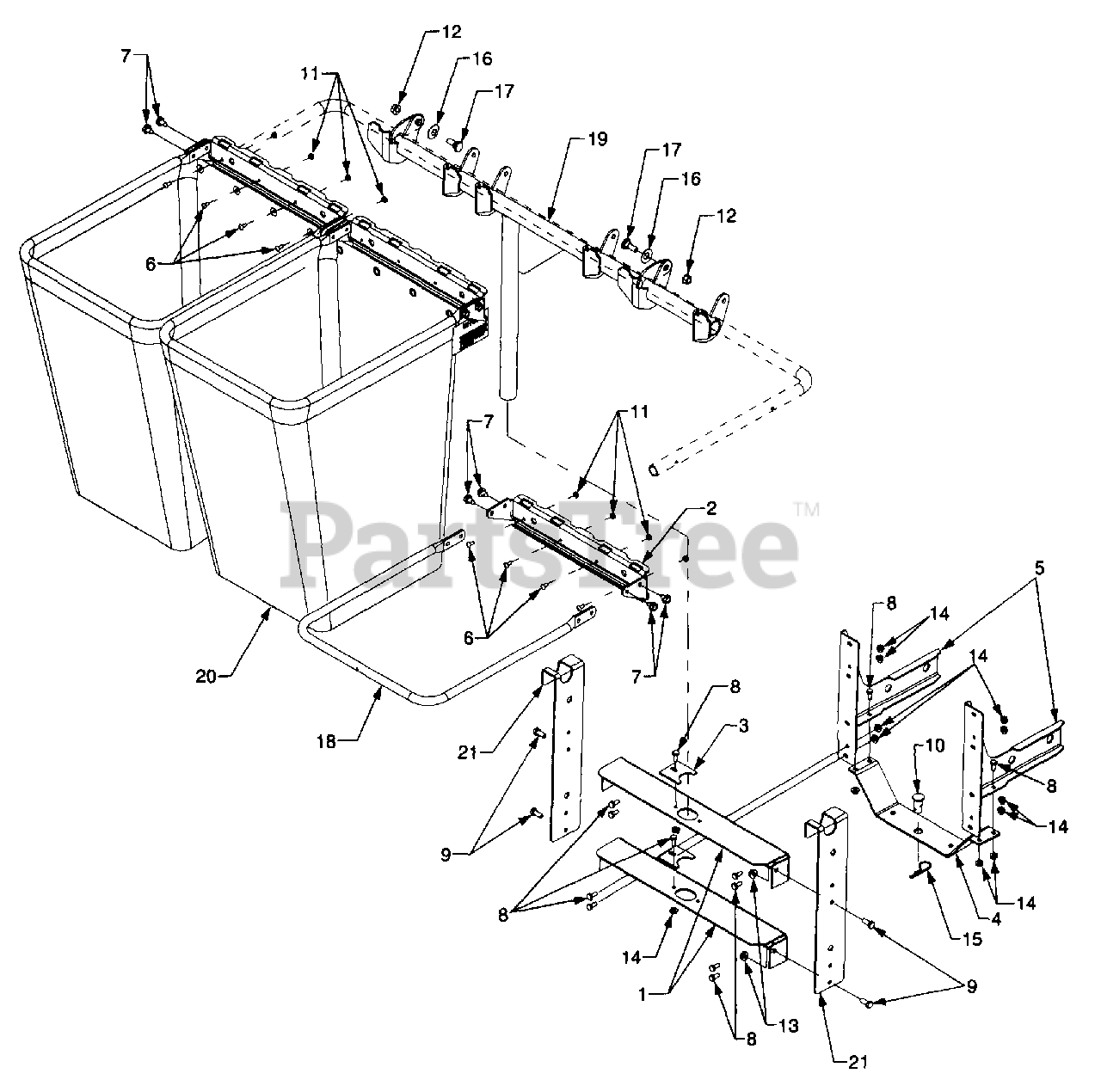

Bag, Frame And Support Parts Diagram

  • Title
1

Cub Cadet 17200A-0637

Bracket, Catcher Support

$

$

Not available

2

Cub Cadet 17201A-0637

Bracket, Bag Frame Hanger

$71.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 17247-0637

Bracket, Support Tube Adapter

$17.99

$

Usually ships in 3-6 days

0

4

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2490-0637

Bracket, Frame Support

$87.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0473

Screw, Truss Hd. Mach. 10-24 x .5

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0309A

Pin, Clevis, .62 Diam.

$12.99

$

In Stock, Qty 7

0

11

Cub Cadet 712-0272

Nut, Hex Sems, 10-24

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 736-0255

Washer, Belleville, .51 x 1.14 x .04

$4.99

$

In Stock, only 3 left!

0

17

Cub Cadet 738-0380

Screw, Shoulder .50 x .27: 3/8-16

$7.99

$

In Stock, only 1 left!

0

18

Cub Cadet 749-0745A-0637

Tube, Grass Bag Frame

$

$

Not available

19

Cub Cadet 749-0750-0637

Support Tube Assembly
(Superseded to 689-00002-0637)

$

$

Not available

20

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

21

Cub Cadet 783-0601-0637

Bracket, Tube Assembly Support

$35.99

$

Usually ships in 3-6 days

0
