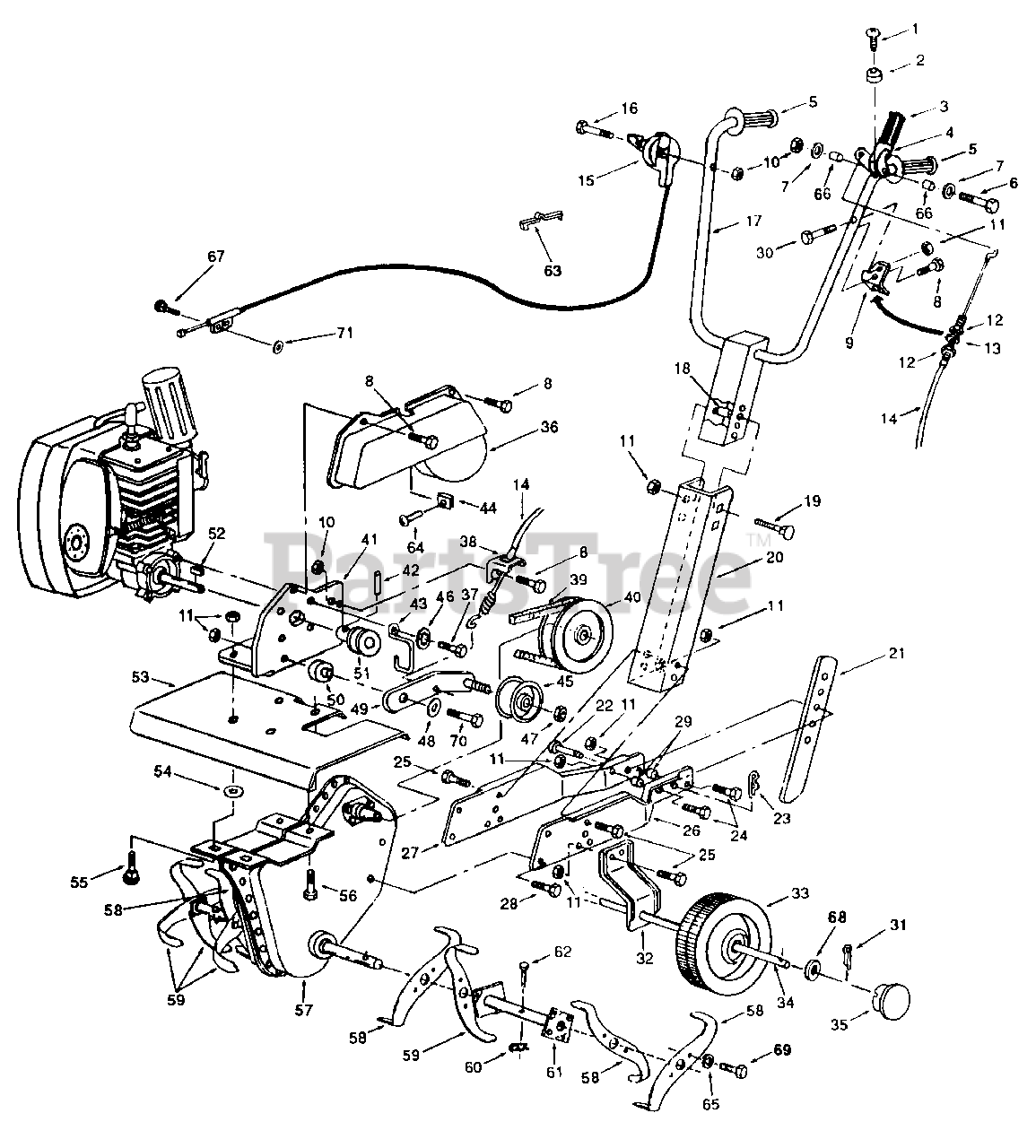

210-020-000 - MTD Tiller (1990) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 706-10125-08

Tap Scr. #10-16 x 1/2

$

$

Not available

2

MTD 706-14513

Rubber Bumper

$

$

Not available

3

MTD 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

MTD 706-14435-00-90

N Clutch Lever Ass'y.
(Superseded to 686-0002-0637)

$40.99

$

Usually ships in 3-6 days

0

5

MTD 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

6

MTD 710-0501

Hex Bolt 1/4-20 x 2"

$7.49

$

Usually ships in 3-6 days

0

7

MTD 706-10008

Fl-Wash. 1/4" I.D.
(Superseded to 736-3090)

$6.99

$

In Stock, Qty 11

0

8

MTD 706-14546-08

Hex Tap Scr. 1/4-20 x 1/2

$

$

Not available

9

MTD 15093C

Cable Bracket

$

$

Not available

10

MTD 712-0324

Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

MTD 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

15

MTD 706-14433

Throttle Control

$

$

Not available

16

MTD 710-0606

Hex Bolt 1/4-20 x 1-1/2"

$5.49

$

In Stock, Qty 10

0

17

MTD 706-14413-00-90

Handle Ass'y.

$

$

Not available

18

MTD 706-14409

Spacer

$

$

Not available

19

MTD 710-0572

Carr. Bolt 5/16-18 x 2-1/2"

$4.49

$

In Stock, Qty 20+

0

20

MTD 706-14410-00-90

Handle Channel Frame

$

$

Not available

21

MTD 04764

Depth Stake

Variations

MTD 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

MTD 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

24

MTD 710-0376

Hex Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0759

Hex Bolt 5/16-18 x 5/8"

$6.99

$

Usually ships in 3-6 days

0

26

MTD 706-14427-00-90

R.H. Frame Half

$

$

Not available

27

MTD 706-14428-00-90

L.H. Frame Half

$

$

Not available

28

MTD 710-0607

Hex Tap. Scr. 5/16-18 x 1 /2"

$6.99

$

In Stock, Qty 11

0

29

MTD 706-14478

N Spacer
(Superseded to 750-0808)

$

$

Not available

30

MTD 710-1090

Hex Bolt 5/16-18 x 1-1/4"

$3.99

$

Usually ships in 3-6 days

0

31

MTD 714-3017

Cotter Pin
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

32

MTD 706-14429-00-90

Wheel Bracket
(Superseded to 786-0012-0637)

$

$

Not available

33

MTD 706-15533-03

Wheel 6"

$

$

Not available

34

MTD 738-0855

Axle Wheel

$

$

Not available

35

MTD 706-15581-00-60

Hub Cap
(Superseded to 720-0258)

$

$

Not available

36

MTD 706-14450-00-61

Belt Cover

$

$

Currently unavailable

37

MTD 710-0258

Hex Bolt 1/4-20 x 5/8"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

38

MTD 706-14446-00-90

Bracket Clutch Lever

$

$

Currently unavailable

39

MTD 706-14524

V-Belt

Note: (Special)

$

$

Not available

40

MTD 756-0287

Pulley Chain Case

$

$

Not available

41

MTD 706-14445-00-90

Plate Engine Mounting

$

$

Currently unavailable

42

MTD 710-3006

Set Screw 5/16-18 x 3/8n

$4.49

$

In Stock, only 1 left!

0

43

MTD 706-14453

Belt Retainer

$

$

Not available

44

MTD 706-10093

Clip Tinnerman

$

$

Not available

45

MTD 756-0199

Flat Idler Pulley

$25.99

$

In Stock, only 2 left!

0

46

MTD 736-0498

Int. L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

47

MTD 712-0116

Hex Jam Thd. L-Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

48

MTD 736-0275

Fl-Wash. 5/16" I.D.

$6.99

$

Usually ships in 3-6 days

0

49

MTD 706-14451-00-90

Idler Arm Ass'y.

$

$

Not available

50

MTD 706-14477

N Pivot Spacer

$

$

Currently unavailable

51

MTD 706-14447

N Engine Pulley

$

$

Not available

52

MTD 706-14505

N Square Key 1/8 x 3/4"

$

$

Not available

53

MTD 706-14449-00-10

Tine Shield (Red)

$

$

Currently unavailable

54

MTD 706-15641

Spacer

$

$

Not available

55

MTD 710-0276

Carriage Bolt 5/16-18 x 1 "

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0118

Hex Bolt 5/16-18 x 3/4"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

57

MTD 04924A

Chain Case Ass'y. Comp.

$

$

Currently unavailable

58

MTD 706-14411-00-08

R.H. Tine Blade

$

$

Not available

59

MTD 706-14411-01-08

L.H. Tine Blade

$

$

Not available

60

MTD 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

61

MTD 706-14420-00-90

Adapter Ass'y. Tine

$

$

Not available

62

MTD 711-0702

Clevis Pin

$

$

Not available

63

MTD 706-10746

Cable Tie Plastic
(Superseded to 726-0306)

$

$

Not available

64

MTD 706-10041-12

Scr. #10-16 x 3/4 Sems
(Superseded to 710-1128)

$

$

Not available

65

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

MTD 706-10024-01

Spacer
(Superseded to 750-0846)

$

$

Not available

67

MTD 706-14544-16

Screw

Note: (Special)

$

$

Not available

68

MTD 736-0185

Fl-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

69

MTD 710-0599

Tap Scr. 1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0442

Hex Bolt 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 706-10000

N Fl-Wash.

$

$

Not available
