21 XPL (31AM2T6D897) - Columbia 21" Snow Thrower (2014) Chute & Crank Parts Diagram

21" Snow Thrower

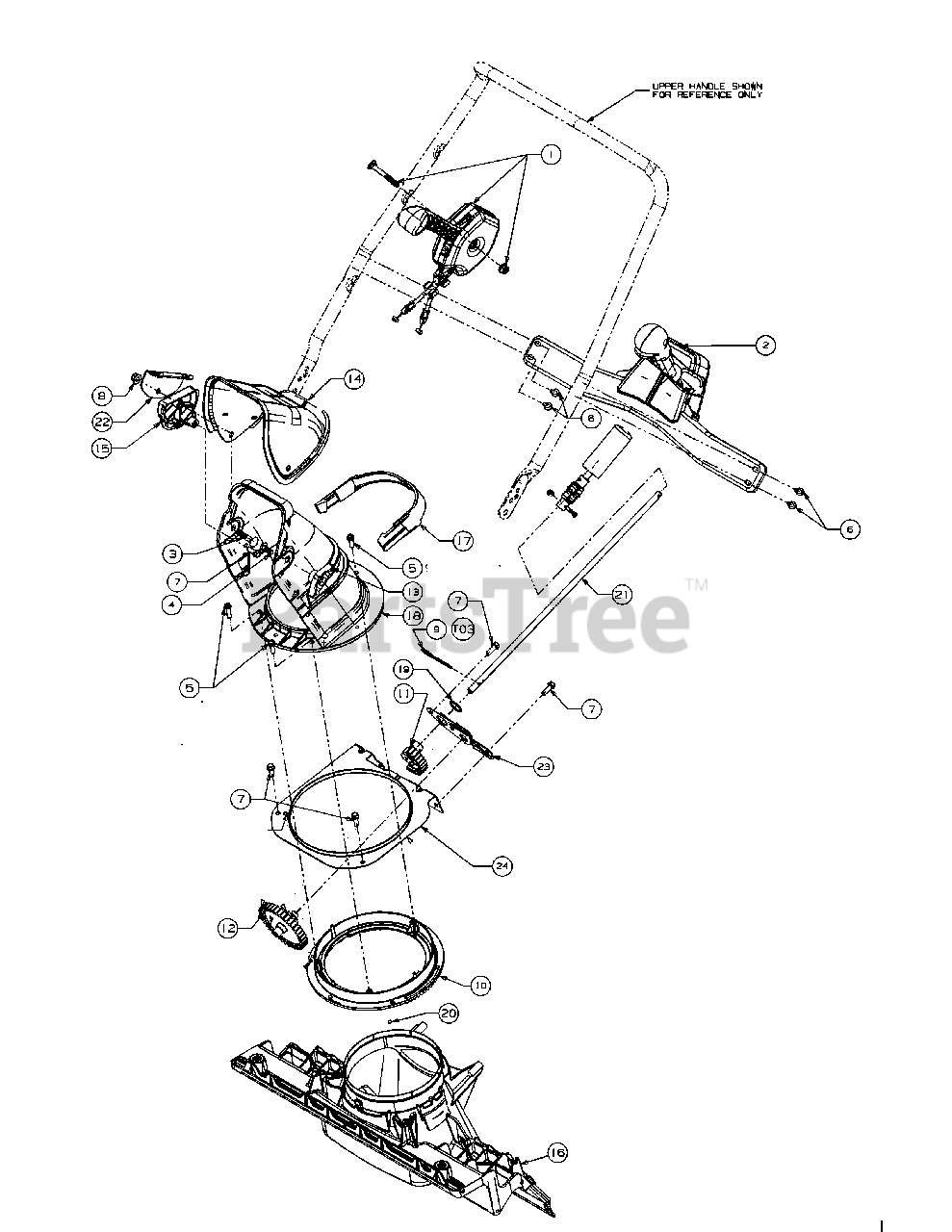

Chute & Crank Parts Diagram

  • Title
1

MTD n/a

Pnl Asm:Chute Tilt

$

$

Currently unavailable

1

MTD 710-05163

Bolt-Crv Hd Crg

$4.49

$

Usually ships in 3-6 days

0

1

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, only 4 left!

0

1

MTD 731-07651

Housing-Chute Control

$9.49

$

In Stock, Qty 7

0

1

MTD 731-07654B

Handle-Chute Tilt

$16.99

$

Usually ships in 3-6 days

0

1

MTD 731-07656A

Housing-Chute Control

$8.99

$

In Stock, Qty 6

0

1

MTD 731-07868

Clip-Cable

$3.49

$

In Stock, Qty 13

0

1

MTD 946-04722

Cable-2 Way Chute

$28.99

$

In Stock, Qty 7

0

1

MTD 750-05414A

Spacer .325X.496X

$3.49

$

Usually ships in 3-6 days

0

2

MTD 684-04401

Handle Asm-Chute R
(Superseded to 984-04401)

$159.99

$

Usually ships in 3-6 days

0

3

MTD 710-0262

Bolt-Carriage 5/16

$3.99

$

In Stock, Qty 11

0

4

MTD 710-0451

Carriage Bolt 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-05108

Screw-Hex Indwsh B

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Screw-Hex Wash Sf

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0895

Screw-Hex Tap 1/4

$6.49

$

Usually ships in 3-6 days

0

8

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, only 4 left!

0

9

MTD 714-04003

Pin-Cotter .125X2.

$8.49

$

Usually ships in 3-6 days

0

10

MTD 917-04844B

Gear-Bevel 95T

$35.99

$

Usually ships in 3-6 days

0

11

MTD 717-04940

Gear-Spur

$13.99

$

Usually ships in 3-6 days

0

12

MTD 717-04941

Spur-Gear 40T

$19.99

$

Usually ships in 3-6 days

0

13

MTD 720-04122

Knob-Wing 5/16-18

$6.99

$

In Stock, Qty 12

0

14

MTD 931-04425B

Chute-Upper:W/

$22.99

$

Usually ships in 3-6 days

0

15

MTD 731-06451

Guide-Cable Chute

$4.99

$

In Stock, Qty 16

0

16

MTD 931-07626B

Adapter-Chute

$42.99

$

Usually ships in 3-6 days

0

17

MTD 731-07708

Plug-Chute W/O

$13.99

$

Usually ships in 3-6 days

0

18

MTD 931-07753A

Chute-Lower

$35.99

$

Usually ships in 3-6 days

0

19

MTD 736-04161

Washer-Flat .75X1

$6.99

$

In Stock, only 1 left!

0

20

MTD n/a

Grease

Note: (purchase locally)

$

$

Currently unavailable

21

747-05299a

Rod-Chute Crank Lo

$

$

Not available

22

MTD 784-5594-0637

Bracket-Cable

$11.99

$

In Stock, only 3 left!

0

23

MTD 790-00416

Plate-Gear Mtg Chut

$5.99

$

Usually ships in 3-6 days

0

24

MTD 790-00471

Bracket-Retain Gea

$21.99

$

Usually ships in 3-6 days

0
