21 XPES (31AS2T5E897) - Columbia 21" Snow Thrower (2015) 270-JU-12 Cylinder Head Parts Diagram

21" Snow Thrower

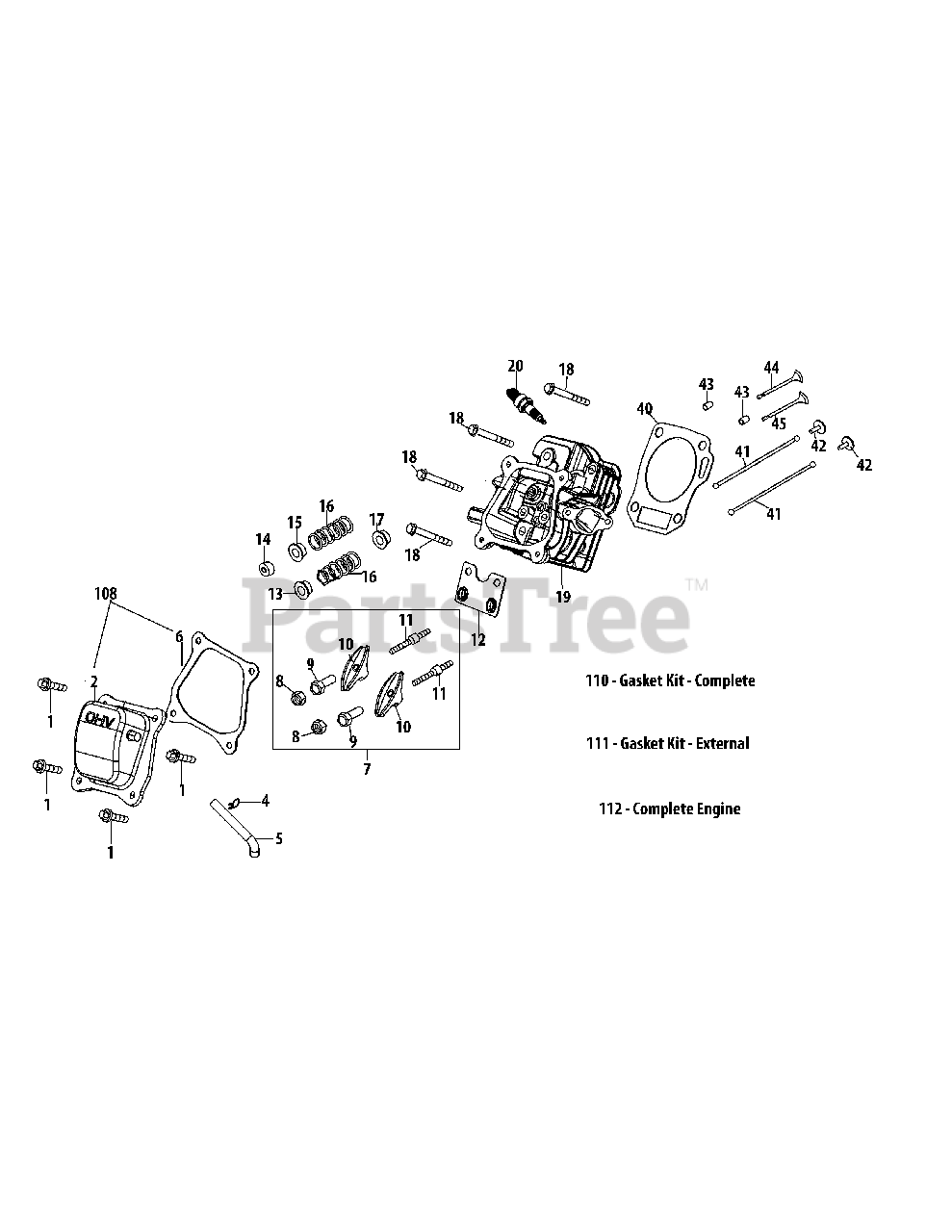

270-JU-12 Cylinder Head Parts Diagram

  • Title
1

MTD 710-04968

Bolt:M,6X16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054A

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

4

MTD 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

5

MTD 731-07059

Breather Hose

$6.49

$

In Stock, only 1 left!

0

6

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 13

0

7

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

8

MTD 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

$10.99

$

In Stock, only 4 left!

0

10

MTD 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

11

MTD 710-04902

Pivot Bolt

$6.99

$

In Stock, only 4 left!

0

12

MTD 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

13

MTD 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

14

MTD 951-12002

Exhaust Valve Adjuster
(Superseded to 751P12002A)

$2.99

$

Usually ships in 3-6 days

0

15

MTD 951-12003

Exhaust Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

16

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

18

MTD 710-04933

Bolt:M8X55 Zinc Coated

$3.99

$

In Stock, Qty 10

0

19

MTD 951-10722B

Cylinder Head Assembly

Note: (Incl.6-17,19,22,27-29,40,44,45)

$170.99

$

In Stock, only 1 left!

0

20

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

40

MTD 951-11572

Cylinder Head Gasket

$11.99

$

In Stock, Qty 19

0

41

MTD 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

42

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

43

MTD 715-04108

Dowel Pin 10X16

$4.49

$

In Stock, only 3 left!

0

44

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

45

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

108

MTD 951-12626

Valve Cover Kit

$28.99

$

Usually ships in 3-6 days

0

110

MTD 951-12121A

Gasket Kit - Complete

Note: (Incl. 6,22,27-29,35,40,54,55,64,70,78)

$58.99

$

Usually ships in 3-6 days

0

111

MTD 951-12026A

Gasket Kit - External

Note: (Incl. 6,22,27,28,29,35)

$31.99

$

Usually ships in 3-6 days

0

112

MTD 952Z270-JU-12

Complete Engine
(Superseded to 952Z270-JUA)

$614.99

$

Usually ships in 3-6 days

0
