21 XP (31A-2M1E897) - Columbia 21" Snow Thrower (2011) Auger & Housing Parts Diagram

21" Snow Thrower

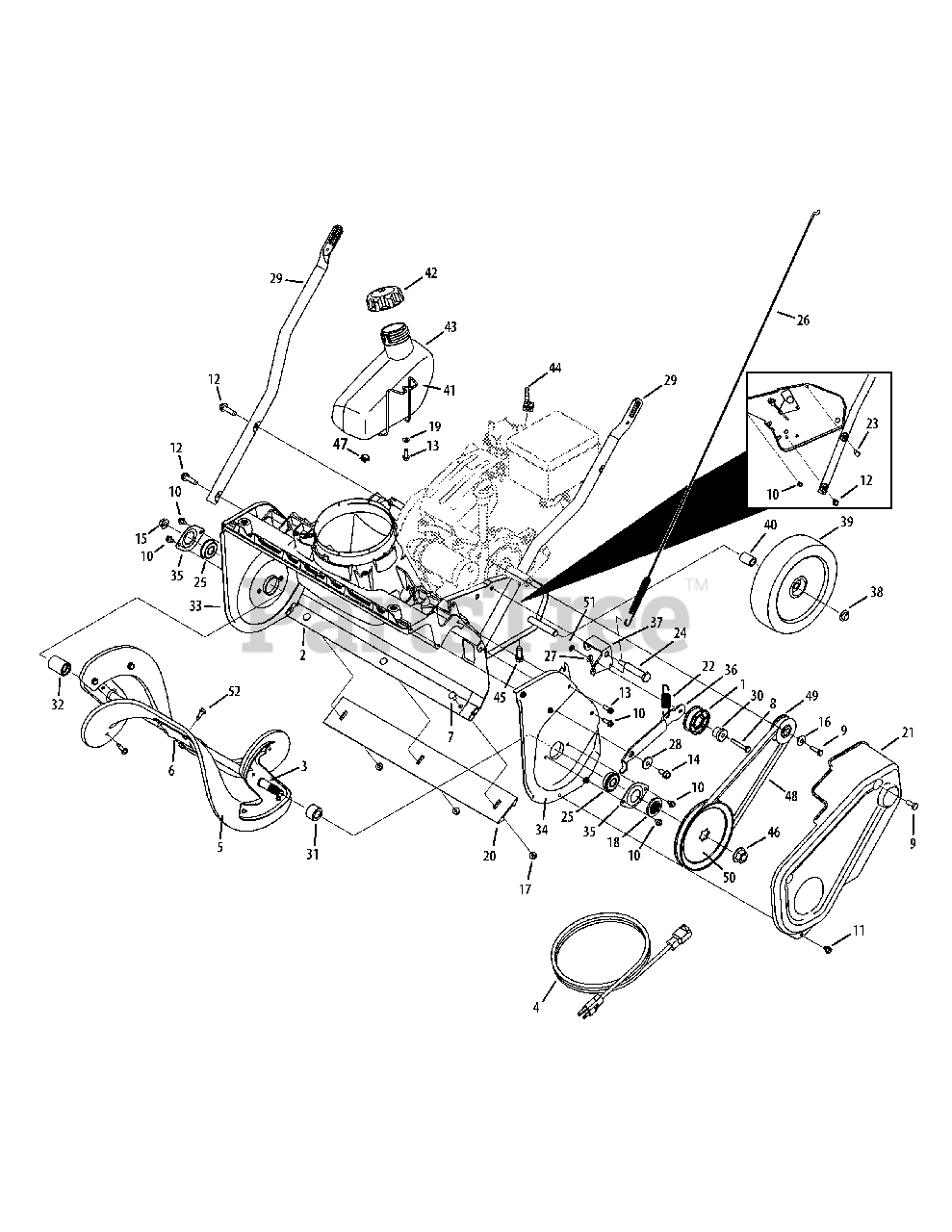

Auger & Housing Parts Diagram

  • Title
1

White Outdoor 684-04168

Idler Pulley Ass’y

$38.99

$

In Stock, only 1 left!

0

2

White Outdoor 684-04398-0606

Frame Assembly - Orange

$143.99

$

Usually ships in 3-6 days

0

3

$230.99

$

In Stock, only 1 left!

0

4

White Outdoor 929-0071A

3-Prong Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

5

White Outdoor 753-06469

Rubber Auger Paddle Kit

Note: (Includes 2 paddles and 12 hex washer screws)

$90.99

$

In Stock, Qty 20+

0

6

White Outdoor 790-00427-0637

Center Auger Bracket

$8.49

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0778

Hex. Washer Screw 1/4-20 x 1.5

$4.49

$

In Stock, only 1 left!

0

9

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1652

Hex. Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0817

Hex. Washer Screw 5/16-18 x 1.25

$6.99

$

In Stock, Qty 15

0

13

White Outdoor 710-0895

Hex. Washer Screw 1/4-15 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

14

White Outdoor 710-04484

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0371

Thrust Washer .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

17

White Outdoor 712-04064

Flange Locknut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

$4.49

$

In Stock, Qty 5

0

19

White Outdoor 736-3092

Washer .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

20

$18.99

$

In Stock, Qty 20+

0

21

$28.99

$

In Stock, only 3 left!

0

22

White Outdoor 732-04748

Extension Spring ..70 x 3.035

$4.49

$

In Stock, only 1 left!

0

23

White Outdoor 710-05183

Hex Screw 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

24

White Outdoor 738-04456

Shoulder Bolt 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

25

White Outdoor 741-04517

Ball Bearing .500 x 1.375 x .4375

$8.99

$

In Stock, only 2 left!

0

26

$13.99

$

Usually ships in 3-6 days

0

27

White Outdoor 747-05360A

Drive Cable Wire Support

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor 748-0234

Shoulder Spacer .25 Thk.

$4.49

$

In Stock, Qty 20+

0

$12.99

$

Usually ships in 3-6 days

0

30

White Outdoor 750-04571

Shoulder Spacer

$6.99

$

In Stock, only 3 left!

0

31

White Outdoor 750-04758

LH Auger Spacer

$6.49

$

In Stock, Qty 9

0

32

White Outdoor 750-05393

RH Auger Spacer

$5.99

$

Usually ships in 3-6 days

0

33

White Outdoor 790-00444-0606

RH Auger Plate - Orange

$46.99

$

Usually ships in 3-6 days

0

34

White Outdoor 790-00445-0606

LH Auger Plate - Orange

$48.99

$

Usually ships in 3-6 days

0

35

White Outdoor 790-00457-0606

Bearing Cup - Orange

$13.99

$

Usually ships in 3-6 days

0

36

$4.49

$

Usually ships in 3-6 days

0

37

White Outdoor 790-00426-0637

Idler Cable Bracket

$8.99

$

Usually ships in 3-6 days

0

38

White Outdoor 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

$20.99

$

In Stock, only 1 left!

0

39

White Outdoor 734-04063A

Wheel, 7"
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

40

White Outdoor 750-04432

Spacer, .525 x .775 x .835

$4.49

$

Usually ships in 3-6 days

0

41

White Outdoor 747-05513

Gas Tank Wire Support

$11.99

$

In Stock, only 1 left!

0

42

White Outdoor 751-10487A

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

43

White Outdoor 751-11648

Fuel Tank
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

44

White Outdoor 731-07664

Choke Extension Lever

Note: Models Heated Grips only

$4.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 4 left!

0

46

White Outdoor 912-0702

Flanged Nut 7/16-20

$18.99

$

In Stock, only 1 left!

0

47

$3.99

$

In Stock, Qty 18

0

48

White Outdoor 954-04050

Belt .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

49

White Outdoor 956-0416B

Pulley Half .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

$23.99

$

In Stock, only 4 left!

0

51

White Outdoor 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-05058

Hex Wash HD Tap Scr 1/4-20 x .75

$3.99

$

In Stock, Qty 8

0
