21 XP (31A-2M1E897) - Columbia 21" Snow Thrower (2011) 161-JWA-11 Crankcase Parts Diagram

21" Snow Thrower

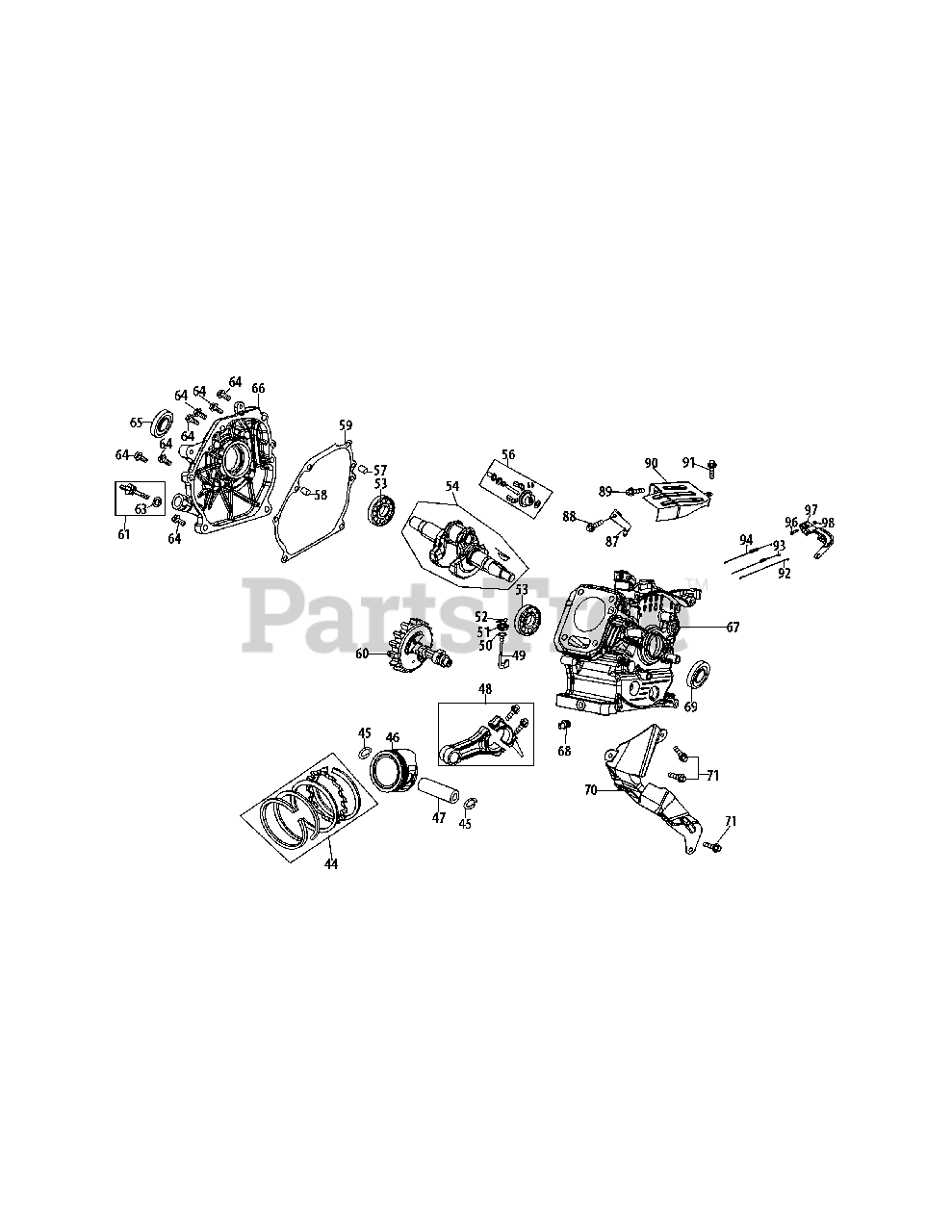

161-JWA-11 Crankcase Parts Diagram

  • Title

44

White Outdoor 951-12615

Piston Ring Set

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 951-11603

Clip, Piston Pin, 18Mm

$4.49

$

Usually ships in 3-6 days

0

46

White Outdoor 951-11828

Piston

$34.99

$

Usually ships in 3-6 days

0

47

White Outdoor 951-11604

Pin, Piston

$7.99

$

Usually ships in 3-6 days

0

48

White Outdoor 951-12616

Connecting Rod Assembly

$77.99

$

Usually ships in 3-6 days

0

49

White Outdoor 951-11356

Goverror Arm
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

50

White Outdoor 736-04461

O-Ring

$3.99

$

Usually ships in 3-6 days

0

51

White Outdoor 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

52

White Outdoor 714-04074

Pin, Lock
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

53

White Outdoor 951-11369

Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

54

White Outdoor 951-11096

Crankshaft Kit

Note: (Incl.53-55)

$115.99

$

Usually ships in 3-6 days

0

55

White Outdoor 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

56

White Outdoor 951-12617

Governor Gear/Shaft Assy

$11.99

$

Usually ships in 3-6 days

0

57

White Outdoor 715-04089

Pin, Dowel, 9×14

$3.99

$

Usually ships in 3-6 days

0

58

White Outdoor 715-04092

Pin, Dowel, 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 951-12618

Gasket, Crankcase Cover

$13.99

$

Usually ships in 3-6 days

0

60

White Outdoor 951-12046

Camshaft Assy

$65.99

$

Usually ships in 3-6 days

0

61

White Outdoor 951-12619

Dipstick Assembly

$11.99

$

Usually ships in 3-6 days

0

63

White Outdoor 951-11577

O-Ring

$4.49

$

Usually ships in 3-6 days

0

64

White Outdoor 710-04920

Bolt, Flange, M6×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

66

White Outdoor 951-12620

Crankcase Cover Kit

Note: (Incl.53,59,61,64-66)

$61.99

$

Usually ships in 3-6 days

0

67

White Outdoor 951-12621

Crankcase Kit

Note: (Incl.53,65,67,68)

$199.99

$

Usually ships in 3-6 days

0

68

White Outdoor 951-12514

1/8 Npt Oil Drain Plug
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

69

White Outdoor 951-12622

Oil Seal

$14.99

$

Usually ships in 3-6 days

0

70

White Outdoor 951-11105

Baffle, Cylinder

$

$

Not available

71

White Outdoor 710-04940

Bolt, Flange, 6×10

$5.49

$

In Stock, only 3 left!

0

87

White Outdoor 951-11104

Covernor Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

88

White Outdoor 710-04916

Boltm6×14

$4.49

$

In Stock, Qty 12

0

89

White Outdoor 710-04921

Bolt, Flange, 8×14

$5.49

$

Usually ships in 3-6 days

0

90

White Outdoor 951-11103

Governor Shield

$4.49

$

Usually ships in 3-6 days

0

91

White Outdoor 710-04920

Bolt, Flange, M6×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

92

White Outdoor 951-11152

Rod, Governor

$6.99

$

In Stock, Qty 5

0

93

White Outdoor 951-10954

Throttle Return Spring

$6.49

$

In Stock, only 2 left!

0

94

White Outdoor 951-10953

Spring, Governor

$5.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-04908

Bolt, Governor Arm

$6.49

$

Usually ships in 3-6 days

0

97

White Outdoor 951-11106

Arm, Governor

$7.99

$

Usually ships in 3-6 days

0

98

White Outdoor 712-04212

Nut, Flange, 6Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

White Outdoor 951-12624

Gasket Kit - Complete
(Superseded to 951-12624A)

Note: (Incl.6,19,22,26,28,34,51,59,63,65,69), not shown

$38.99

$

Usually ships in 3-6 days

0

White Outdoor 951-12625

Gasket Kit - External
(Superseded to 951-12625A)

Note: (Incl.6,22,26,28,34,63), not shown

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 951-12627

Short Block Assembly
(Superseded to 951-12627A)

Note: (Incl.6,19,22,26,27,34,40,44-54,56-61,64-69), not shown

$316.99

$

Usually ships in 3-6 days

0

White Outdoor 952Z161-JWA-11

Complete Engine
(Superseded to 952Z161-JWA-12)

Note: Not shown

$641.99

$

Usually ships in 3-6 days

0
