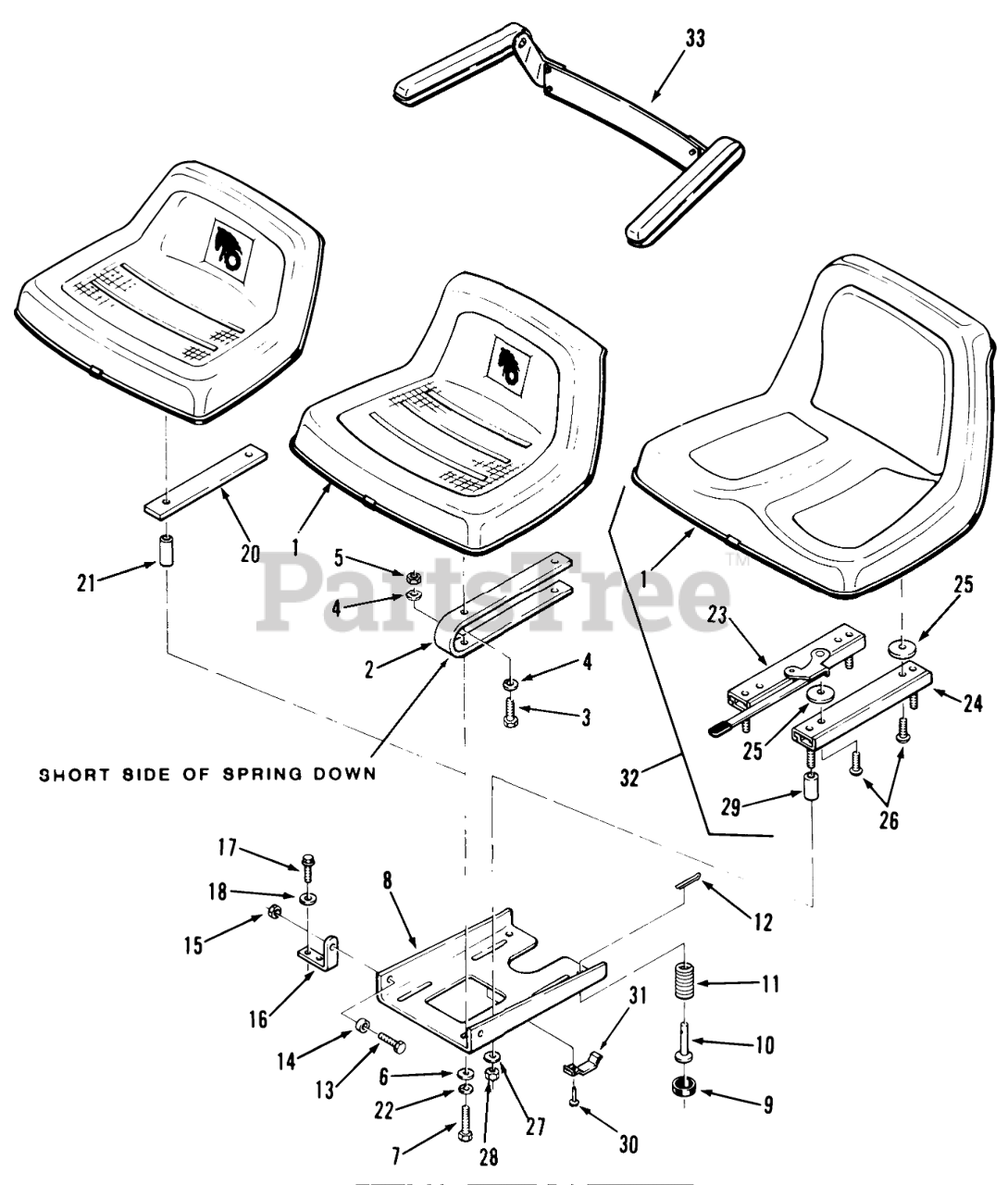

21-12KE03 (312-A) - Toro Garden Tractor (1987) SEAT Parts Diagram

Garden Tractor

SEAT Parts Diagram

  • Title
1

$

$

Not available

2

Toro 110920

Seat Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

4

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

7

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

8

Toro 111714

PLATE SEAT PIVOT B

$

$

Not available

9

$

$

Not available

10

$7.99

$

Usually ships in 3-6 days

0

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

13

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

16

Toro 105524

BRACKET-PIVOT

$

$

Not available

17

Toro 913464

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

23

Toro 109987

ADJUSTER-SEAT RH

$

$

Not available

24

Toro 109988

ADJUSTER-SEAT LH

$

$

Not available

25

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

26

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

27

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

28

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

29

Toro 110932

SPACER

$

$

Not available

30

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

31

Toro 111654

SPRING SWITCH

$3.49

$

Usually ships in 3-6 days

0

32

Toro 110998

Deluxe Seat Assy (includes items 1, 23, 24, 25, 26 & 29)

$

$

Not available

33

Toro 112293

KIT-ARMREST

$

$

Not available

1

Toro 108912

Seat
(Superseded to 78-7600)

$

$

Not available

1

Toro 105259

Seat
(Superseded to 78-7600)

$

$

Not available

1

Toro 109342

Seat 312, 414
(Superseded to 100-6097)

$

$

Not available

7

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, only 2 left!

0

20

Toro 110807

BAR SEAT SUPPORT B

$

$

Not available

21

Toro 110808

SPACER SEAT B

$

$

Not available

22

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0
