21-12KE03 (312-A) - Toro Garden Tractor (1987) ENGINES Parts Diagram

Garden Tractor

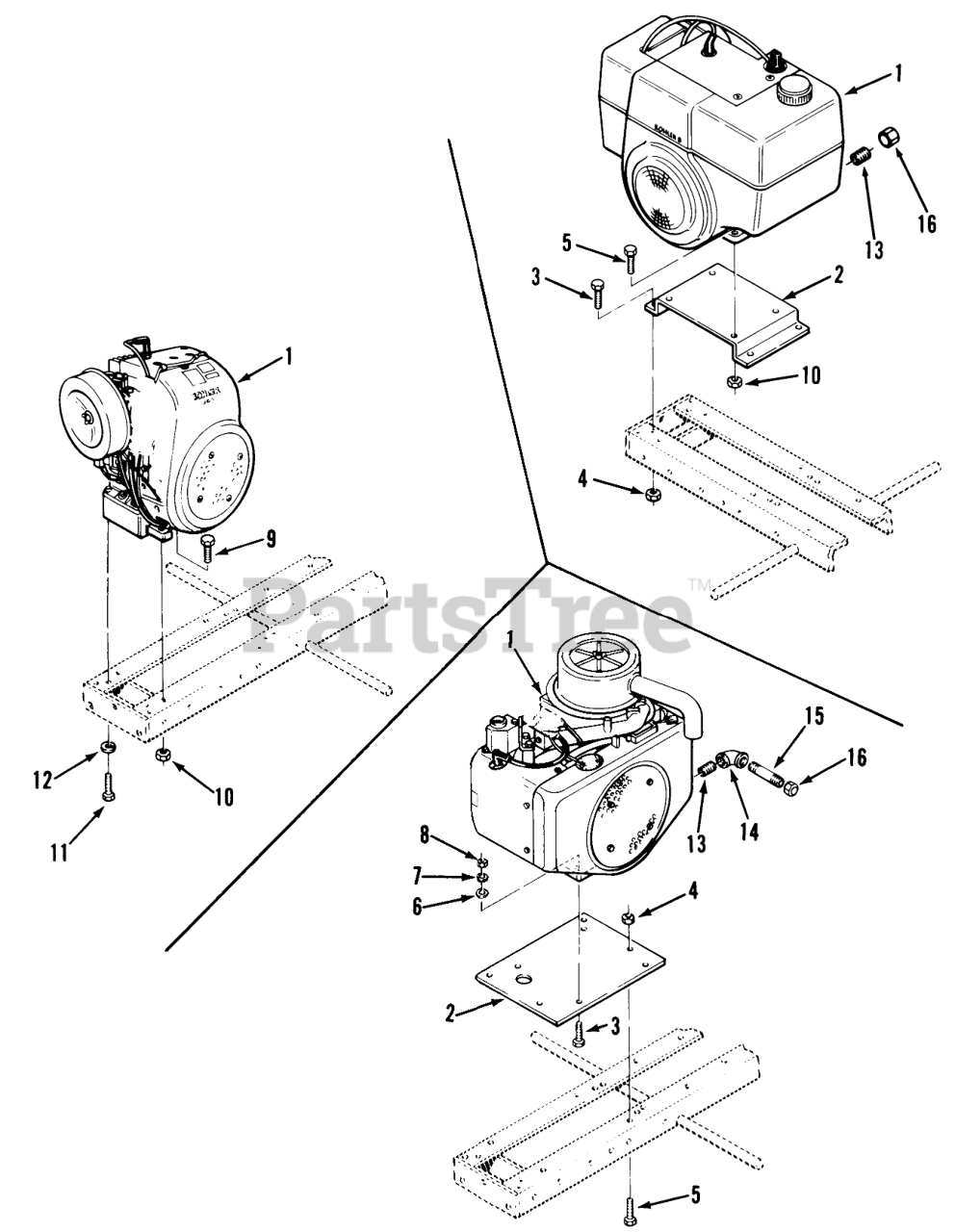

ENGINES Parts Diagram

  • Title

1

Toro 111221

Engine-8HP-Kohler M-8-S Spec PS-301511

$

$

Not available

1

Toro 112207

Engine-1OHP-Kohler M-10-S Spec PS-461521

$

$

Not available

1

Toro 112208

Engine 12HP Kohler M-12-S Spec 471527312

$

$

Currently unavailable

1

Toro 112209

Engine-14HP-Kohler M-14-S Spec PS-601524

$

$

Currently unavailable

1

Toro 112210

Engine-16HP-Kohler M-16-S Spec PS-711523

$

$

Currently unavailable

1

Toro 112211

Engine-18HP-Kohler M-18QS Spec PS-24510 418-8, 418-A

$

$

Currently unavailable

1

Toro 112212

Engine-18HP-Kohler M-18QS Spec PS-12536 418-C

$

$

Currently unavailable

2

Toro 110649

ENGINE PLATE B

$

$

Not available

3

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

3

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

5

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

8

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

9

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 943322

Nipple 3/8

$

$

Not available

14

Toro 943023

Elbow 3/8

$

$

Not available

15

Toro 943334

Nipple 3/8 x 4 1/2

$

$

Not available

16

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

2

Toro 102317

Engine Base

$

$

Not available

13

Toro 943341

Nipple 1/2"

$

$

Not available

16

Toro 106435

CAP-PIPE 1/2 IN

$

$

Not available
