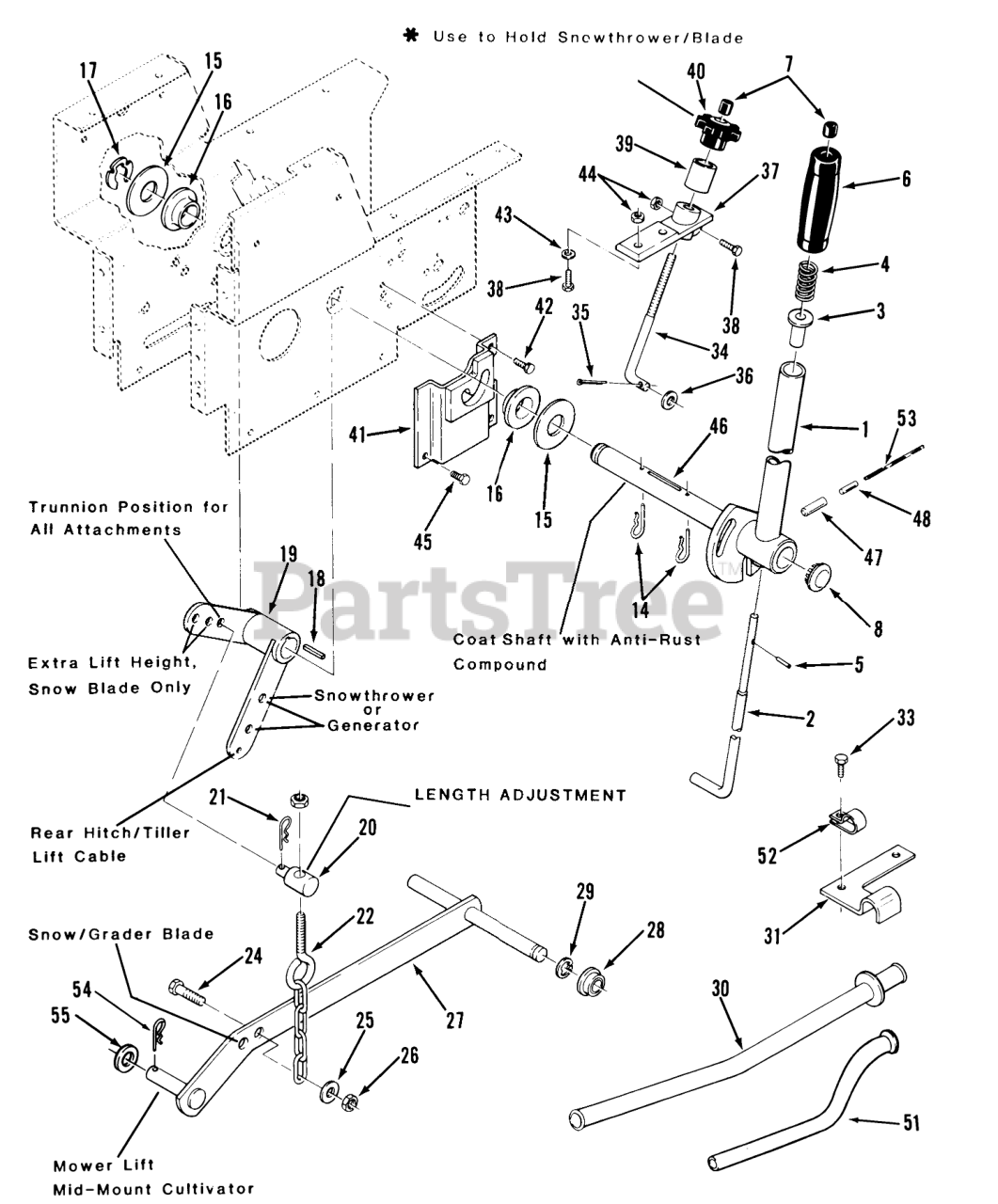

21-12KE02 (312-A) - Toro Garden Tractor (1986) MANUAL LIFT LINKAGE Parts Diagram

Garden Tractor

MANUAL LIFT LINKAGE Parts Diagram

  • Title

1

Toro 108563

Lift Lever
(Superseded to 108563-03)

$

$

Not available

2

Toro 106257

ROD-LATCH LIFT

$112.99

$

Usually ships in 3-6 days

0

3

Toro 8130

RETAINER-SPRING

$23.99

$

Usually ships in 3-6 days

0

4

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

5

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

14

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

15

Toro 920017

WASHER
(Superseded to 3256-62)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

17

Toro 106414

Retainer
(Superseded to 32151-91)

$2.49

$

In Stock, Qty 5

0

18

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

19

Toro 106218

Bellcrank
(Superseded to 78-1550)

$112.99

$

In Stock, only 1 left!

0

20

Toro 104627

TRUNNION

$

$

Not available

21

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

22

Toro 106522

CHAIN-LIFT

$36.99

$

In Stock, only 1 left!

0

24

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

25

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 102373

ASSY LIFT BAR R
(Superseded to 102373-01)

$191.99

$

Usually ships in 3-6 days

0

28

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

29

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

31

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

33

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

41

Toro 106411

Latch Bracket
(Superseded to 106411-03)

$

$

Not available

42

Toro 926694

SCREW

$

$

Not available

46

Toro 108565

SHAFT-LIFT LEVER

$

$

Not available

47

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

48

Toro 933230

Roll Pin
(Superseded to 32121-25)

$4.49

$

Usually ships in 3-6 days

0

51

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$59.99

$

Usually ships in 3-6 days

0

52

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

53

Toro 111154

Lock Wire

$

$

Not available

54

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

55

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

7

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

8

Toro 4944

PLUG

$8.99

$

Usually ships in 3-6 days

0

30

Toro 105845

TUBE ASSY COMPLET R
(Superseded to 105845-01)

$

$

Not available

34

Toro 110653

ROD-HEIGHT CONTROL

$54.99

$

Usually ships in 3-6 days

0

35

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

36

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

37

Toro 106345

Casting
(Superseded to 106345-03)

$

$

Not available

38

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

39

Toro 106258

Sleeve
(Superseded to 106258-03)

$20.99

$

Usually ships in 3-6 days

0

40

Toro 5280

KNOB-LIFT CONTROL

$31.99

$

Usually ships in 3-6 days

0

43

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

44

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

45

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0
