21-12K806 (312-8) - Toro Garden Tractor (1989) SEAT Parts Diagram

Garden Tractor

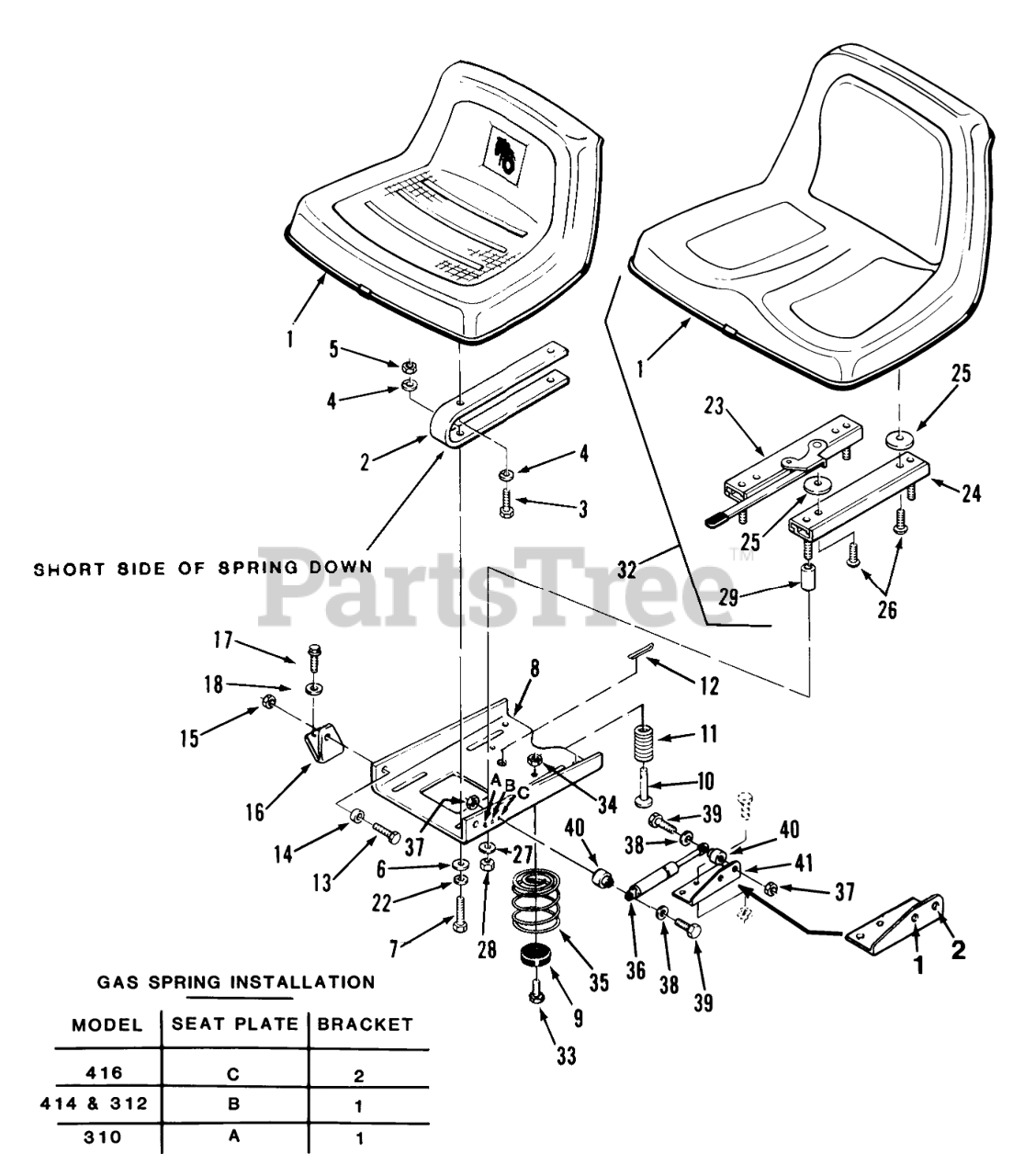

SEAT Parts Diagram

  • Title
1

Toro 113985

Seat
(Superseded to 112292)

$

$

Not available

1

Toro 105259

Seat
(Superseded to 78-7600)

$

$

Not available

2

Toro 110920

Seat Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

4

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

7

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

8

Toro 112478

PLATE-SEAT PIVOT B

$

$

Not available

9

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

10

$7.99

$

Usually ships in 3-6 days

0

11

Toro 114267

SPRING-SEAT SWITCH

$

$

Not available

12

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

13

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

16

Toro 112744

Bracket-Pivot RH

$

$

Not available

16

Toro 112745

BRACKET-PIVOT L.H B

$

$

Not available

17

Toro 913464

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

22

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

23

Toro 114264

Adjuster-Seat
(Superseded to 93-0319)

$

$

Not available

24

Toro 114265

ADJUSTER-R.H. SEAT

$

$

Not available

25

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

26

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

27

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

28

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

29

Toro 110932

SPACER

$

$

Not available

32

Toro 113981

Deluxe Seat Assy (Includes Items 1, 23, 24, 25, 26 & 29)
(Superseded to 88-3210)

$933.99

$

Usually ships in 3-6 days

0

33

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

34

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

35

Toro 114497

SPRING-SEAT NYLON

$62.99

$

Usually ships in 3-6 days

0

35

Toro 114496

SPRING

$

$

Not available

35

Toro 114263

Seat Spring
(Superseded to 114263-03)

$195.99

$

In Stock, only 1 left!

0

36

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

37

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

38

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

39

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

40

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

41

Toro 114345

BRACKET-CYLINDER R

$

$

Not available
