21-12K806 (312-8) - Toro Garden Tractor (1989) ONAN BLOWER HOUSING AND GOVERNOR Parts Diagram

Garden Tractor

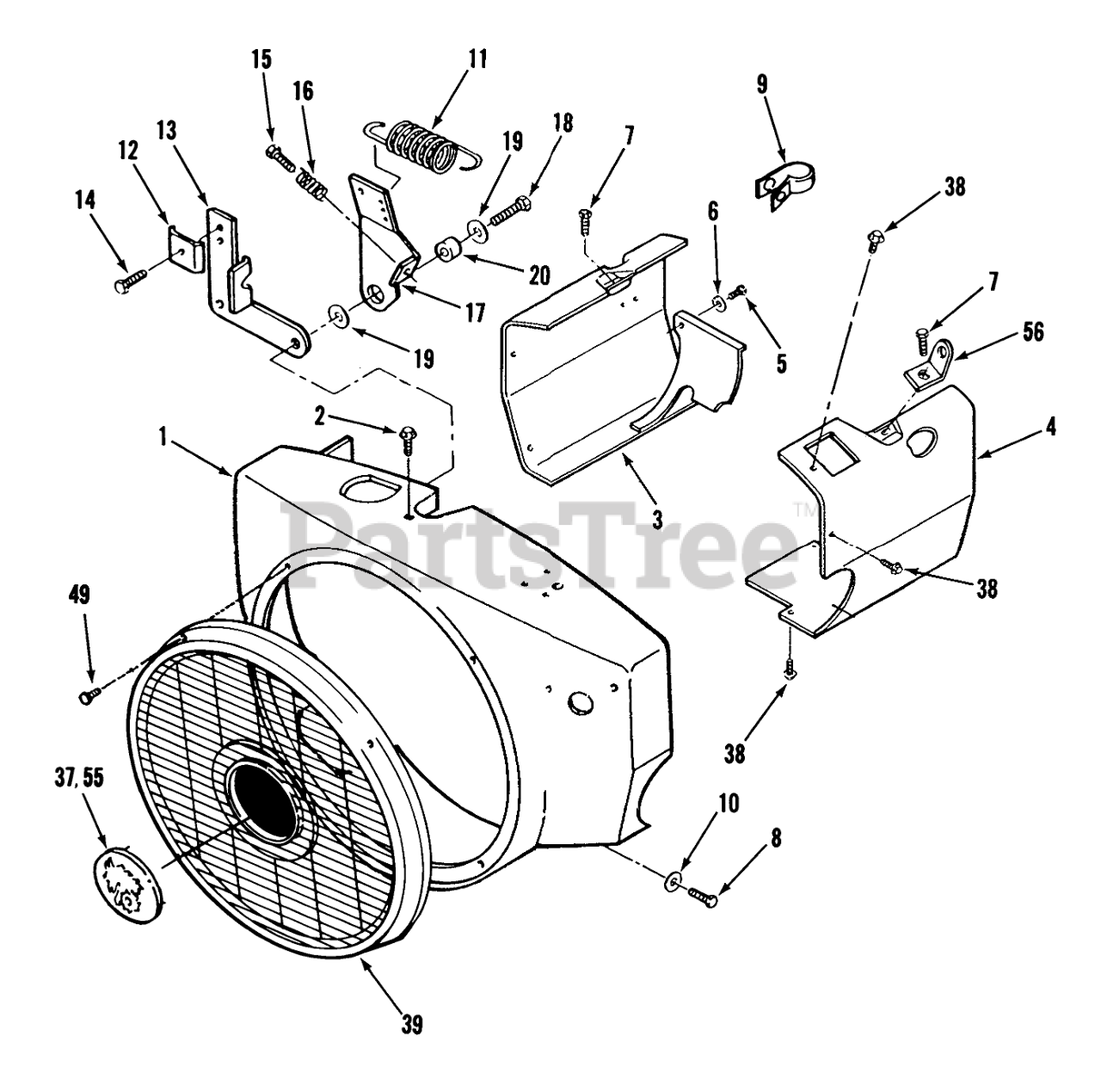

ONAN BLOWER HOUSING AND GOVERNOR Parts Diagram

  • Title
1

Toro NN10173

Blower Housing
(Superseded to NN10769)

$

$

Not available

2

Toro NN10392

Bolt
(Superseded to 59-0970)

$

$

Not available

3

Toro NN10170

CYLINDER AIR HSG L H

$

$

Not available

4

Toro NN10169

Cylinder Air Housing
(Superseded to 92-0921)

$

$

Not available

5

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

6

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

7

Toro NN10417

Bolt
(Superseded to 82-1600)

$

$

Not available

8

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

9

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

10

Toro NN10356

Washer
(Superseded to 59-0820)

$

$

Not available

11

Toro NN10217

Spring
(Superseded to 57-9100)

$

$

Not available

12

Toro NN10440

Clip
(Superseded to 57-9190)

$

$

Not available

13

Toro NN10225

Bracket
(Superseded to 57-9150)

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

15

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro NN10223

Governor Control Arm w/o Swivel
(Superseded to 57-9140)

$

$

Not available

18

Toro NN10397

Bolt
(Superseded to 59-1010)

$

$

Not available

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$

$

Not available

37

Toro NN10340

Plug
(Superseded to 82-1190)

$

$

Not available

38

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

39

Toro NN10551

Guard
(Superseded to 82-0620)

$

$

Not available

49

Toro NN10406

Screw 1/4-20 x 3/8
(Superseded to 82-1550)

$

$

Not available

55

Toro NN10435

NAME PLATE LOGO

$

$

Not available

56

Toro NN10296

Bracket-Lifting
(Superseded to 71-6080)

$

$

Not available
