21-12K805 (312-8) - Toro Garden Tractor (1988) CARBURETORS Parts Diagram

Garden Tractor

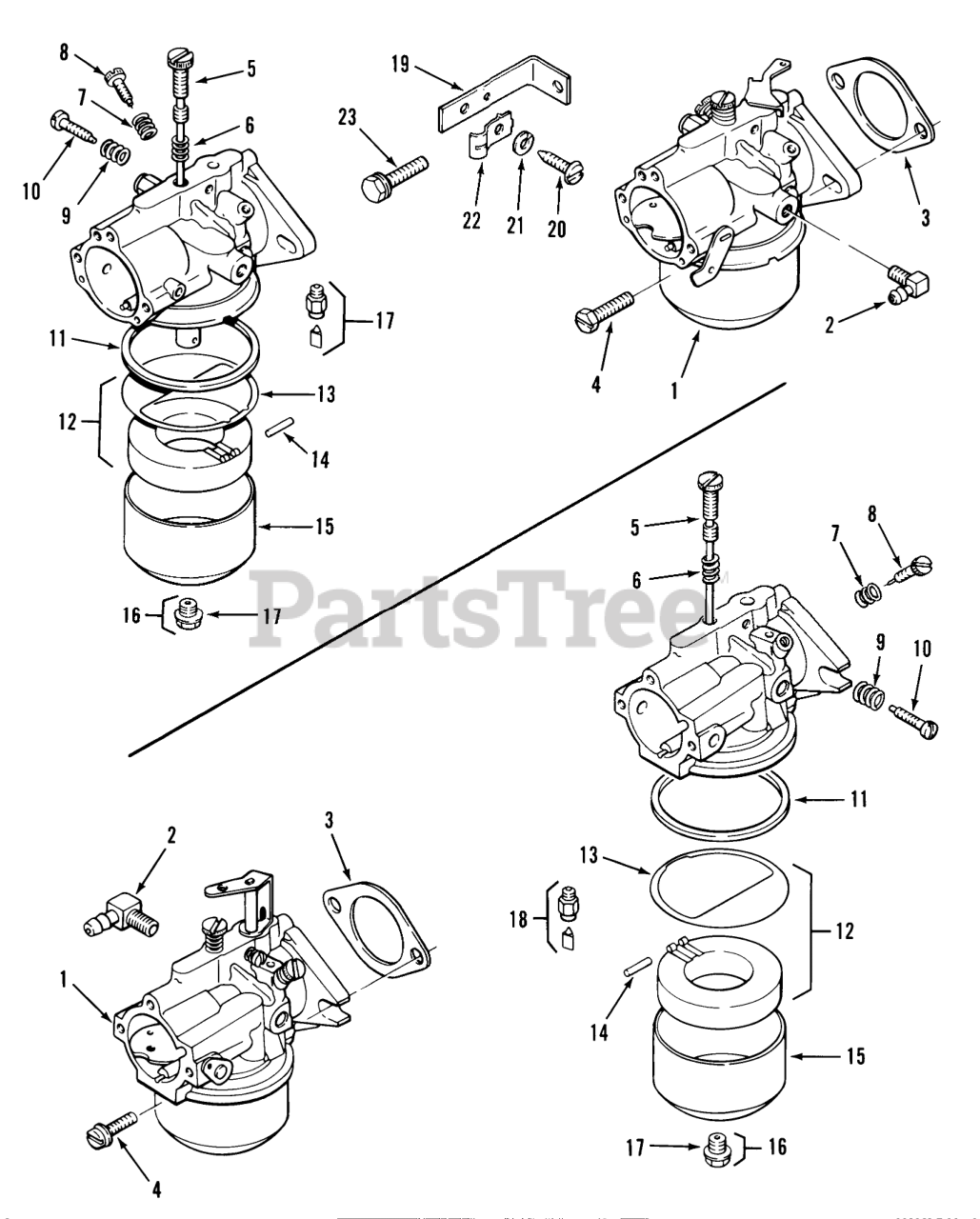

CARBURETORS Parts Diagram

  • Title

1

Toro KH10170

Carb. Assy (includes 5 thru 8) 308 Only

$

$

Not available

Toro KH10276

Carb. Assy (includes 5 thru 8) 310, 312 Only

$

$

Not available

Toro KH10277

Carb. Assy (includes 5 thru 8) 414 Only

$

$

Not available

Toro KH10229

Carb. Assy (includes 5 thru 8) 416 Only

$

$

Not available

2

Toro KH10123

Connector 90

$

$

Not available

3

Toro KH10009

Gasket-Flange

$

$

Not available

Toro KH10274

Gasket

$

$

Not available

4

Toro KH10546

Sltd. Hex Hd. Screw 1/4-20 x 1/4 308 Only

$

$

Not available

Toro KH10625

Screw

$

$

Not available

5

Toro KH10044

Main Fuel Adj. Needle 308 Only

$

$

Not available

Toro KH10068

Main Fuel Adj. Needle 310, 312

$

$

Not available

Toro KH10301

Main Fuel Sdj. Needle 414

$

$

Not available

6

Toro KH10005

Main Fuel Spring

$

$

Not available

7

Toro KH10004

Idle Fuel Spring

$

$

Not available

8

Toro KH10007

Idle Fuel Adj. Needle 308 Only

$

$

Not available

Toro KH10050

Idle Fuel Adj. Needle 310, 312

$

$

Not available

Toro KH10151

Idle Fuel Adj. Needle 414

$

$

Not available

9

Toro KH10039

Idle Speed Spring

$

$

Not available

10

Toro KH10040

Screw

$

$

Not available

11

Toro KH10002

Bowl Gasket

Note: Included in Carburetor Repair Kit

$

$

Not available

12

Toro KH10141

Float Kit (includes item 13)

$

$

Not available

13

Toro KH10092

Bowl Baffle Gasket

Note: Included in Carburetor Repair Kit

$

$

Not available

14

Toro KH10003

Float Hinge Pin

Note: Included in Carburetor Repair Kit

$

$

Not available

15

Toro KH10006

Fuel Bowl 308 Only

$

$

Not available

Toro KH10069

Fuel Bowl

$

$

Not available

16

Toro KH10188

Fuel Bowl Retainer Screw (includes item 17) 308 Only

$

$

Not available

Toro KH10300

Fuel Bowl Retainer Screw (includes item 17) 310, 312, 414, 416

$

$

Not available

17

Toro KH10001

Bowl Retainer Screw Gasket

Note: Included in Carburetor Repair Kit

$

$

Not available

18

Needle and Seat-Available only in carb. repair kit 25 757 01 or 02

Note: Included in Carburetor Repair Kit

$

$

Not available

19

Toro KH10198

Choke Bracket 308 Only

$

$

Not available

20

Toro KH10591

Sltd. Pan Hd. Screw 10-24 x 3/8 308

$

$

Not available

21

Toro KH10555

Lockwasher #10

$

$

Not available

22

Toro KH10073

Cable Clip

$

$

Not available

23

Toro KH10544

H.C. Sems Screw 1/4-20 x 3/4

$

$

Not available

Toro KH10139

Carburetor Repair Kit

Note: Not illustrated

$

$

Not available

Toro KH10140

Carburetor Repair Kit 416

Note: Not illustrated

$

$

Not available

Toro KH10142

Choke & Throttle Repair Kit 308

Note: Not illustrated

$

$

Not available

Toro KH10358

Choke & Throttle Repair Kit

Note: Not illustrated

$

$

Not available
