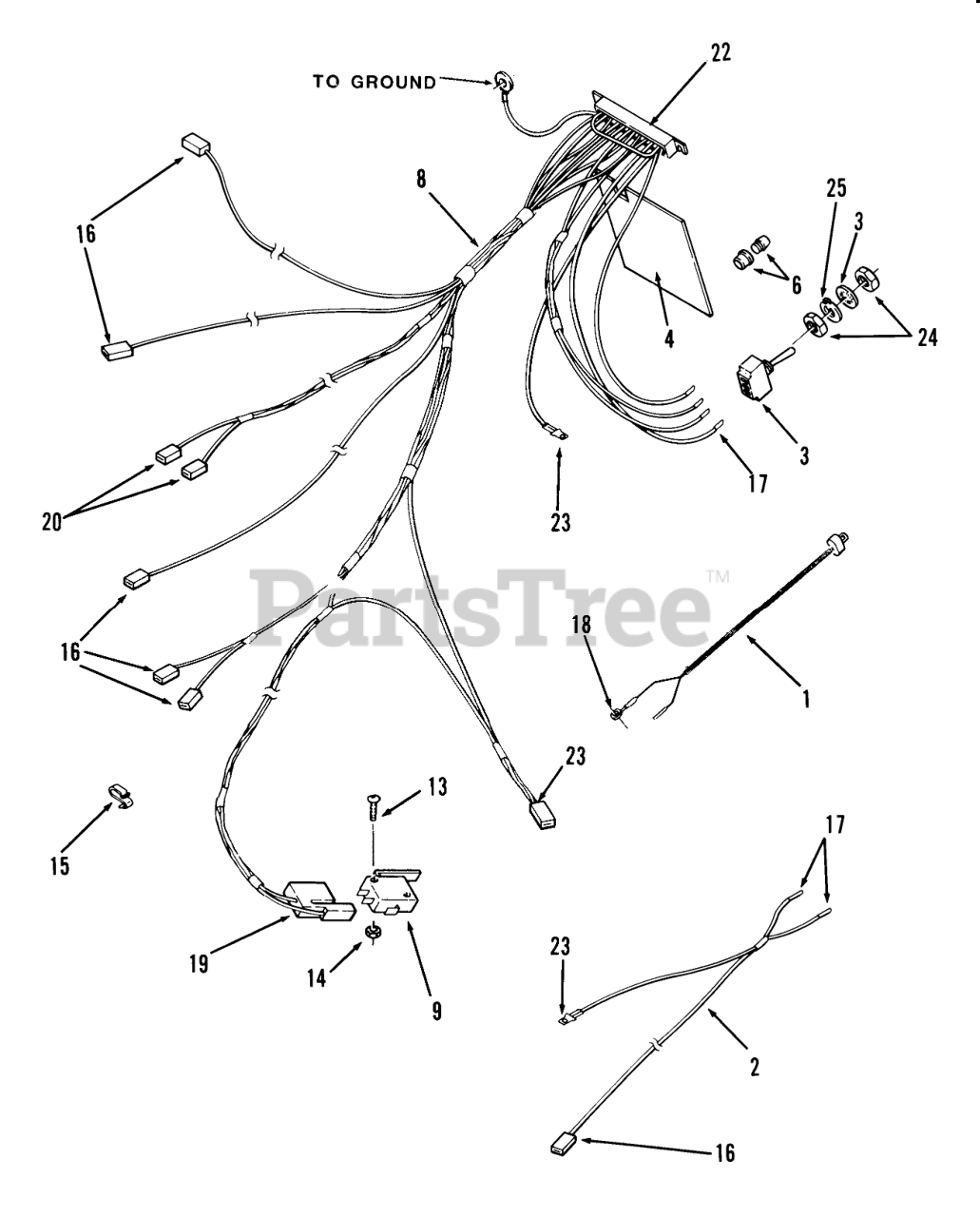

21-10K806 (310-8) - Toro Garden Tractor (1989) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111345

LIGHT INDICATOR

$

$

Not available

2

Toro 111351

ASSY WIRE INDICATOR

$

$

Not available

3

Toro 111346

SWITCH TOGGLE

$

$

Not available

3

Toro 111353

SWITCH TOGGLE

$

$

Not available

4

Toro 115207

P.C. BRD & SCHEMATIC

$

$

Not available

6

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

8

Toro 112216

WIRING HARNESS

$

$

Not available

8

Toro 113139

P.C. BOARD HARNESS

$275.99

$

Usually ships in 3-6 days

0

9

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

13

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

14

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

15

Toro 519337

CLIP-CABLE

$

$

Not available

16

Toro 520198

Piggy-Back Connector (Part of 6)

$

$

Currently unavailable

17

Toro 111485

062 X 031 TAB RECEPT

$

$

Not available

18

Toro 518021

Ring Terminal (Part of 1)

$

$

Not available

19

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

20

Toro 520197

Piggy-Back Connector(Part of 6)

$

$

Not available

22

Toro 111374

Molex Connector (Part of 6)

$

$

Not available

23

Toro 113131

TERMINAL-LONG MALE

$

$

Not available

24

Toro 111359

NUT F/W 116796

$4.49

$

Usually ships in 3-6 days

0

25

Toro 111360

RING LOCKING

$

$

Not available
