21-10K805 (310-8) - Toro Garden Tractor (1988) IGNITION SYSTEM Parts Diagram

Garden Tractor

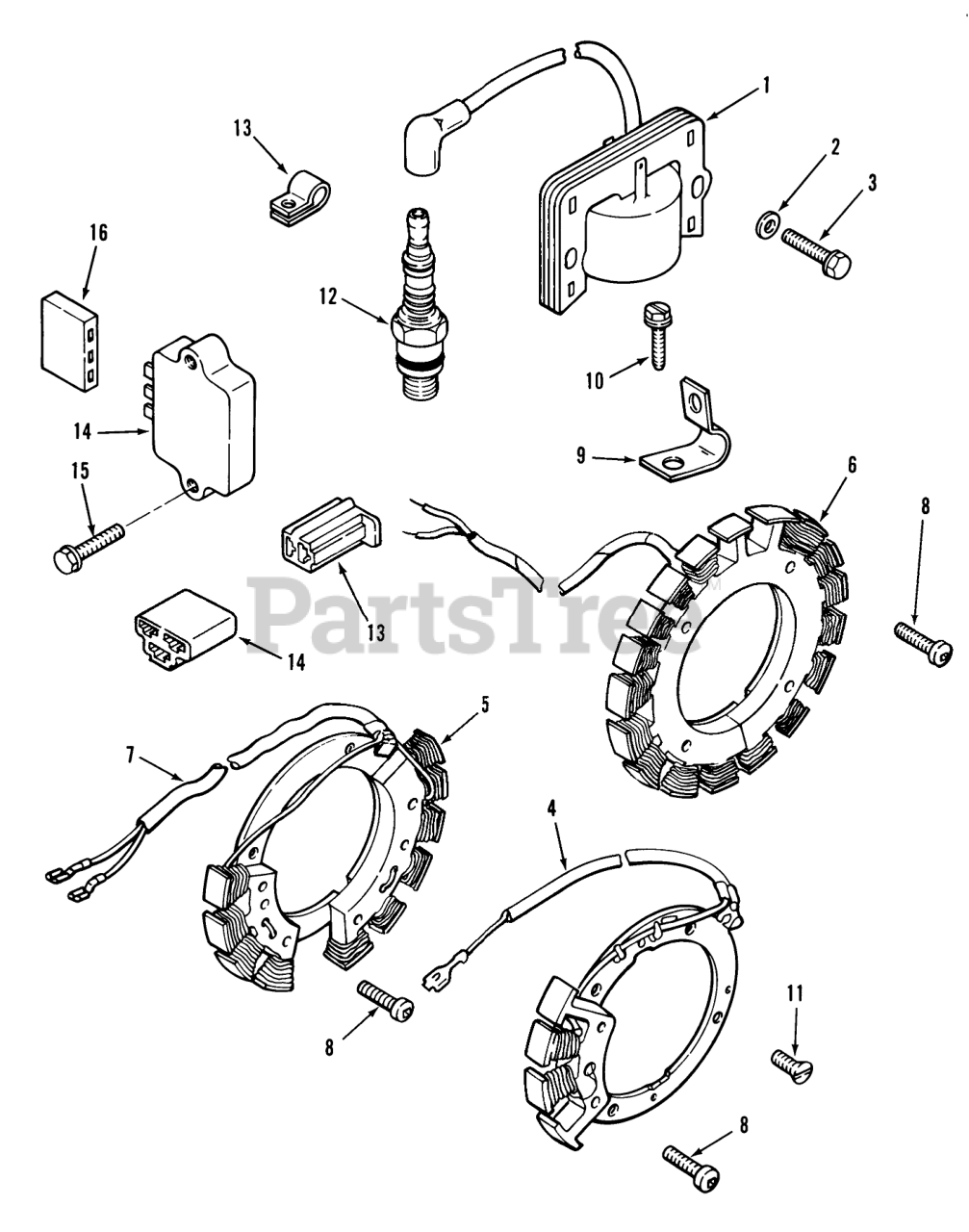

IGNITION SYSTEM Parts Diagram

  • Title

1

Toro KH10220

Ignition Module 308 Only

$

$

Not available

Toro KH10320

Ignition Module (Before Serial #1715900013)

$

$

Not available

Toro KH10321

Module-Ignition

$

$

Not available

2

Toro KH10572

Washer

$

$

Not available

3

Toro KH10548

Screw

$

$

Not available

4

Toro KH10096

Stator 1.5 amp w/70W light coil 308 Only

$

$

Not available

5

Toro KH10237

Stator Assy 3 amp (includes 7) 310 Only

$

$

Not available

6

Toro KH10091

Stator Kit 15 amp (includes 8) 312, 414, 416 Only

$

$

Not available

7

Toro KH10351

Diode Kit 310 Only

$

$

Not available

8

Toro KH10627

Pozidriv. Pan Hd. Screw #10-24 x 3/4

$

$

Not available

9

Toro KH10010

Clip-Hi-Tension

$

$

Not available

Toro KH10618

Clip

$

$

Not available

10

Toro KH1060

Hex. Wash. Hd. Screw 8-32 x 3/8

$

$

Currently unavailable

11

Toro KH10540

Sltd F.H. Screw 10-24 x 3/8 308

$

$

Not available

12

Toro KH10200

Spark Plug 308 Only

$

$

Not available

Toro KH10056

Plug-Spark

$

$

Not available

13

Toro KH10010

Clip-Hi-Tension

$

$

Not available

14

Toro KH10215

Regulator-Rectifier

$

$

Not available

15

Toro KH10543

Screw

$

$

Not available

16

Toro KH10082

Connector

$

$

Not available

Toro KH10218

Lead-white w/ diode, grd to kill (23.5") 308 Only

Note: Not illustrated

$

$

Not available

Toro KH10351

Diode Kit 310 Only

Note: Not illustrated

$

$

Not available

Toro KH10315

Lead-Wire, Module to Connector

Note: Not illustrated

$

$

Not available

Toro KH10314

Lead-White, Module to Connector (15") After Serial #1715900003

Note: Not illustrated

$

$

Not available

Toro KH10313

Lead-Violet, Regulator Rectifier to Connector

Note: Not illustrated

$

$

Not available
