21-10K805 (310-8) - Toro Garden Tractor (1988) CAMSHAFT, CRANKSHAFT & VALVES Parts Diagram

Garden Tractor

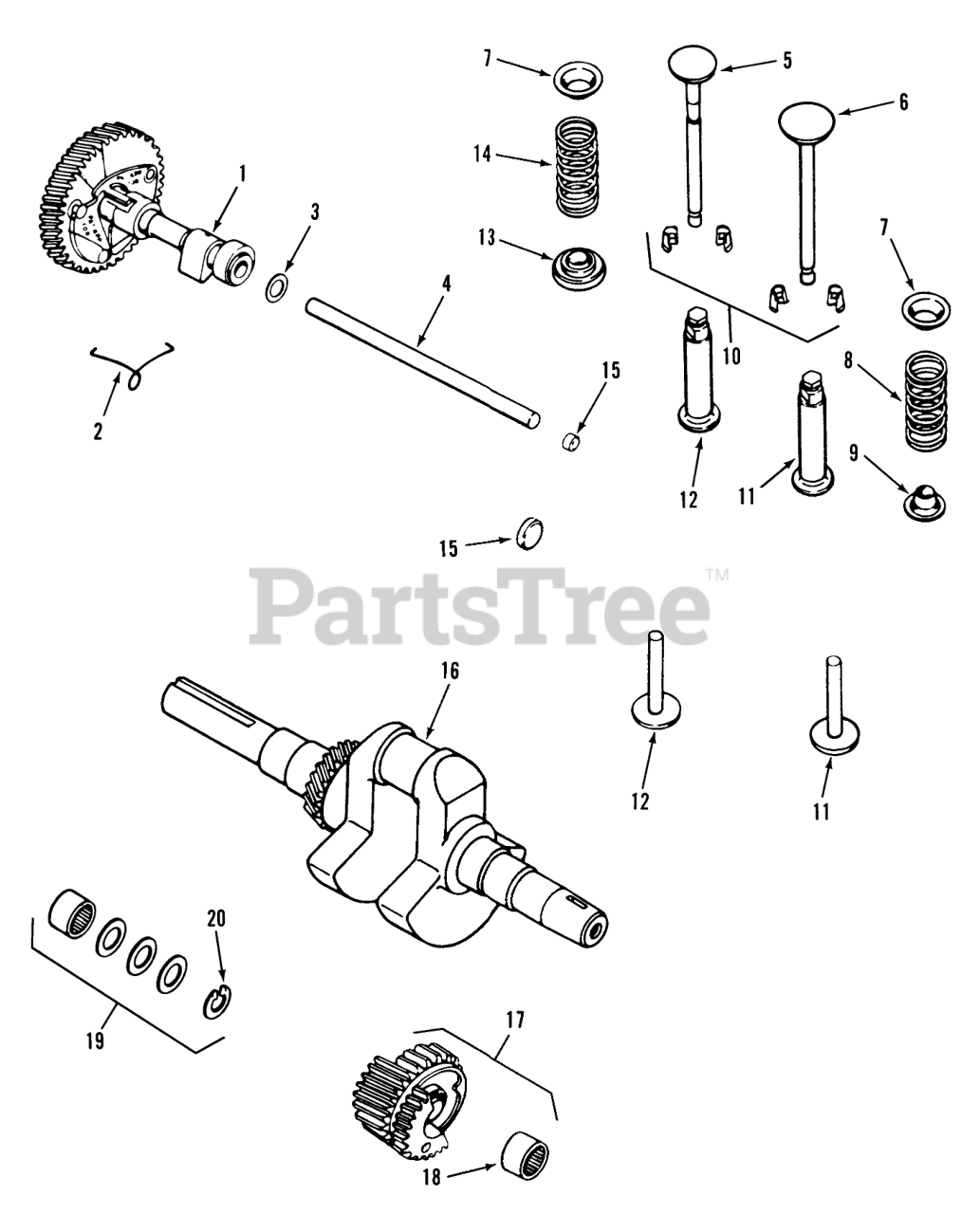

CAMSHAFT, CRANKSHAFT & VALVES Parts Diagram

  • Title
1

Toro KH10158

Camshaft Assy (includes item 2) 308 Only

$

$

Not available

Toro KH10259

Camshaft Assy (includes item 2) 310, 312, 414, 416

$

$

Not available

2

Toro KH10292

Spring

$

$

Not available

3

Toro KH10030

Camshaft Spacer .005 308 Only

$

$

Not available

Toro KH10147

Spacer .005

$

$

Not available

Toro KH10031

Camshaft Spacer .010 308 Only

$

$

Not available

Toro KH10148

Spacer .010

$

$

Not available

4

Toro KH10214

Camshaft Pin 308 Only

$

$

Not available

Toro KH10310

Camshaft Pin

$

$

Not available

5

Toro KH10021

Exhaust Valve 308 Only

$

$

Not available

Toro KH10074

Valve-Exhaust

$

$

Not available

Toro KH10090

Valve-Exhaust

$

$

Not available

6

Toro KH10016

Intake Valve 308 Only

$

$

Not available

Toro KH10052

Valve-Intake

$

$

Not available

Toro KH10071

Valve-Intake

$

$

Not available

7

Toro KH10054

UpperSpring Retainer

$

$

Not available

8

Toro KH10017

Intake Valve Spring 308

$

$

Not available

Toro KH10053

Spring

$

$

Not available

Toro KH10062

Spring

$

$

Not available

9

Toro KH10018

Retainer-Spring

$

$

Not available

10

Toro KH10221

Kit-Retainer

$

$

Not available

11

Toro KH10019

Intake Valve Tappet 308 Only

$

$

Not available

Toro KH10539

Tappet

$

$

Not available

12

Toro KH10045

Exhaust Valve Tappet 308 Only

$

$

Not available

13

Toro KH10020

Exhaust Valve Rotator 308 Only

$

$

Not available

Toro KH10496

Rotator-Valve

$

$

Not available

14

Toro KH10027

Exhaust Valve Spring 308 Only

$

$

Not available

15

Toro KH10451

Cup Plug 7/16 308 Only

$

$

Not available

$

$

Not available

16

Toro KH10038

Crankshaft 3-3/4 x 1 tapped PTO 308 Only

$

$

Not available

Toro KH10305

Crankshaft Kit 3-25/32 x 1-1/8 (includes flywheel hdwr) 310 Only

$

$

Not available

Toro KH10655

Crankshaft Kit 3-25/32 x 1-1/8 (includes flywheel hdwr) 312 Only

$

$

Not available

Toro KH10245

Crankshaft Kit 3-25/32 x 1-1/8 (includes flywheel hdwr) 414,416

$

$

Not available

17

Toro KH10228

Gear Assy (includes item 18) 312, 414, 416

$

$

Not available

18

Toro KH10267

Bearing-Needle

$

$

Not available

19

Toro KH10322

Spacer Kit (includes item 20) 312, 414, 416

$

$

Not available

20

Toro KH10574

Retainer

$

$

Not available
