21-08K804 (308-8) - Toro Lawn Tractor (1988) STARTER Parts Diagram

Lawn Tractor

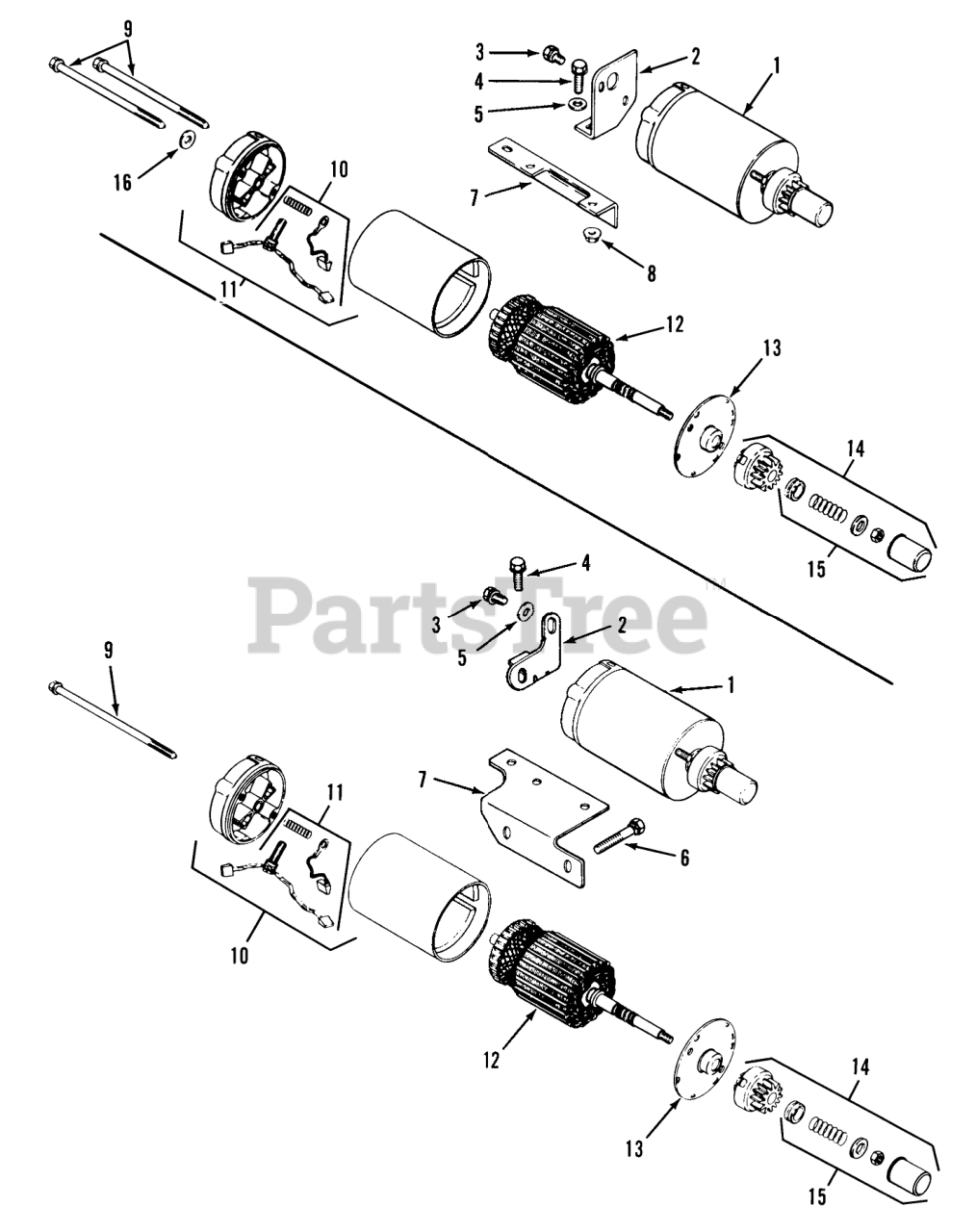

STARTER Parts Diagram

  • Title
1

Toro KH10187

Starter Assy (includes items 9 thru 15)

$

$

Not available

2

Toro KH10192

Starter Tail Brace 308 Only

$

$

Not available

Toro KH10244

Brace-Starter Tail

$

$

Not available

3

Toro KH10607

Screw-Hex. Hd.

$

$

Not available

4

Toro KH10599

Washer-Lock

$

$

Not available

Toro KH10610

Screw

$

$

Not available

5

Toro KH10567

Washer

$

$

Not available

6

Toro KH10549

Screw

$

$

Not available

7

Toro KH10194

Starter Bracket 308 Only

$

$

Not available

Toro KH10304

Bracket-Starter

$

$

Not available

8

Toro KH10629

Palnut

$

$

Not available

9

$

$

Not available

10

Toro KH10210

Commutator End Cap Assembly (includes item 11)

$

$

Not available

11

Toro KH10515

Brush Kit

$

$

Not available

12

Toro KH10247

Armature

$

$

Not available

13

Toro KH10209

Cap-Drive End

$

$

Not available

14

Toro KH10323

Drive Kit (includes item 15)

$

$

Not available

15

Toro KH10324

Drive Parts Kit

$

$

Not available

16

Toro KH10567

Washer

$

$

Not available

Toro KH10135

Caution Tag

Note: Not illustrated

$

$

Not available
