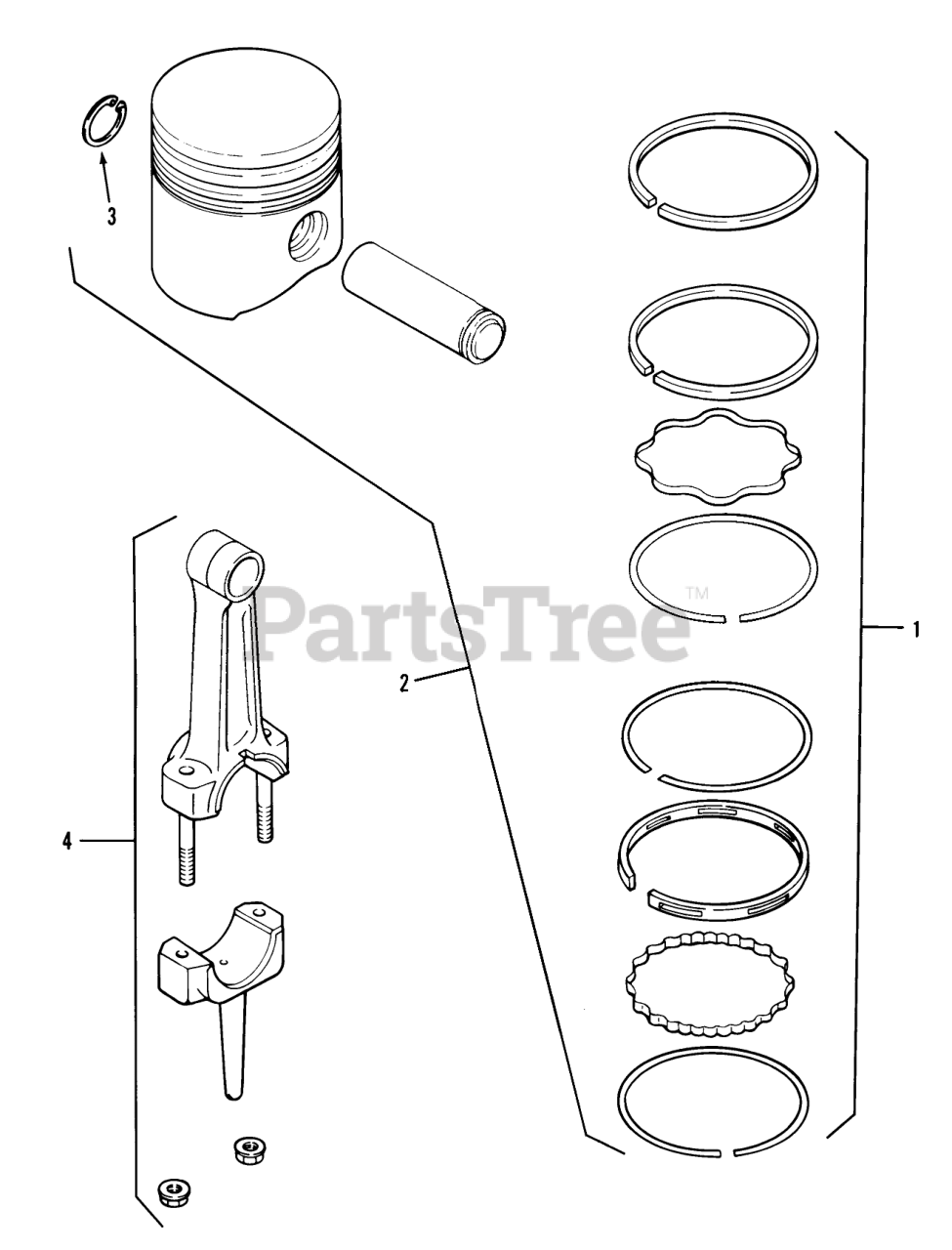

21-08K804 (308-8) - Toro Lawn Tractor (1988) PISTON & RINGS Parts Diagram

Lawn Tractor

PISTON & RINGS Parts Diagram

  • Title

1

Toro KH10041

Ring Set Std. 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10190

Ring Set Std. 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10638

Ring Set .010 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10635

Ring Set .010 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10639

Ring Set .020 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10636

Ring Set .020 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10640

Ring Set .030 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10637

Ring Set .030 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10063

Set-Ring, Std. & .003

$

$

Not available

Toro KH10064

Set-Ring .010

$

$

Not available

Toro KH10065

Set-Ring .020

$

$

Not available

Toro KH10066

Set-Ring .030

$

$

Not available

Toro KH10075

Ring Set Std. & .003 312

$

$

Not available

Toro KH10076

Ring Set .010 312

$

$

Not available

Toro KH10077

Ring Set .020 312

$

$

Not available

Toro KH10078

Ring Set .030 312

$

$

Not available

Toro KH10083

Ring Set Std. & .003 414

$

$

Not available

Toro KH10084

Ring Set .010 414

$

$

Not available

Toro KH10085

Ring Set .020 414

$

$

Not available

Toro KH10086

Ring Set .1030 414

$

$

Not available

Toro KH10240

Ring Set Std & .003 416 Only

$

$

Not available

Toro KH10241

Ring Set .010 416 Only

$

$

Not available

Toro KH10242

Ring Set .020 416 Only

$

$

Not available

Toro KH10243

Ring Set .030 416 Only

$

$

Not available

2

Toro KH10223

Piston w/ Ring Set Std. & .003 308 (before serial #1601300012)

$

$

Not available

Toro KH10224

Piston w/ Ring Set Std. & .003 308 (after serial #1601300002)

$

$

Not available

Toro KH10641

Piston w/ Ring Set .003 308 (before serial #1601300012)

$

$

Not available

Toro KH10645

Piston w/ Ring Set .003 308 (after serial #1601300002)

$

$

Not available

Toro KH10642

Piston w/ Ring Set .010308 (before serial #1601300012)

$

$

Not available

Toro KH10646

Piston w/ Ring Set .010 308 (after serial #1601300002)

$

$

Not available

Toro KH10643

Piston w/ Ring Set .020 308 (before serial #1601300012)

$

$

Not available

Toro KH10647

Piston w/ Ring Set .020 308 (after serial #1601300002)

$

$

Not available

Toro KH10644

Piston w/ Ring Set .030 308 (before serial #1601300012)

$

$

Not available

2

Toro KH10648

Piston w/ Ring Set .030 308 (after serial #1601300002)

$

$

Not available

Toro KH10329

Piston w/Ring Set Std

$

$

Not available

Toro KH10330

Piston w/Ring Set .003

$

$

Not available

Toro KH10331

Piston w/Ring Set .010

$

$

Not available

Toro KH10332

Piston w/Ring Set .020

$

$

Not available

Toro KH10333

Piston w/Ring Set .030

$

$

Not available

Toro KH10334

Piston w/Ring Set Std. 312

$

$

Not available

Toro KH10335

Piston w/Ring Set .003 312

$

$

Not available

Toro KH10336

Piston w/Ring Set .010 312

$

$

Not available

Toro KH10337

Piston w/Ring Set .020 312

$

$

Not available

Toro KH10338

Piston w/Ring Set .030 312

$

$

Not available

Toro KH10339

Piston w/Ring Set Std. 414

$

$

Not available

Toro KH10340

Piston w/Ring Set .003 414

$

$

Not available

Toro KH10341

Piston w/Ring Set .010 414

$

$

Not available

Toro KH10342

Piston w/Ring Set .020 414

$

$

Not available

Toro KH10343

Piston w/Ring Set .030 414

$

$

Not available

Toro KH10252

Piston w/ Ring Set Std. 416 Only.

$

$

Not available

Toro KH10253

Piston w/ Ring Set .003 416 Only.

$

$

Not available

Toro KH10254

Piston w/ Ring Set .010 416 Only.

$

$

Not available

Toro KH10255

Piston w/ Ring Set .020 416 Only.

$

$

Not available

Toro KH10256

Piston w/ Ring Set .030 416 Only.

$

$

Not available

3

Toro KH10014

Piston Pin Retainer 308 Only

$

$

Not available

Toro KH10262

Piston Pin Retainer

$

$

Not available

4

Toro KH10657

Connecting Rod Std. 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10176

Connecting Rod Std. 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10634

Connecting Rod .010 308 Only (before serial #1601300012)

$

$

Not available

Toro KH10633

Connecting Rod .010 308 Only (after serial #1601300002)

$

$

Not available

Toro KH10285

Rod-Connecting Std.

$

$

Not available

Toro KH10286

Rod-Connecting .010

$

$

Not available

Toro KH10283

Connecting Rod Std. 312,414

$

$

Not available

Toro KH10284

Connecting Rod .010 312,414

$

$

Not available

Toro KH10232

Connecting Rod Std. 416 Only

$

$

Not available

Toro KH10233

Connecting Rod .010 416 Only

$

$

Not available
