21-08K804 (308-8) - Toro Lawn Tractor (1988) FRONT AXLE AND STEERING Parts Diagram

Lawn Tractor

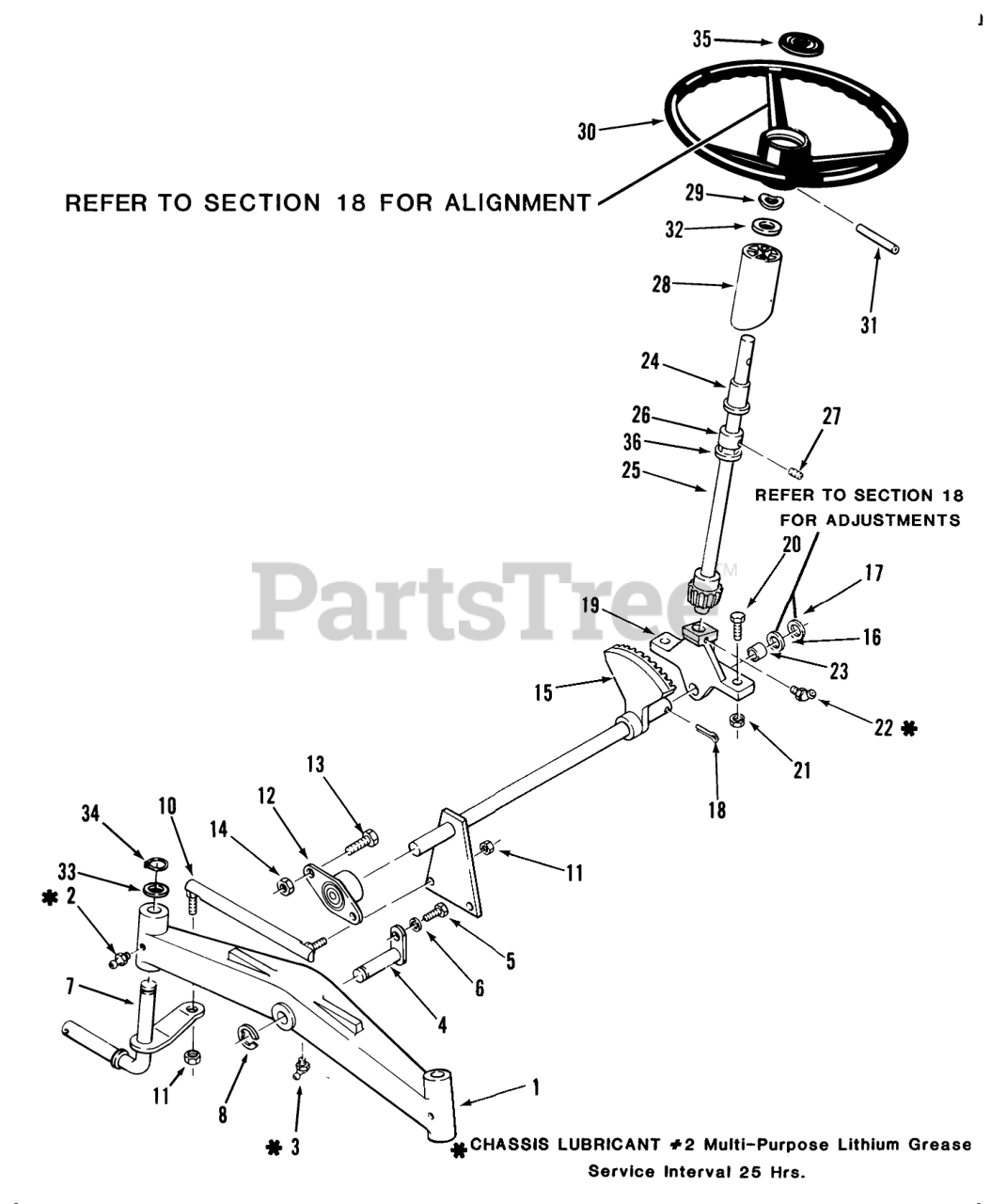

FRONT AXLE AND STEERING Parts Diagram

  • Title
1

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

6

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

7

Toro 113380

RH SPINDLE WA
(Superseded to 113380-01)

$73.99

$

In Stock, only 1 left!

0

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

$108.99

$

In Stock, only 1 left!

0

7

Toro 113379

LH SPINDLE ASM
(Superseded to 113379-01)

$73.99

$

In Stock, only 1 left!

0

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$112.99

$

Usually ships in 3-6 days

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

10

Toro 102592

Tie Rod RH
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

Toro 102593

Tie Rod LH
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

11

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

12

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

13

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

14

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

15

Toro 114198

ASS'Y-STRG SHAFT R
(Superseded to 114198-01)

$

$

Not available

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 932035

PIN-4

$

$

Not available

19

Toro 109733

Support
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

22

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

25

Toro 106177

Shaft-Upper Steering
(Superseded to 92-4987)

$

$

Not available

Toro 112162

ASSY STG SHAFT UP R

$

$

Not available

26

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

27

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

29

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

30

Toro 106055

STEERING WH 13" PLAS

$

$

Not available

Toro 102715

STEERING WH 13" SOFT

$

$

Not available

Toro 110743

Steering Wheel 416

$

$

Not available

31

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

32

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

33

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

34

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

35

Toro 102856

STEERING WHEEL INSE

$

$

Not available

36

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0
