21-08K802 (308-8) - Toro Lawn Tractor (1986) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

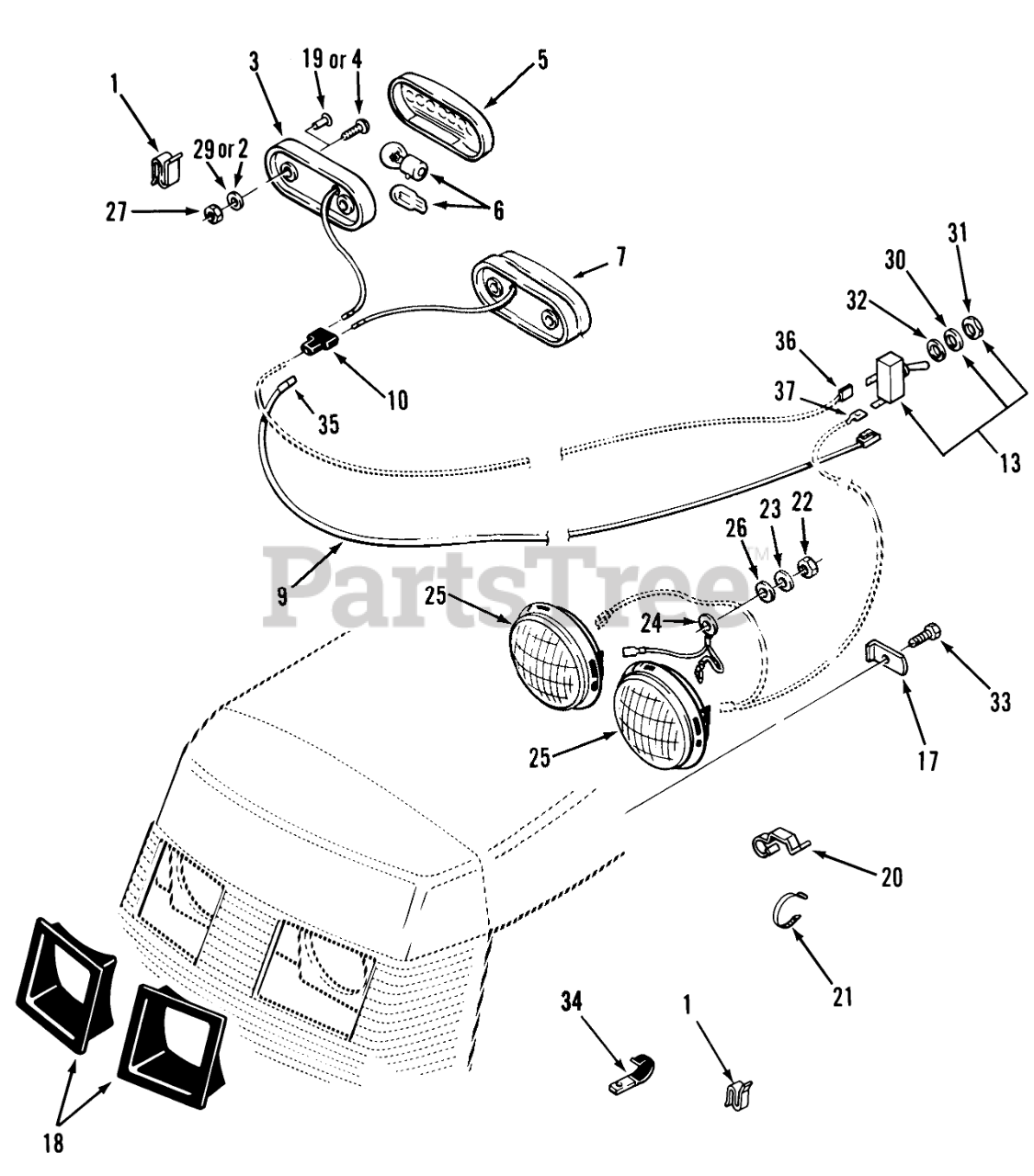

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 3023

SPEED CLIP

$

$

Not available

2

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

3

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

4

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 102884

Lens-Taillight
(Superseded to 112564)

$9.99

$

In Stock, Qty 5

0

Toro 111834

Taillight Lens 420 Only
(Superseded to 111869)

$

$

Not available

6

Toro 8043

Bulb

$

$

Currently unavailable

Toro 109045

LIGHT BULB

$

$

Not available

7

Toro 111869

Taillight Assembly (includes item 5 w/taillight base and bulb) 420-LSE Only

$

$

Not available

9

Toro 110854

WIRE TAIL LIGHT

$

$

Not available

10

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

13

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

17

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

18

Toro 109080

HEADLIGHT BEZEL ASSY.(SERVICE)

$

$

Not available

19

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

20

Toro 8519

CLIP-WIRE

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

24

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

Toro 110930

ASSY GROUND WIRE

$

$

Not available

25

Toro 110792

HEAD LAMP
(Superseded to 99-7310)

$61.99

$

Usually ships in 3-6 days

0

Toro 102881

HEADLAMP

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

27

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

29

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

30

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

31

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

32

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

35

Toro 6921

Sur-Plug

$

$

Currently unavailable

36

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

37

Toro 518104

Terminal

$

$

Currently unavailable
